Disconnect Trailing Chains
Exchange bolts and move jam nut at pull tabs
between the front and middle section (bars
/
),
and between middle and rear section (bars
/
).
Move the longer bolt and jam nut:
802-128C HHCS 1/2-13X2 GR5
803-036C NUT HEX JAM 1/2-13 PLT
from the current chain position to the tabs at
/
.
Insert bolt from below at
/
tabs and secure with
jam nut only.
Move the shorter bolt:
802-091C HHCS 1/2-13X1 1/2 GR5
from the tabs at
/
to the tabs at
/
.
Insert bolt from above and secure with lock nut:
803-019C NUT LOCK 1/2-13 PLT
Save one lock nut for chain attachment at step 7.
5.
When all harrow sections are disconnected, reposi-
tion the implement (without harrows) at the other end
of the harrows.
Reconnect Leading Chains
Place free chain bolt
through top of now-leading
tab
. Pull chain forward and secure with saved lock
nut:
803-019C NUT LOCK 1/2-13 PLT
Reconnect Trailing Chains
Refer to Figure 26
7.
Place the trailing link of the trailing chain
over the
new bar
/
bolt
. Pull chain forward and secure
with saved lock nut:
803-019C NUT LOCK 1/2-13 PLT

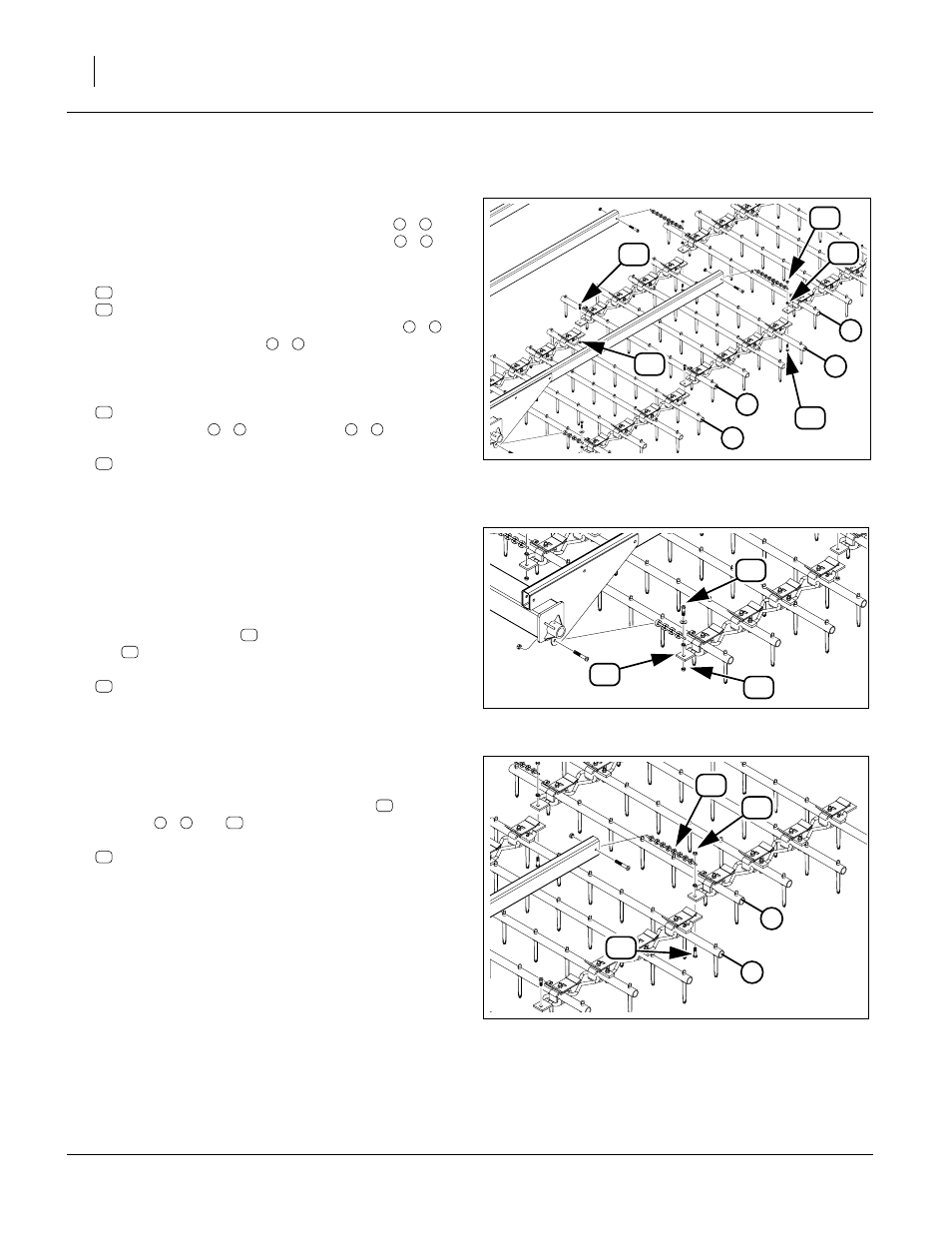

Figure 24
Disconnect Trailing Chain
31648
8
67
64
52
9
5
4
64
54
4
5
8
9
54
67
4
5
4
5
52
4
5
8
9
64
Figure 25
Reconnect Leading Chain
31648
54
64
95
54
95
64
Figure 26
Disconnect Trailing Chain
31648
8
9
64
54
39
39
8
9
54
64
