FH6636 to FH6851HD Wing Adjustment
Refer to Figure 18
On harrows 36-foot and wider, wing adjustment cables
have been installed to keep the wings in line with the
front of the center section. This is done by moving the
clevis bolt
in or out by adjusting the jam nuts . The
clevis bolt will move towards the center setion to allow
the wings to move backwards, or away from the center
section to bring the wings forward.

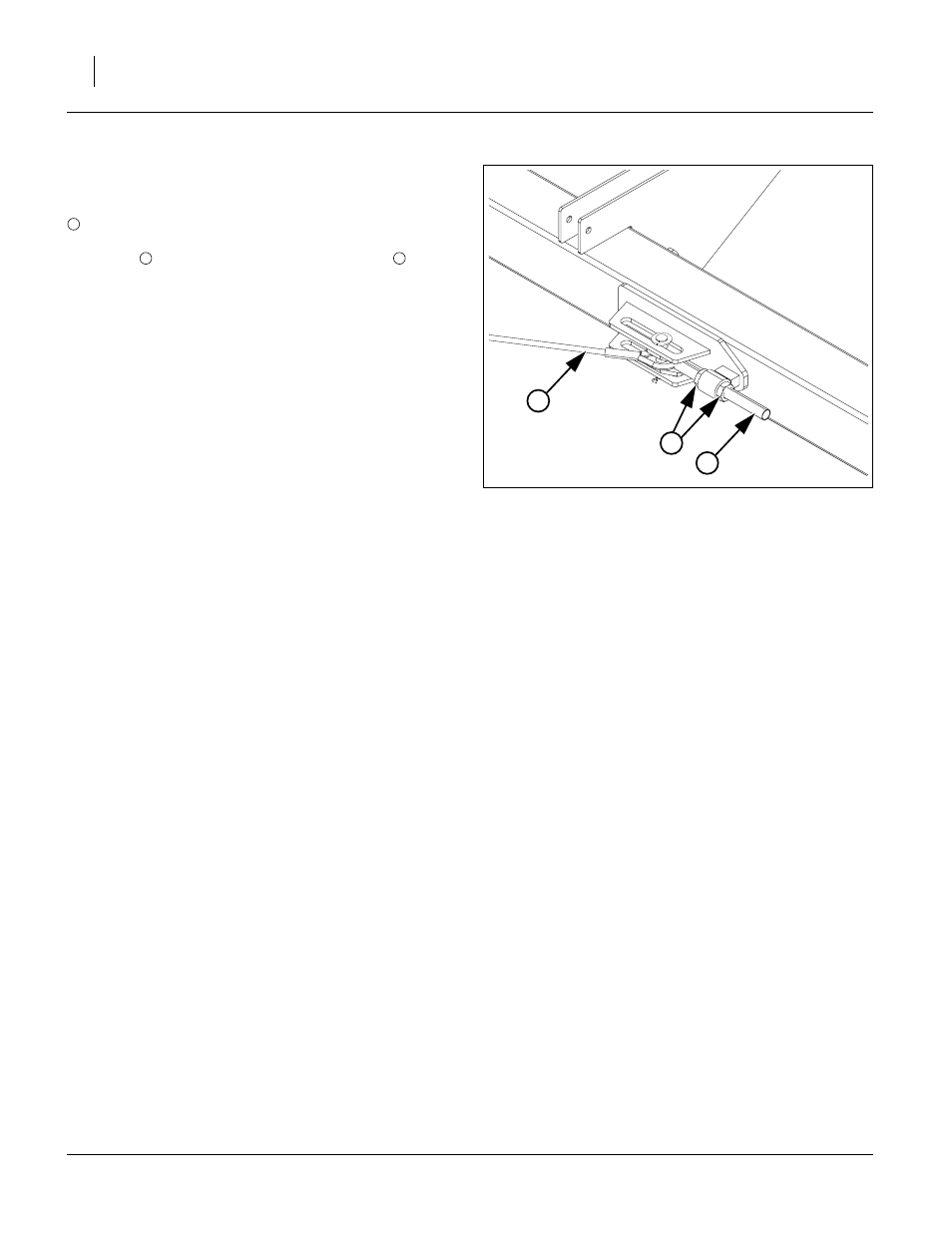

Figure 18: FH6600/6800HD
Wing Adjustments
43388
1
2
3
1
2 3
