Refer to Figure 9
9.
When the cylinders are at full extension on level
ground, the clevis pin is approximately in the center
of the slot. This allows for up and down travel over
unlevel ground.
Equipment Damage Risk:
Fully extend the cylinders. If they are at less than full exten-
sion, the cylinders or frame could be damaged.
The implement is now ready for field operations
(page 20).

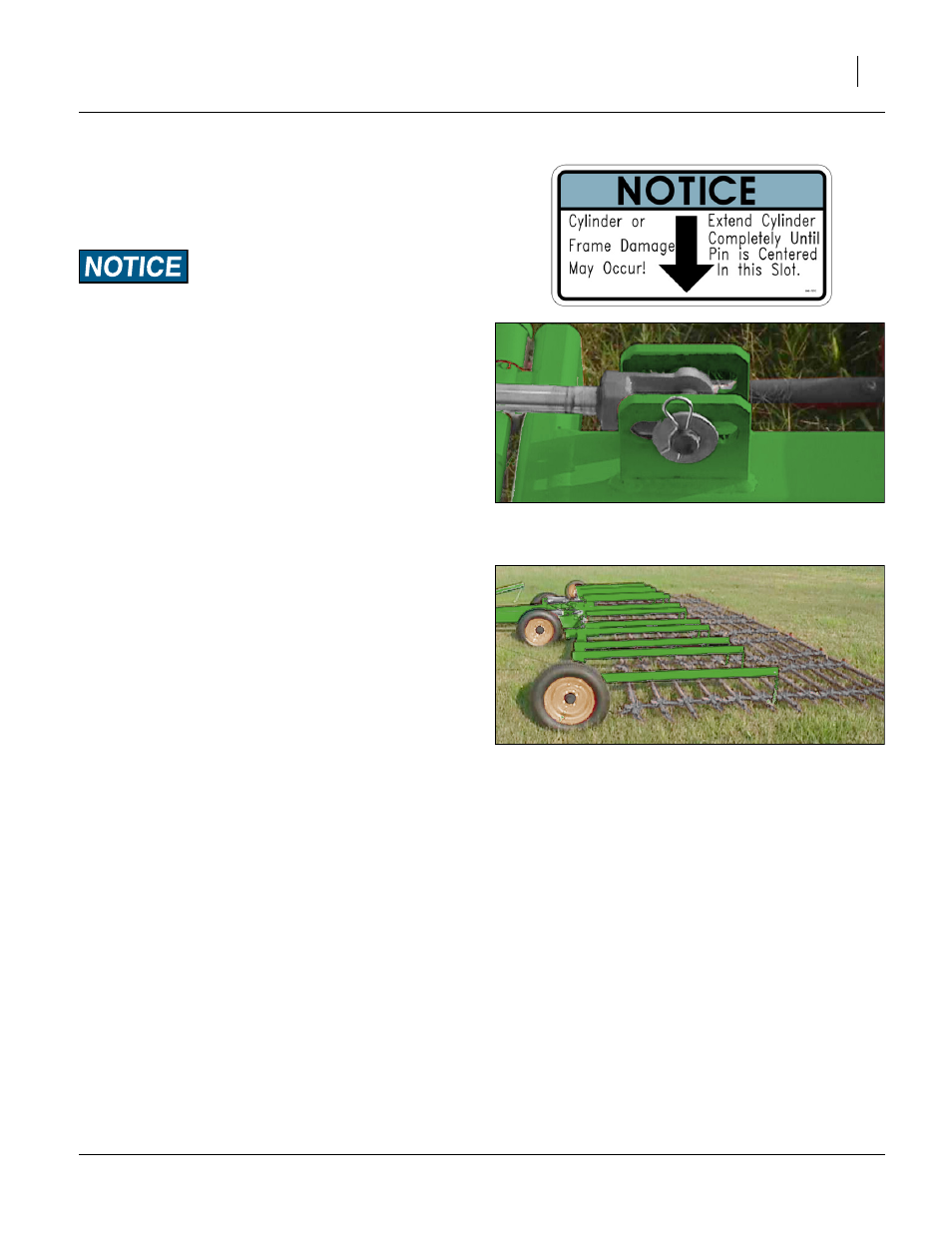

Figure 9
Cylinder at Full Extension
31669
Figure 10
Sections Lowered
31668
