Great Plains 2515P Operator Manual - Manual (Page 46)

2015P and 2515P
173-208M 4/11/2005
44
Seed-Lok Lock Up
Refer to Figure 56
Optional Seed-Lok firming wheels provide addi-
tional seed-to-soil contact. The wheels are spring
loaded and do not require adjusting. In some wet
and sticky conditions the wheels may accumulate
soil.
To lock up the firming wheels in wet conditions,
raise bean machine. Push the lock-up handle (1)
on top of the row-unit body up into the position.
Push up on the firming wheel (2) until the wheel
arm latches up.
To unlock the firming wheels, turn the lock-up
handle back to its 90-degree position.
NOTE: Side gauge wheel is removed in figure 56
for clarity.

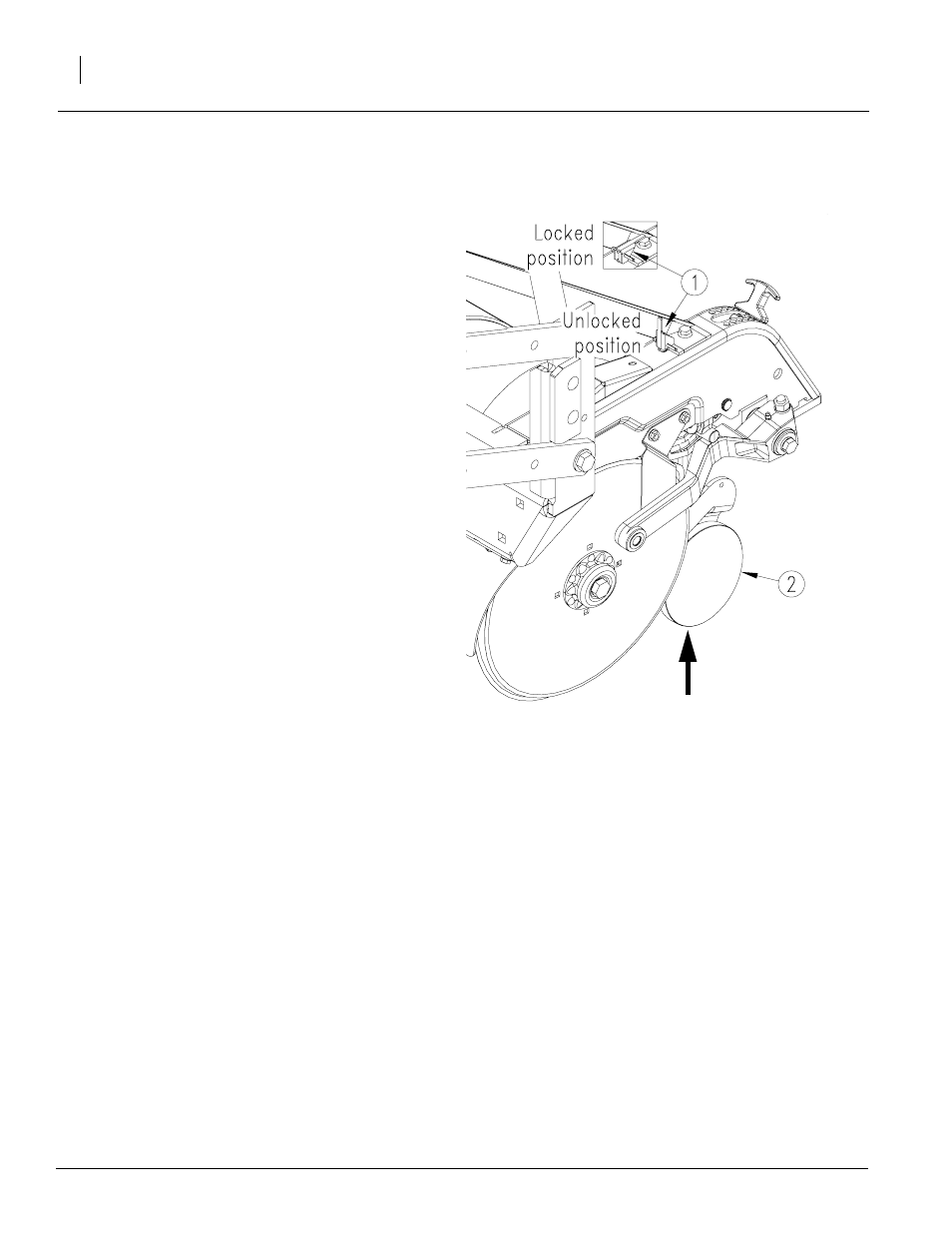

Figure 56
Seed-Lok Lock Up
18454
Push Seed-Lok
up to lock.
