Refer to Figure 3
Category II tractors, no quick hitch: Dis-
card pins provided with bean machine. Order
Great Plains kit, part number 173-170A. Use
pins and bushings as shown. See Figure 4.
Category III tractors, no quick hitch: Use
pins provided with bean machine. Use bush-
ings provided with bean machine to space
lower tractor links to the outside.
Refer to Figure 4
Category IV tractors with Cat IV-N quick
hitch: Discard upper pin provided with bean
machine. Use other pins and bushings provid-
ed with bean machine. Also, order Great
Plains kit, part number 173-171A. Use pins
and bushings as shown.
Refer to Figure 5
Category IV tractors, no quick hitch: Dis-
card upper pin provided with bean machine.
Use other pins and bushings provided with
bean machine. Also, order Great Plains kit,
part number 173-171A. Use pins and spacers
as shown.
1. Pin top three-point link to bean machine.
NOTE: If bean machine is outfitted with optional
lift assist, operate tractor and bean machine with-
out tractor top link. On quick hitches, pin quick
hitch to bean machine and remove tractor top link.
2. Slowly raise bean machine. Watch for cab in-
terference.

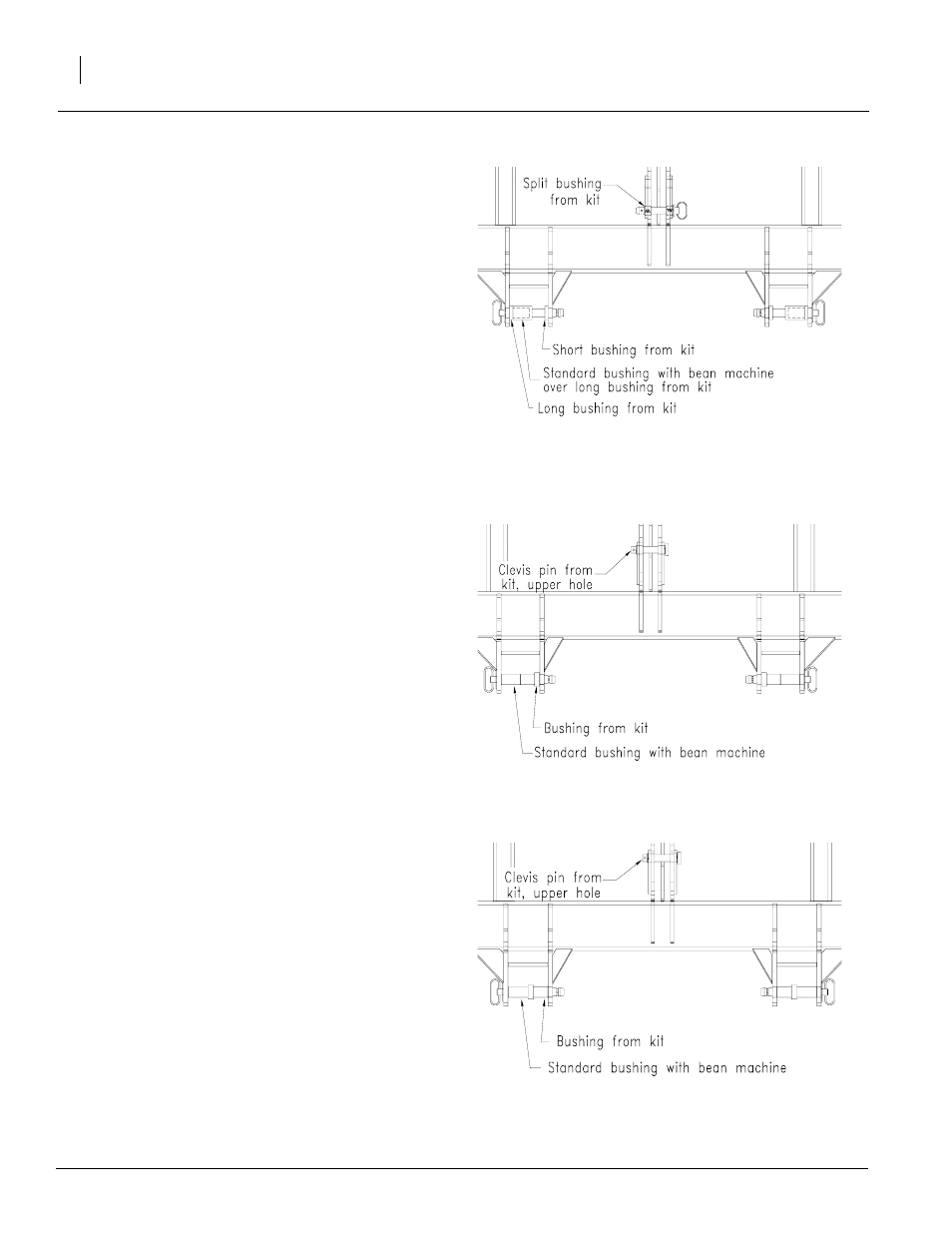

Figure 3
Category II Tractors, No Quick Hitch
17984
Figure 4
Category IV Tractors with Quick Hitch
17986
17985 Figure 5
Category IV Tractors, No Quick Hitch
