35 Adjustments
Refer to Figure 41
4. Pull seed meter wheel out about 1/4 inch, or
past the wheel drive pin, and spin backward to
clean out seeds from top pockets.
5. Remove seed meter wheel.
NOTE: With the seed meter wheel removed, you
may want to check the meter for internal damage
or trash.
Refer to Figure 42
6. Place new wheel on meter wheel shaft and
push meter slide retaining clip forward while
pushing in seed meter wheel.
Refer to Figure 43
7. Be sure slots in the center of seed meter
wheel are aligned with the wheel drive pin on
the meter shaft.

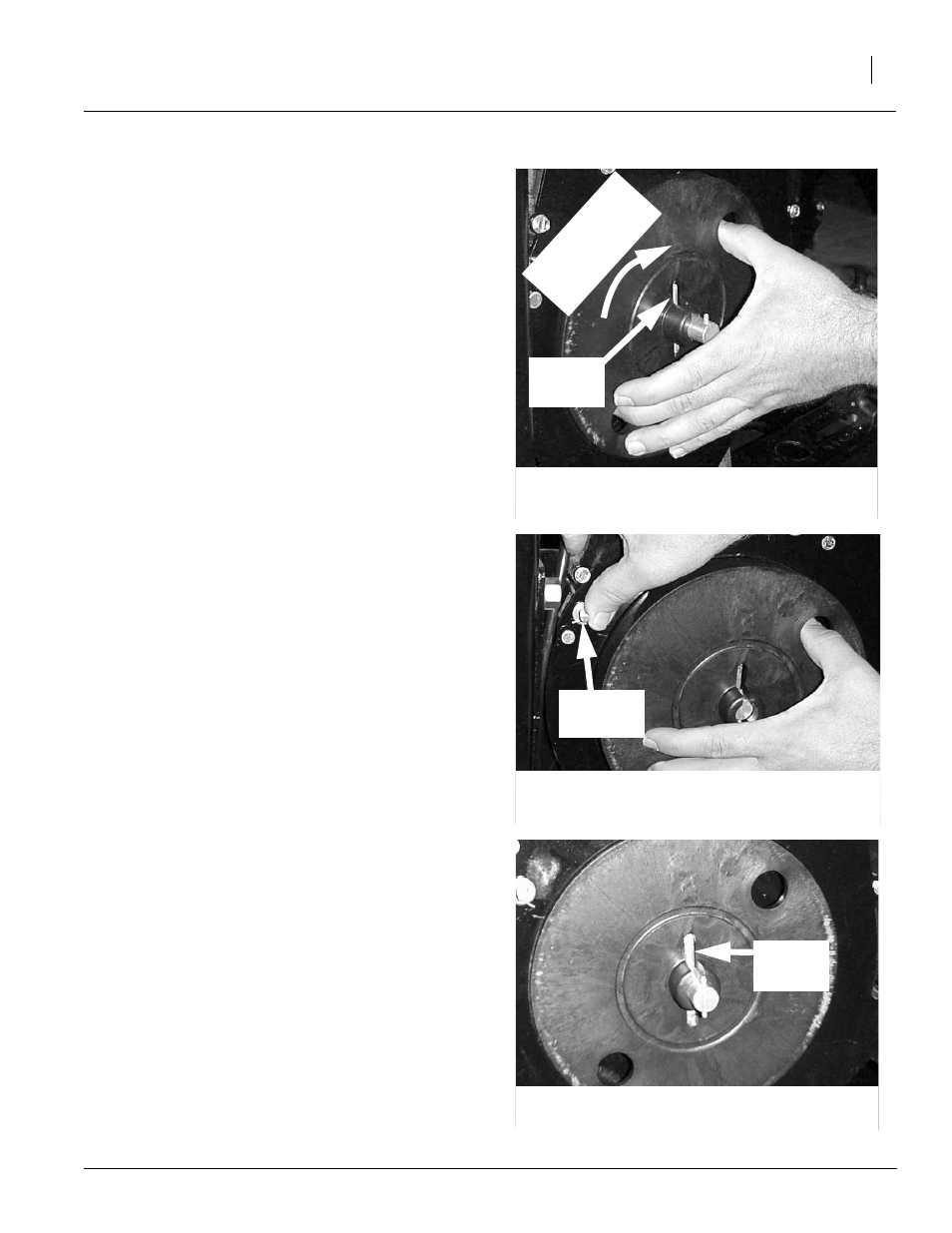

Figure 41
Remove seed meter wheel
18295
Spin wheel
backward before
removing
Wheel
drive pin
Retaining
clip
Figure 42
Place new seed meter wheel on wheel shaft
18296
Wheel
drive pin
Figure 43
Position seed meter wheel
18299
