19 Preparation and Setup
5. If using the bean machine without optional lift
assist, level bean machine with top three-
point link. Shorten or lengthen link until the
top of the bean machine box is parallel with
the ground.
6. If using bean machine with optional lift assist,
use eyebolt adjustment on lift-assist cylinders
to level bean machine.
Refer to Figure 11
With the row-unit springs at the lightest set-
ting, loosen jam nuts and shorten or lengthen
eye bolts until top of bean machine box is lev-
el and lift-assist cylinders collapse completely
when bean machine is lowered. To raise or
lower bean machine, adjust eyebolts.
17770

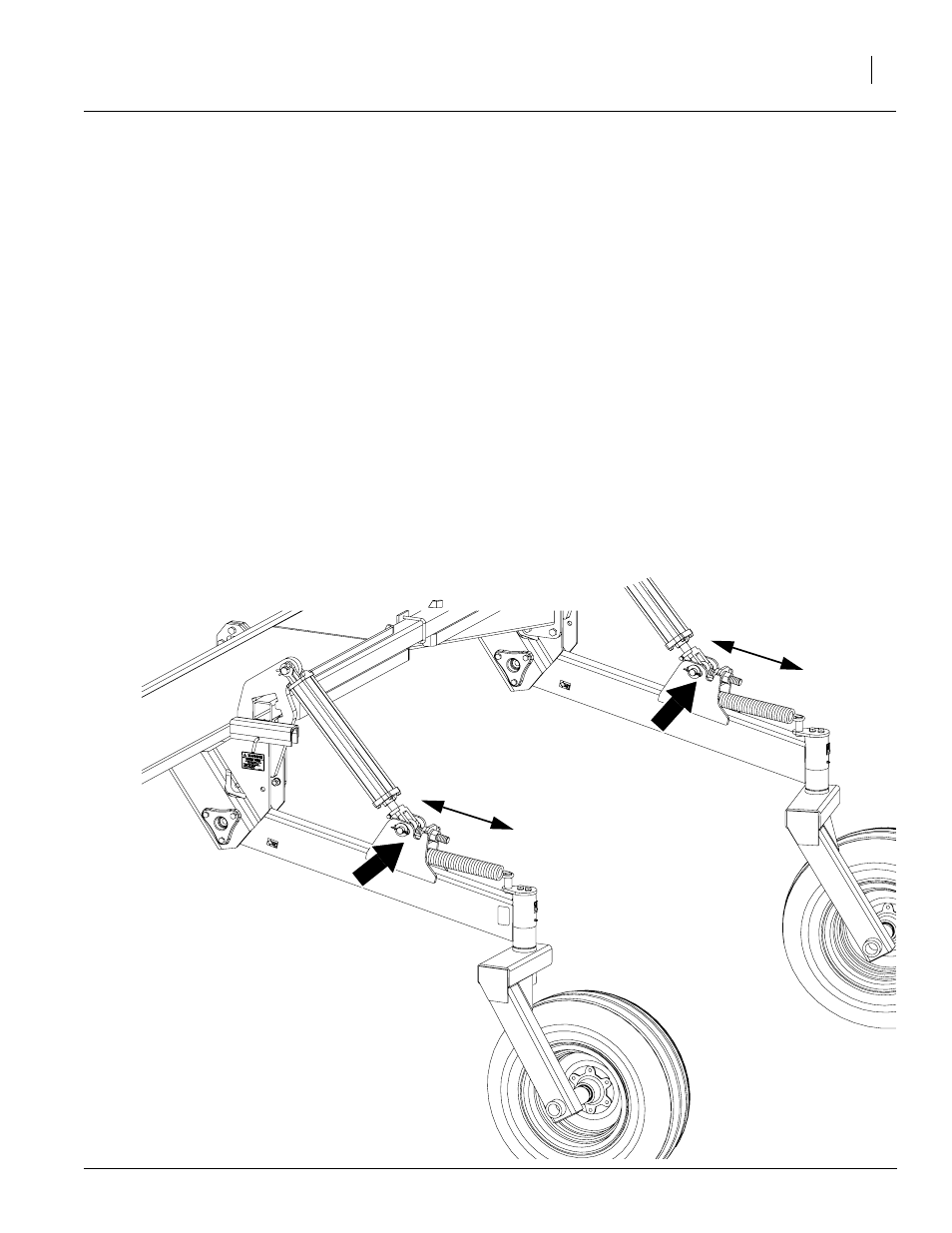

Figure 11
Eyebolt Adjustment for Lift Assist
Raise
Lower
Raise
Lower
