Older Style Hoses with Color Ties
Refer to Figure 7
Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to
the same remote valve are marked with the same color
tie.
To distinguish hoses on the same hydraulic circuit, refer
to hose label. The hose under an extended-cylinder
symbol feeds a cylinder base end. The hose under a
retracted-cylinder symbol feeds a cylinder rod end.
For hydraulic fan and drive motors, connect the hose
under the retracted cylinder symbol to the pressure side
of the motor. Connect the hose under the extended
cylinder symbol to the return side of the motor.
Color Hydraulic Function
Blue Lift
White Fold
Orange Marker (Optional)

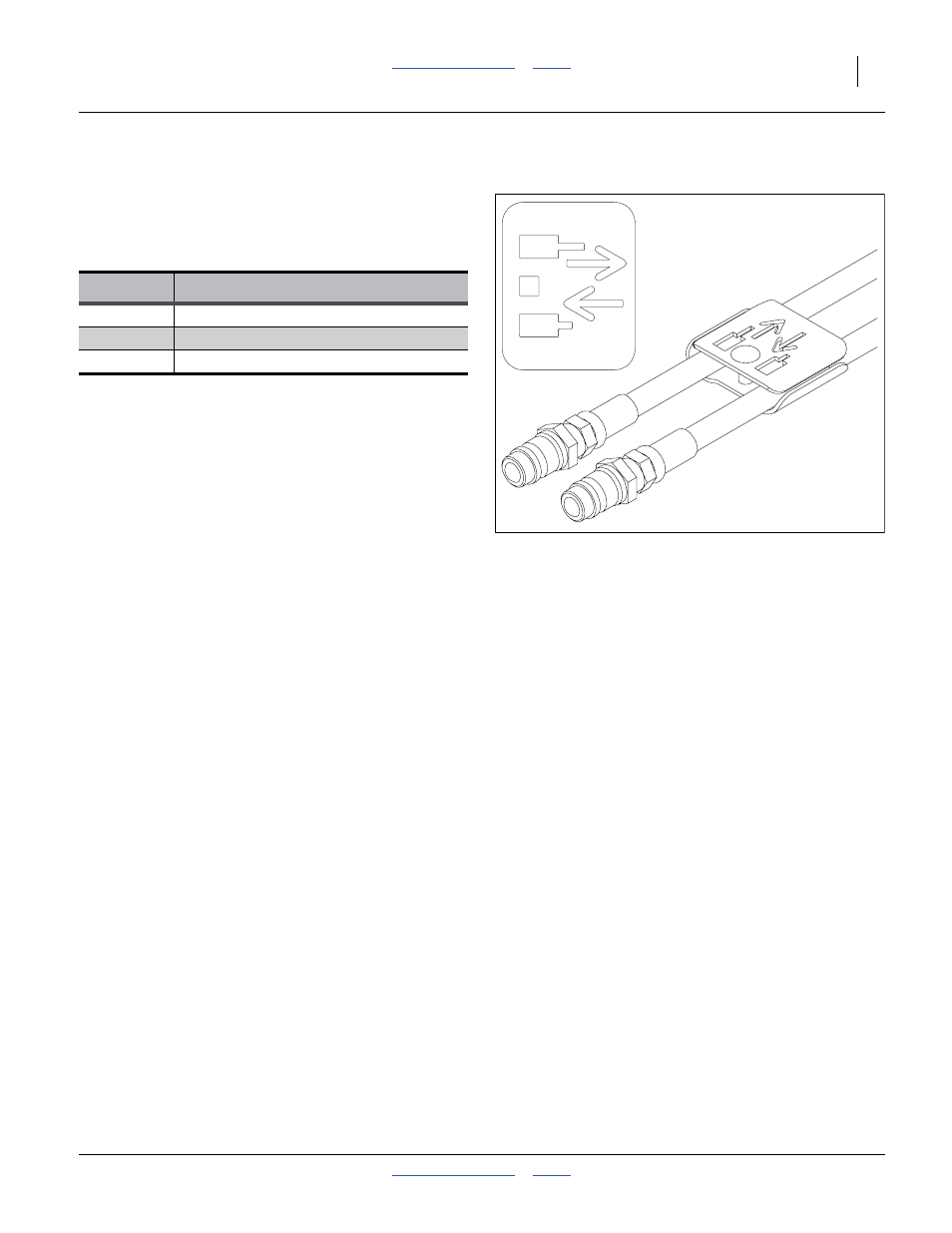

Figure 7
Older Style Hoses w/Label
27270
