Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Shut down tractor before making hydraulic connections.
Only trained personnel should work with system hydraulics.
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin causing serious injury. If an accident
occurs, seek immediate medical assistance from a physician
familiar with this type of injury.
Use paper or cardboard, NOT BODY PARTS, to check for
leaks. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems.
For ease of operation, your tractor should be equipped
with six remote hydraulic outlets (three pairs). This will
allow you to connect one pair to the drill lift circuit, one
pair to your drill fold circuit and one pair remaining for
connection of optional markers. If your tractor has only
four remote outlets (two pairs) and a marker circuit is
required, a marker sequences valve with double selector
is available through your GREAT PLAINS DEALER.
Refer to Figure 6
Great Plains hydraulic hoses have color coded handle
grips to help you hookup hoses to your tractor outlets.
Hoses that go to the same remote valve are marked with
the same color.
Color Coded Hose Handles
To distinguish hoses on the same hydraulic circuit, refer
to the symbol molded into the handle grip. Hoses with an
extended-cylinder symbol feed cylinder base ends.
Hoses with a retracted-cylinder symbol feeds cylinder
rod ends.
For hydraulic fan and drive motors, connect the hose
under the retracted cylinder symbol to the pressure side
of the motor. Connect the hose under the extended
cylinder symbol to the return side of the motor.
Color Hydraulic Function
Blue Lift
Gray Fold
Green Marker (Optional)

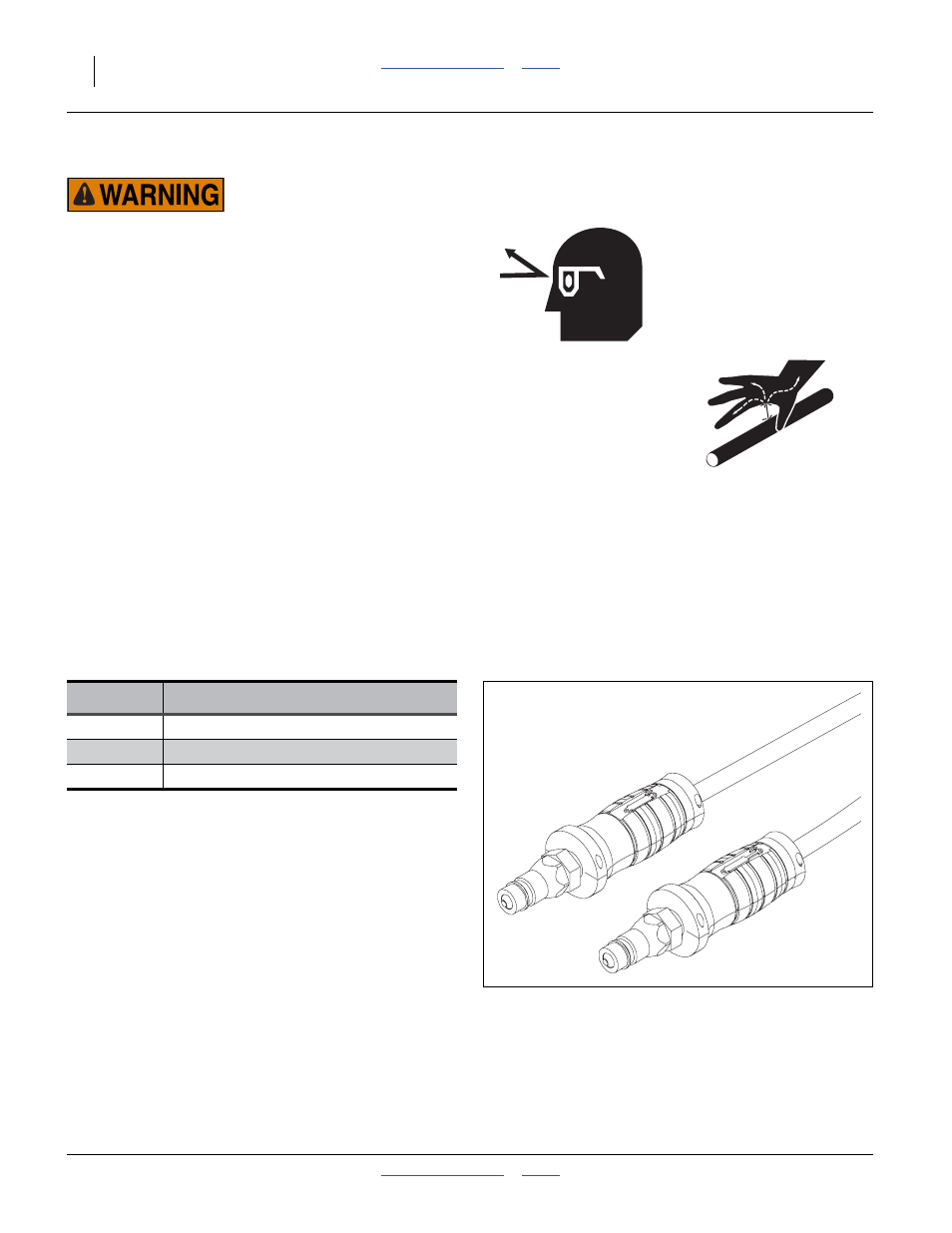

Figure 6
Color Coded Hose Handles
31733
