Introduction
Great Plains Manufacturing wants you to be satisfied
with any new machine delivered by the Great Plains
Trucking network. To ease the assembly task and pro-
duce a properly working machine, read this entire man-
ual before assembling or setting up new equipment.
Document Family
195-067M Owner’s Manual
195-067P 3S-4000HD Parts Manual
195-067B Seed Rate Manual
Description of Unit
The 3S-4000HD is a towed seeding implement. This
three section drill has a working width of 40 feet (12.2m).
The drill has straight arm, double disk heavy duty open-
ers. The opener disks make a seed bed, and seed tubes
mounted between the disks place seed in the furrow.
Press wheels following the opener disks close the furrow
and gauge opener seeding depth. A T-handle on the
opener body is for seeding depth adjustments. Seeding
rates are adjustable with the seed rate adjustment han-
dle and sprocket changes.
The 3S-4000HD features active hydraulic down pres-
sure on the opener frames. When used on a tractor with
closed-center hydraulics, constant down pressure
ensures even opener penetration in uneven ground.
Hydraulic down pressure is adjustable at a single point.
Intended Usage
Use this implement to seed production-agriculture crops
in conventional or minimum tillage applications.
Models Covered
3S-4000HD:
3S-4000HD-4810 (10in / 24cm)
3S-4000HD-6375 (7.5in / 19cm)
3S-4000HD-7806 (6in / 15cm)
3S-4000HDF-4810 (10in / 24cm)
3S-4000HDF-6375 (7.5in / 19cm)
3S-4000HDF-7806 (6in / 15cm)

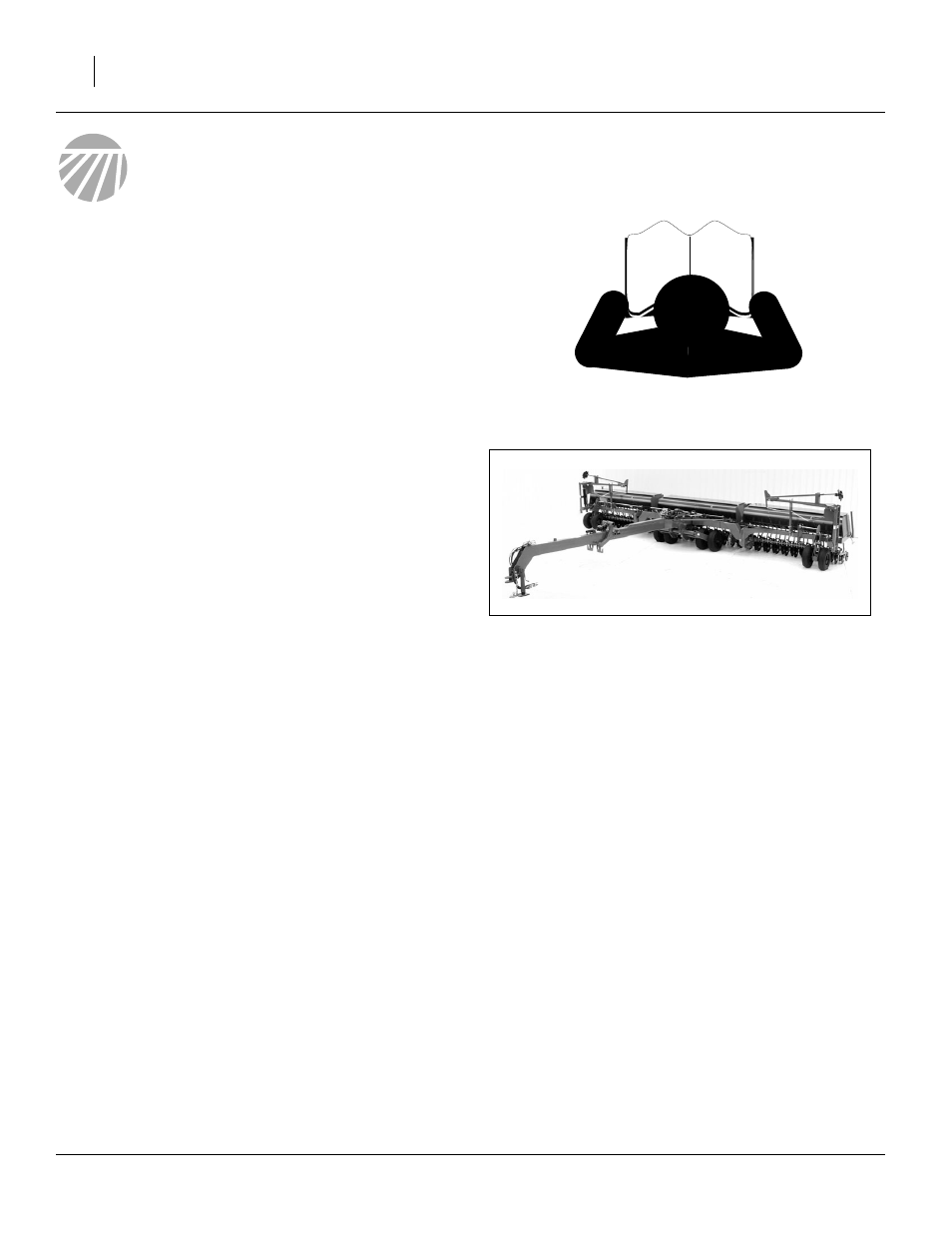

Figure 1
3S-4000HD Drill
18843
