30 3S-4000HD
195-067Q 12/10/2009

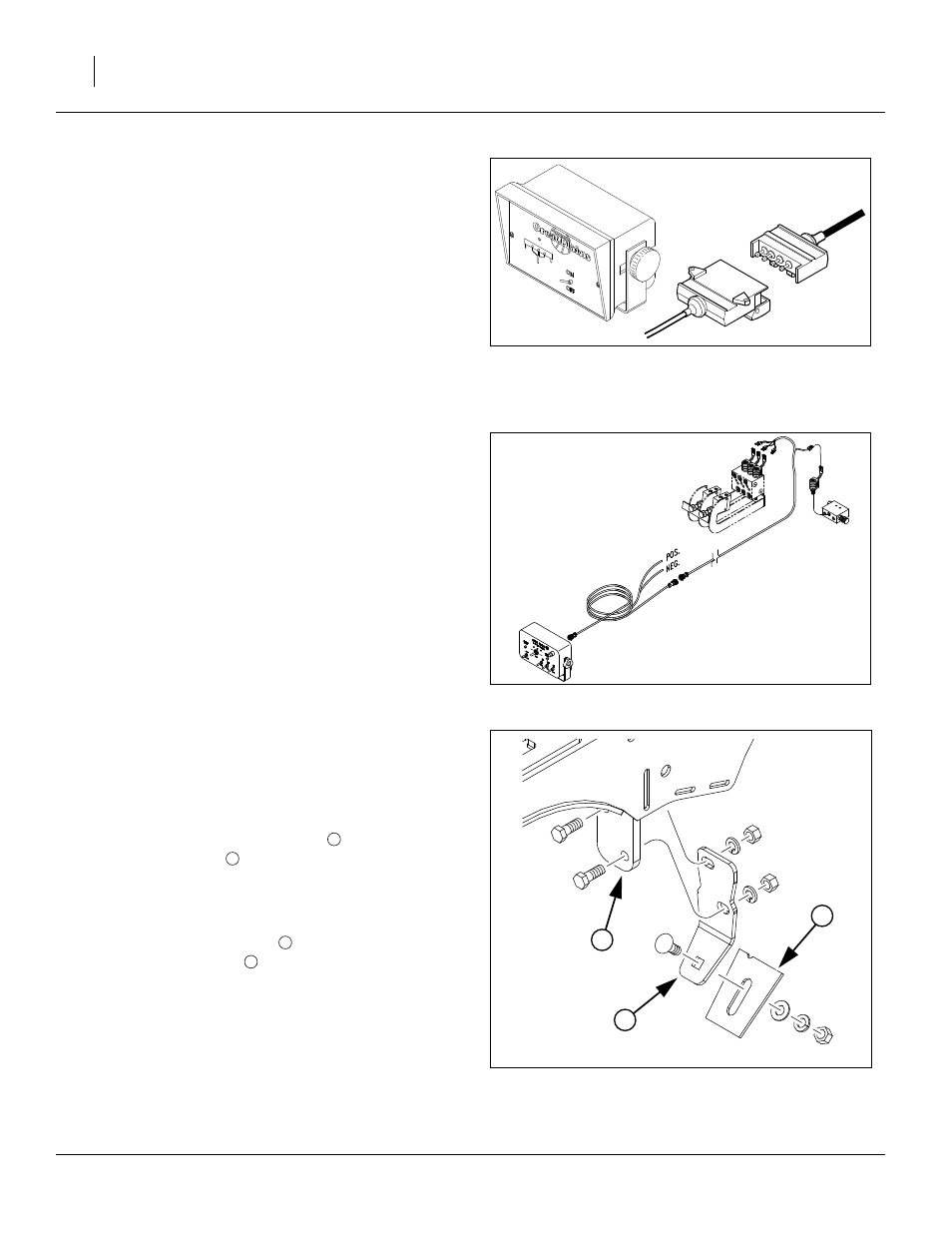

Shaft Monitor
Refer to Figure 40
If the drill was ordered with the optional shaft monitor,
install the sensors and leads per the included installation
manual.
If the primary tractor is available, also install the display
console in the cab.
Point Row Controller
If the drill was ordered with the Point Row option, the
solenoid valves, hydraulic lines and control leads were
installed on the drill at the factory.
If the primary tractor is available, also install the display
console in the cab.
Scraper Installation
1. Remove one or both disk blades to gain safe access
to the mount. Note the position of bushings and spac-
ers for correct re-assembly.
Refer to Figure 41
2.
Position the inside scraper mount to the rear of the
seed firmer mount on the opener weldment.
Secure it with two HHCS 3 ⁄
8
-16x1in hex head bolts,
lock washers and nuts. Insert the bolts from the front.
3. Position the scraper blade below and behind the
inside scraper mount , with the notch on top to
machine right.
Secure it loosely with one RHSNB 3 ⁄
8
-16x1 round
head square neck bolt, flat washer, lock washer and
nut.
4. Re-mount the removed disk blade.
Figure 40
Shaft Monitor
18943
26468
22962
Figure 41
Scraper Installation
26460
2
1
3
1
2
3
1
