Hitch Height
Refer to Figure 19 and Figure 20
1.
To adjust the drill hitch to match your tractor-drawbar
height, mount tongue jack on side of tongue.
2. Use jack to raise drill tongue so lowest hitch hole is
18 inches (45.7cm) above ground level with drill low-
ered to FIELD position.
3. Bolt drill hitch onto drill tongue to match your tractor-
drawbar height. You can turn the hitch over for a total
of six different hitch heights. Always have two (2)
bolts in two holes of both tongue and hitch.
Note: When hitching drill to a different tractor, check for a
difference in drawbar heights. If heights are differ-
ent, readjust hitch height accordingly.
4. If this tractor will be used to move the drill, securely
attach safety chain to an anchor on the tractor. Check
Operator’s manual and ensure that tractor is capable
of pulling the drill.

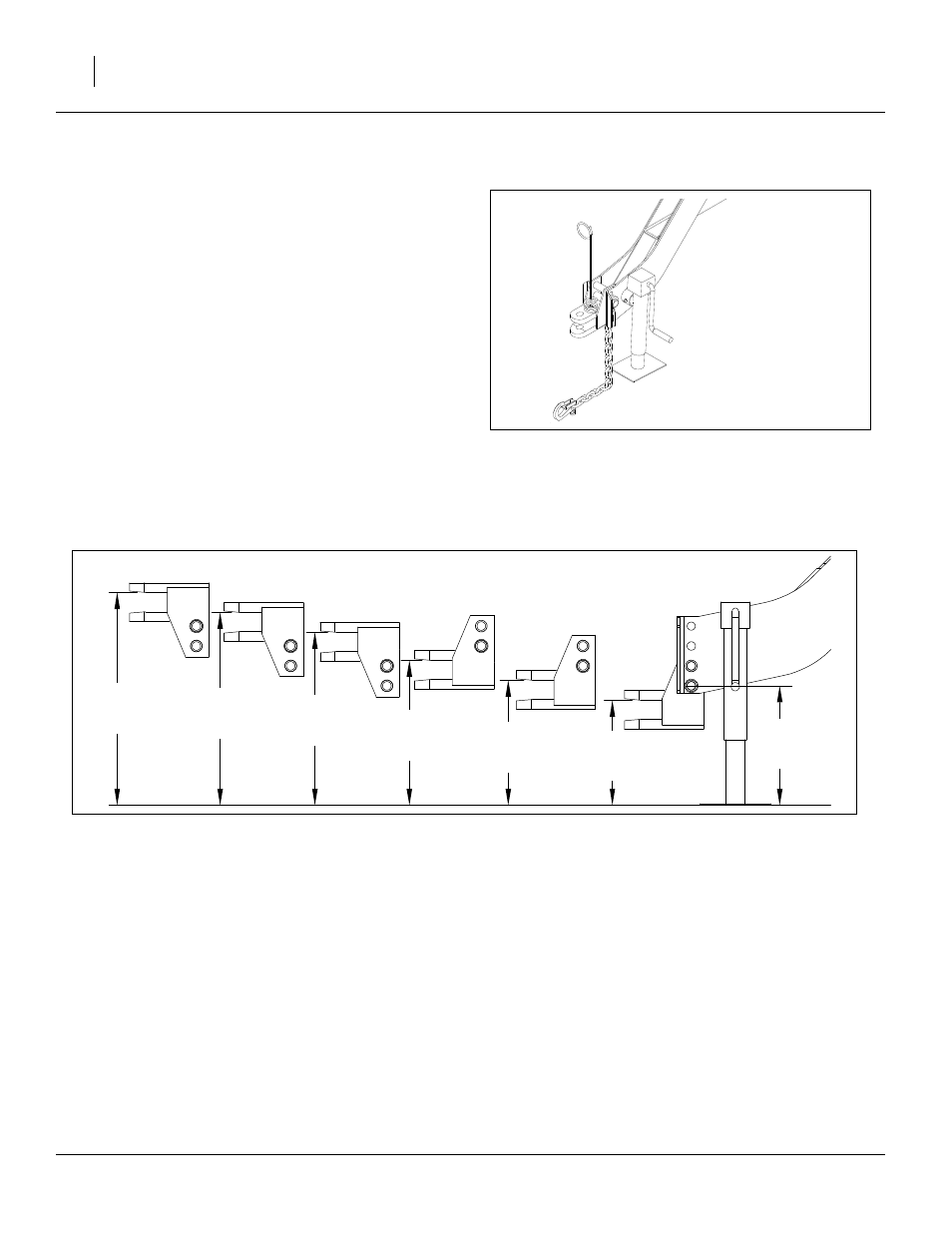

Figure 19
Jack in Lifting Location
18941
Figure 20
Heights for Various Hitch Positions - Correct Tongue Height
18956
32.0in
81.3cm
29.0in
73.7cm
26.0in
66.0cm
21.5in
54.6cm
18.5in
47.0cm
15.5in
39.4cm
18.0in
45.7cm
