Assembly 13
12/10/2009 195-067Q
Two Outlet Kit
If the Two-Outlet Hydraulic Kit was ordered, install it now
(before the markers, as this kit contains items needed
when both 2-outlet and markers are installed).
Installation instructions are provided in a separate man-
ual with the Two-Outlet kit.
Markers
Markers are not factory-installed, due to vertical clear-
ance requirements during shipment. An installation
manual is provided, but does not include details for
installation where a Two-Outlet Kit is also present. If a
Two-Outlet kit is installed, observe these tips:
• The Marker/Fold valve mounts on the second valve
bracket.
• Use the longer bolts in the Two-Outlet kit to stack the
hose clamps. Place the clamp hold-down on the top
clamp.
• For consistency of operation, be sure to plumb the
Fold circuit to the forward ports of the Marker/Fold
valve, and plumb the Marker circuits to the rear.
Handle forward is then Transport operations (Fold),
and handle back is then Field operations (Marker).
Consult the drill Operator’s manual for setting initial
marker extension length, and the latest information on
chain length adjustment.

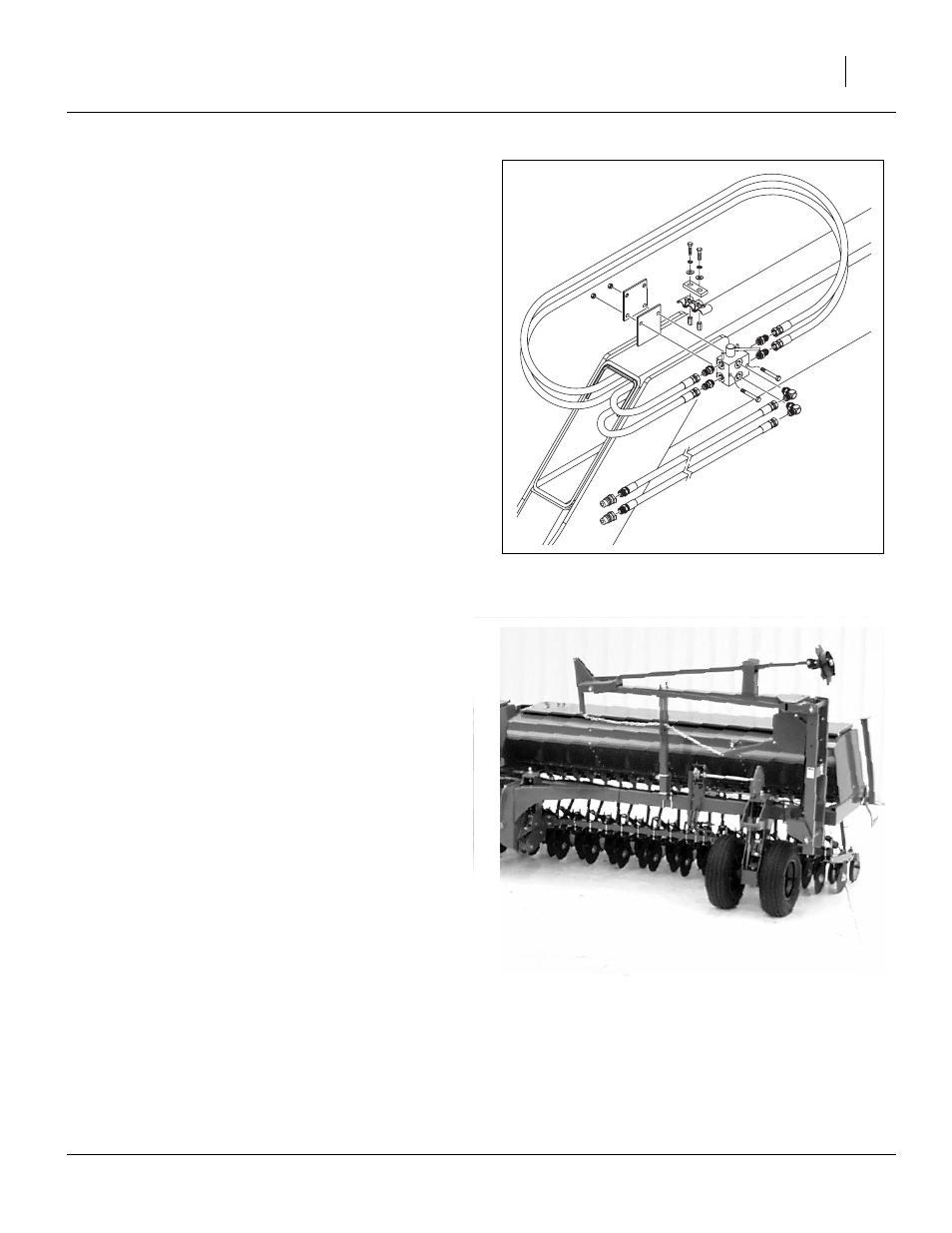

Figure 14
Two-Outlet Selector
27020
Figure 15
Marker Installed
18843
