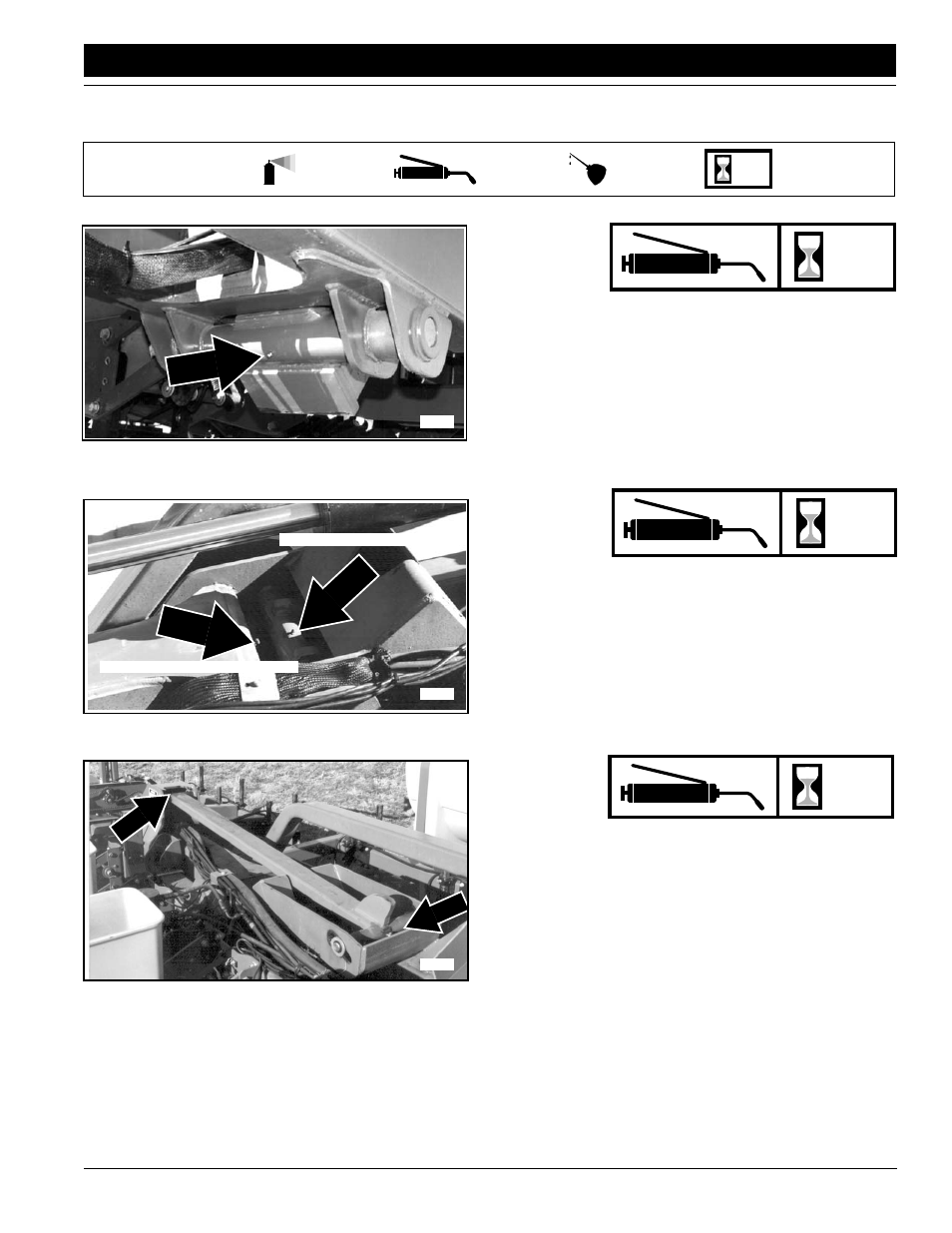

Section 5 Maintenance and Lubrication
4/12/05 PT1230 Pull-Type Folding Planter 401-069M-B
Great Plains Mfg., Inc.
Frame Arm Pivot–Wing End
Type of Lubrication: NLGI grade 2 or 3 grease lubricant.
Quantity: Until grease begins to emerge.
50
15867
Float Link Pivot
Frame Arm Pivot at Frame
Cylinder Float Link Pivot
Frame Arm Pivot–Frame End
Type of Lubrication: NLGI grade 2 or 3 grease lubricant.
Quantity: Until grease begins to emerge.
50
15886
50
Multipurpose
spray lube Multipurpose
grease lube
Multipurpose
oil lube Intervals at which
lubrication is required
Lubrication
Legend
Lubrication
Fold Control Link Pivots
Grease zerks on each end of links–four zerks total.
Type of Lubrication: NLGI grade 2 or 3 grease lubricant.
Quantity: Until grease begins to emerge.
50
16891
