Section 5 Maintenance and Lubrication

PT1230 Pull-Type Folding Planter 401-069M-B

4/12/05

Great Plains Mfg., Inc.

Chain Tension
As the chains wear and stretch, you may need to re-
move links for proper chain length and tension. Check
and replace bushings on idlers. For the correct opera-
tion of the planter check all chain routings. Refer to the

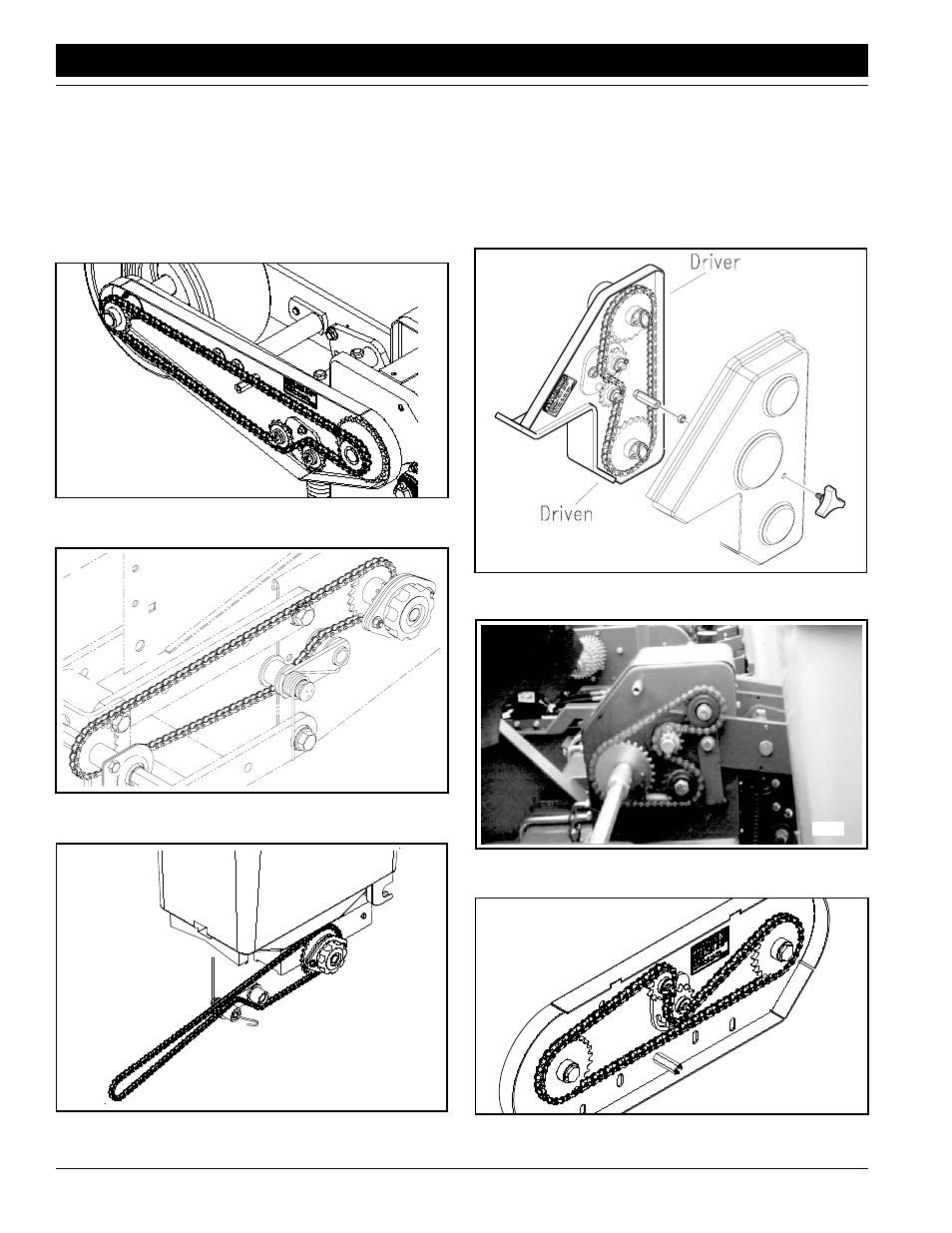

illustrations on this page for proper chain routings.

16864

Granular Chemical Drive Chain Routing

Transmission Chain Routing

15178

Meter Drive Chain Routing

16871

Reverser Drive Chain Routing

Drive Wheel Chain Routing

15808

Liquid Fertilizer Chain Routing

16861

16872

16863
