6 Ladder Kit Great Plains Manufacturing, Inc.
195-066M 09/10/2007
Parts Lists
New Parts: Kit 195-065A
Your kit includes the parts illustrated above and listed
below. The part call-out numbers in this list match all Fig-
ures in the installation instructions. Left- and right-hand kit parts are identical except for:
top mount: Left:
, Right: .

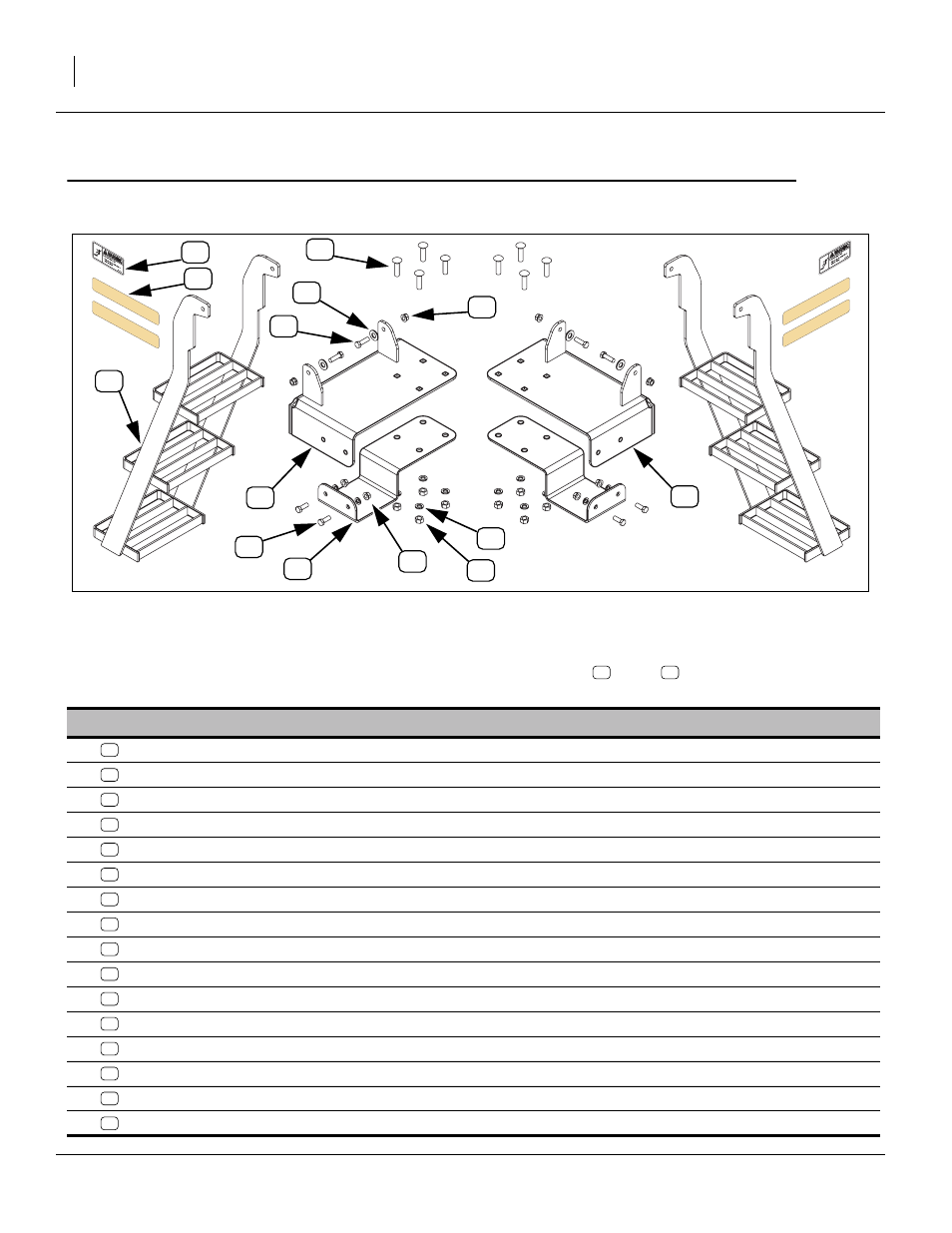

Figure 7
New Parts
27034
12
13 14
15
16
17
18
19
20
21
23
24
26
25
13 14
Callout Quantity Part Number Part Description
1 195-066M This manual (not shown above)
2 195-062H LADDER WELDMENT 3-STEP NARROW
1 195-063H LADDER MOUNT TOP WELDMENT LH
1 195-064H LADDER MOUNT TOP WELDMENT RH
2 195-340D LADDER MOUNT BOTTOM PLATE
4 802-017C HHCS 3/8-16X1 GR5
8 802-030C RHSNB 7/16-14X1 3/4 GR5
4 802-079C HHCS 3/8-16X1 1/4 GR5
8 803-015C NUT HEX 7/16-14 PLT
4 803-068C NUT HEX FLANGE 3/8-16 PLT
4 803-209C NUT FLANGE LOCK 3/8-16 PLT
4 804-013C WASHER LOCK SPRING 3/8 PLT
8 804-014C WASHER LOCK 7/16 PLT
4 804-016C WASHER FLAT 1/2 SAE PLT
2 838-102C DECAL WARNING FALLING HAZARD
4 838-265C DECAL REFLECTOR AMBER 1 1/2X9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
