Install Ladders
The ladders mount between the lugs of the upper
mounts. Flat washers are placed outside the ladder side
frames and inside the lugs (between ladder side frame
and mount). Bolt heads are to the inside, to minimize
obstructions to foot movement during climbing.
Refer to Figure 5
(which shows only the left side assembly,
on a drill without Small Seeds)
Start with the left walkboard.
19. Select one:
195-062H LADDER WELDMENT 3-STEP NARROW
20. Lay the ladder on the walkboard with the swing
holes up and near the top mount lug holes. Align
the holes in the ladder in between the holes in the
lugs.
21. Select two sets of:
802-079C HHCS 3/8-16X1 1/4 GR5
804-016C WASHER FLAT 1/2 SAE PLT
803-209C NUT FLANGE LOCK 3/8-16 PLT
22. Insert a bolt through (in this order):
• the ladder side plate,
• a washer , and
• the mount lug.
Secure with lock nut .
23. Repeat step 19 through step 22 for right wing walk-
board.
24. Swing both ladders down to check operation and
position for decal placement.

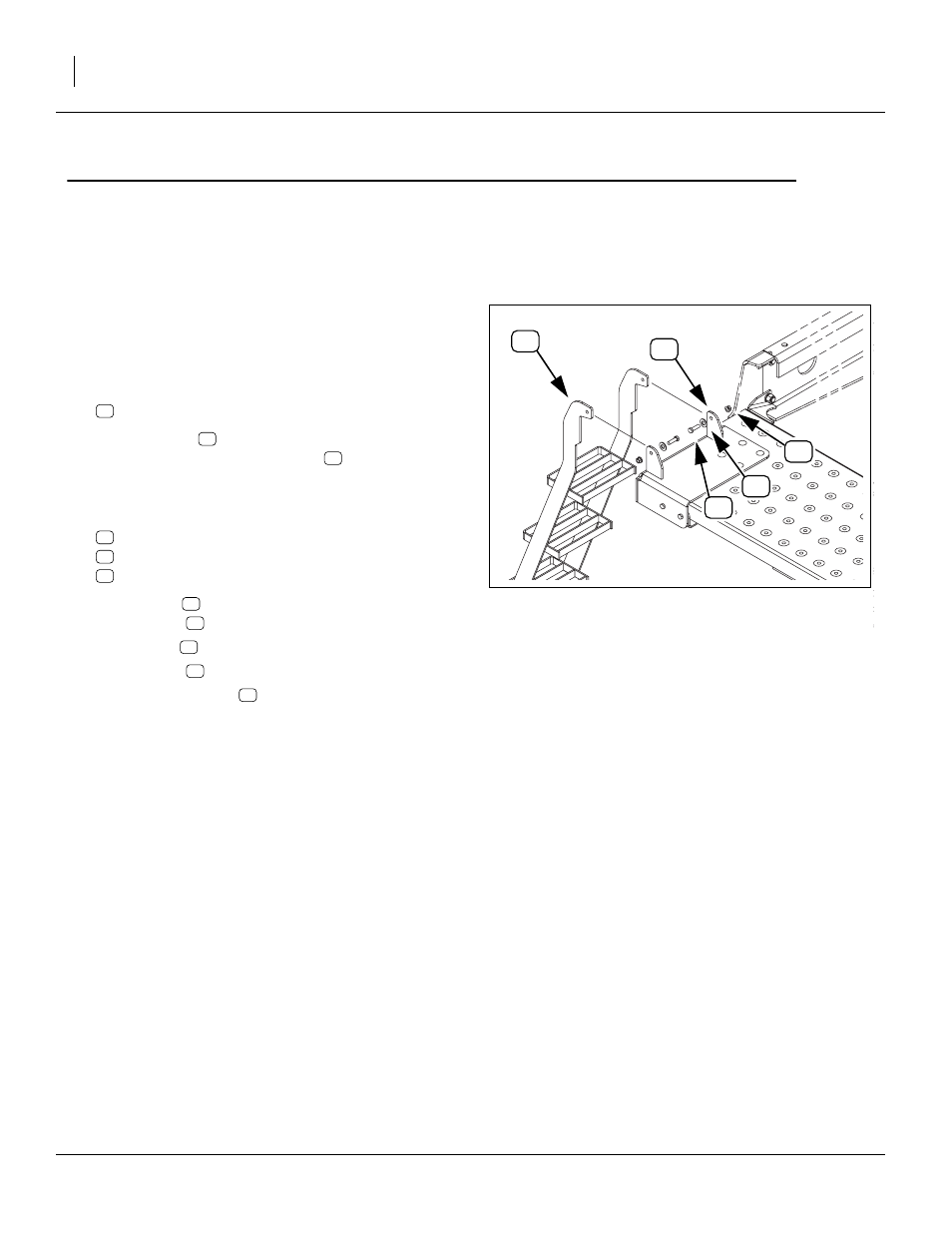

Figure 5
Ladder Installation
27037
18
21
24
12
13
12
12
13
18
24
21
18
12
24
13
21
