Install Reflectors and Decals

09/10/2007

195-066M

Install Reflectors and Decals

The new ladder top mount may obscure existing decals
and reflectors on the walkboard. The ladder kit includes
replacements to apply as needed.

To install new reflectors and decals:

• Clean and dry the area where the reflector or decal

is to be placed.

• Peel backing from reflector or decal. Press firmly

on surface, being careful not to cause air bubbles
under reflector or decal.

Refer to Figure 6
Start on the left walkboard, outer end:

25. Select one:

Place the reflector decal on the outside of the ladder
mount

, between the ladder side plates

won’t be damaged by ladder operation)

26. Select one:

Place the reflector decal on the rear and corner of the
ladder mount

that side of the mount. Wrap the excess around the
corner.

27. Select one:

Place the 838-102C Danger decal

forward of and

near the top of the ladder, where it is visible to climb-
ers.

board ladder.

Operations

Swing ladders up and onto walkboards during:

• folding and unfolding,

• transport,

• field operations,

• unattended parking, and;

• storage.

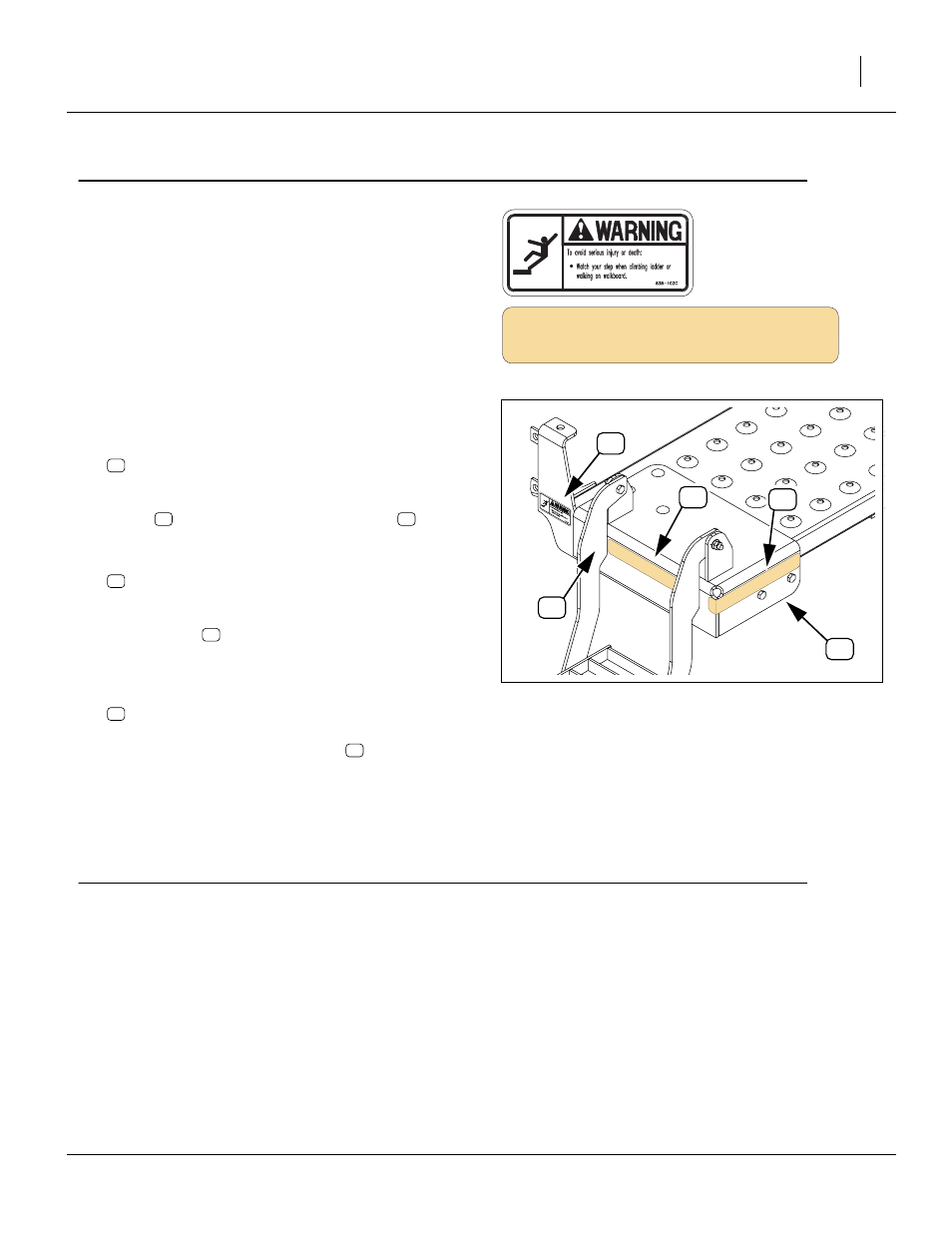

Figure 6

Replacement Decals

27016
