18 1200-1500TM Great Plains Manufacturing, Inc.
586-535Q-ENG 12/12/2013

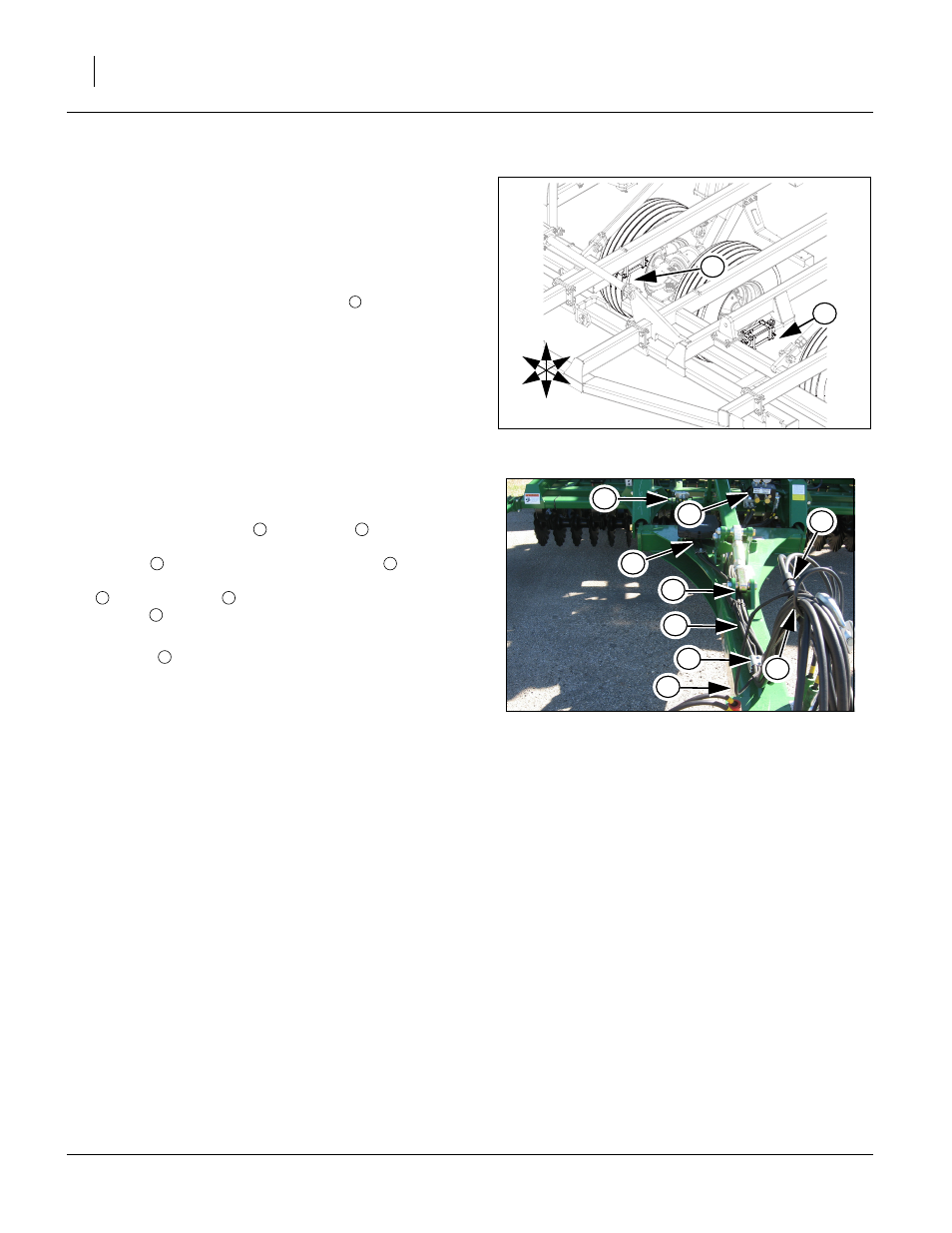

Gang Cylinder Purging
Refer to Figure 15
Note: Refer to hydraulic layouts in “Appendix” section of this
manual for proper gang hose routing on center and
wings. See “Hydraulic Connector ID” on page 25 for
proper fitting installation. See “Hose Clamp Assembly”
on page 12 for proper clamping of hoses.
60. Retract and extend the gang system (Red Handles)
several times to purge air from system. Watch for leaks
and retighten fittings if necessary.
Hose Routing Hitch
Refer to Figure 16
61. Route hydraulic hoses
from valves , on center
frame, gang hoses and light harness, under manual pak
bracket
, under front of hitch turnbuckle along all
hose clamp blocks and through spring hose holder loop
to front of hitch as shown. Secure hoses with hose
clamps , 5/16 hex bolts and 5/16 lock washers.
Note: Be sure all hose clamp bolts are tight. Attach hose
wraps as needed. Check that all hoses on machine
are fastened properly and they won’t get pinched at
hinge points or drag on ground. Check all connections
again for leaks.
1
U
D
F
B
L
R
Figure 15
Gang Cylinder Purging
42978
1
1
Figure 16
Hose Routing Hitch
42945
5
7
2
4
3
2
1
6
8
1 2
3 4
5 6
7
8
