8 2014+ Single Fold Marker Front Parts Great Plains Mfg., Inc.
113-921M Front Parts 2013-10-16
Install Cylinder Fittings
Refer to Figure 10
If elbows are pre-installed on the cylinders
, skip to
step 35.
34. Select four new:
811-065C EL 9/16MJIC 9/16MORB
Loosely install the MORB ends of the elbows at the
cylinder ports.
35. If the elbows were pre-installed, loosen the jam
nuts.
36. Adjust the orientation of the elbows so that the
MJIC inlets face toward each other and toward
implement center at roughly a 45
° angle to the
cylinder body. Tighten the jam nuts to ORB torque
spec.
Prepare Supply Hoses
Refer to Figure 11
37. Select two sets new:
851-105C HH3/8R2 100 9/16FJIC 3/4MORB
811-394C CP 3/4FORB MALE QD POPPET TYPE
Install one coupler on each hose .
38. If orange cable ties are available, secure one tie to
each hose end near the FJIC fitting. It is not
necessary to separately identify one hose from the
other.
Prepare Cylinder Hoses
39. Select two (of four):
851-106C HH3/8R2 154 9/16FJIC
If orange ties are available, secure one tie to each
hose end near the FJIC fitting. If orange ties are not
available, use tape, tags or indelible marking pen to
identify hose ends or connectors as “R”. These are
the rod-end hoses.

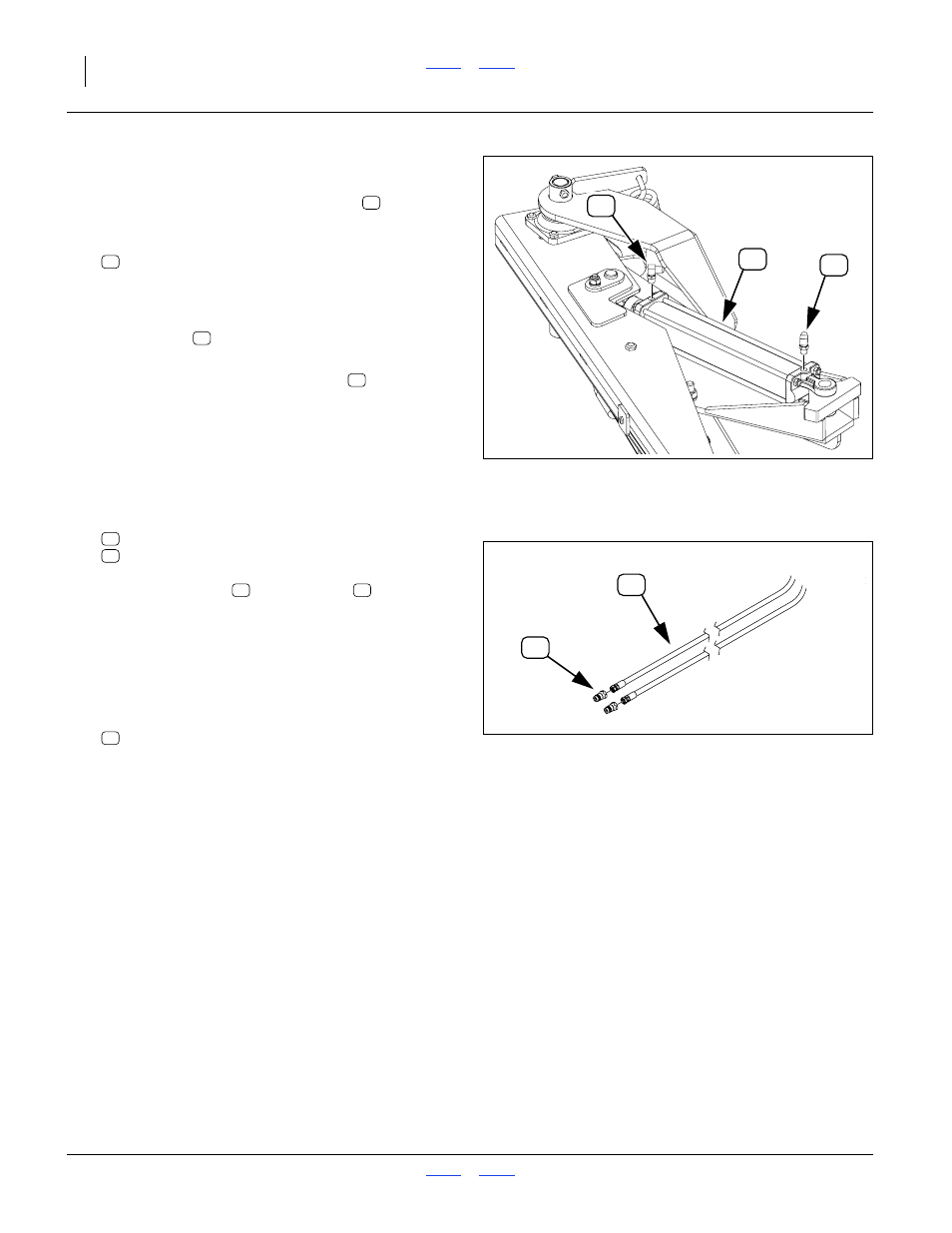

Figure 10
Cylinder Elbows
36056
75
73
75
73
75
75
75
Figure 11
Marker Supply/Return Hoses
36053
81
76
81
76
76 81
82
