Great Plains Mfg., Inc.
Installation Instructions 5
04/02/2009 133-140M
Attach SGS Box
Refer to Figure 7
16. If removed at step 9, select two saved:
133-045D SGS BOX SUPPORT STRAP
17. Select four new:
802-041C HHCS 1/2-13X3 1/2 GR5
Insert the bolts through the straps (if present
- newer drills have internal stiffener plates and do
not require straps). From the inside of the box,
insert the bolts, or bolt/strap assemblies, through
the holes previously used for the grab handles.
18. Select one new:
202-186D NG/SGS BOX SPACER
Place this spacer over the threaded ends of the
bolts
at the left end of the existing seed box. If it
tends to fall off, use saved 1/2-13 nuts to temporarily
hold it.
19. Select one new:
133-130K 6’ SGS DRIVER ASSY
With the sprocket drive end down, place this over
the threaded ends of the bolts
at the right end of
the existing seed box. If it tends to fall off, use saved
1/2-13 nuts to temporarily hold it.
Refer to Figure 8
20. Select two new
133-045D SGS BOX SUPPORT STRAP
and four sets new:
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Remove any temporary nuts. Place the SGS box
over the bolts inserted at step 17. Inside the SGS
box, place a strap
over the same bolts. Secure
with washers and nuts .

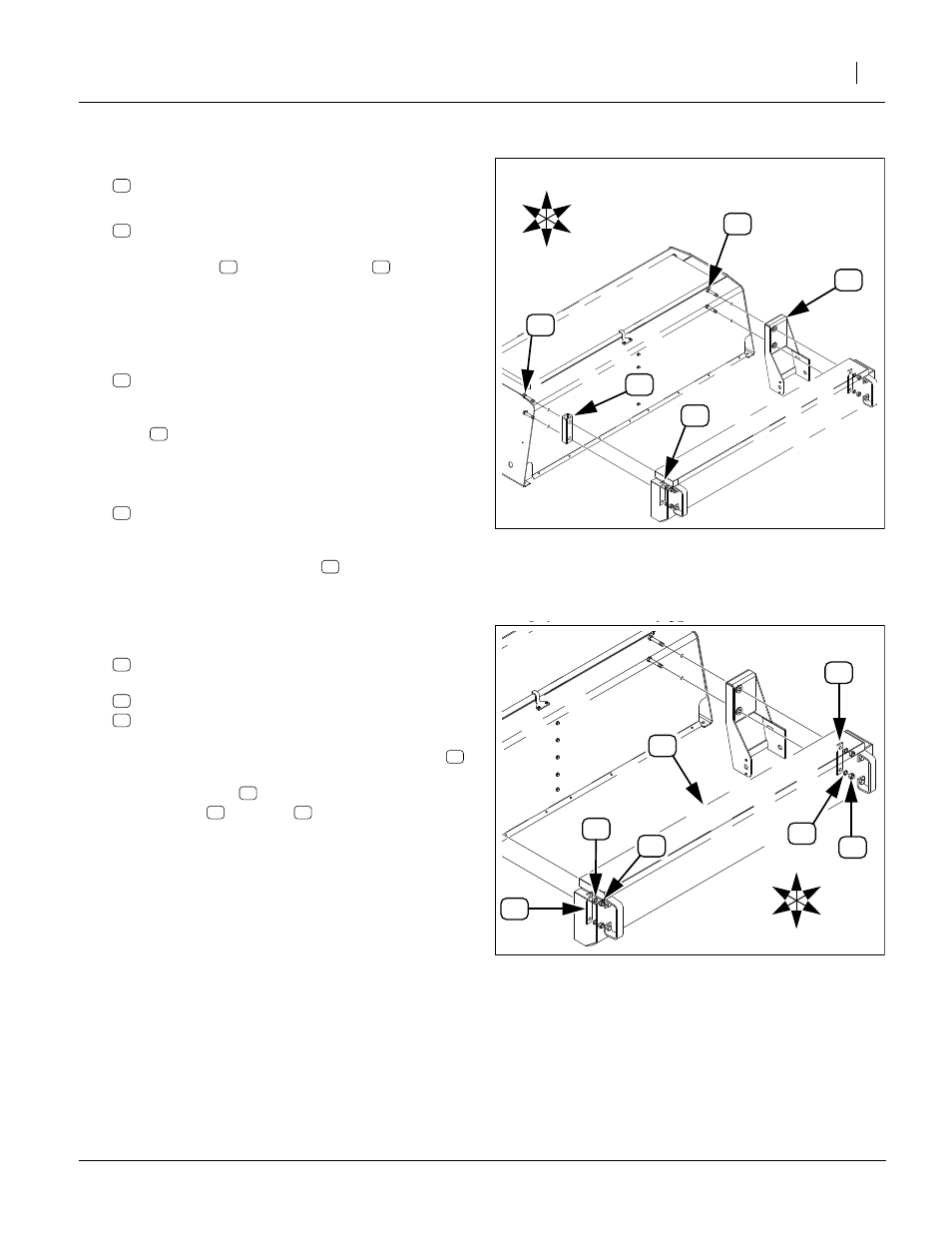

Figure 7
Prepare for SGS Box Install
18566
28
84
17
24
28
U
D
L
R
B
F
84
28
28 84
24
28
17
28
Figure 8
Install SGS Box
18566
35
31
35
15
15
31
16
U
D
L
R
B
F
15
35
31
16
15
35 31
