Great Plains Mfg., Inc.
Installation Instructions 15
04/02/2009 133-140M
Install Walkboard (NG only)
Refer to Figure 22
67. Select one new:
119-274H SEED,SGS,&NG WALKBOARD WELD
and eight sets saved:
802-079C HHCS 3/8-16X1 1/4 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Attach the new walkboard to the rear of the drill end
panels. Insert bolts from outside.
68. Select two saved:
119-192D STEP
and four sets saved:
802-091C HHCS 1/2-13X1 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Attach the steps near the front of the new walk-
boards. Insert bolts from outside.
Close-Out
Refer to Figure 23
69. Select the decal from your kit, one of:
838-253C DECAL 3P500
838-202C DECAL 3P600
848-094C DECAL 606NT
848-093C DECAL 3P606NT
or one of these separately-ordered optional decals:
838-207C DECAL 605NT
838-203C DECAL 3P605NT
Clean and dry the right rear face of the SGS box.
Determine the location for the decal, typically with:
lower edge aligned with top of the yellow stripe
,
and right edge at the same distance from the
right end of the box as the left edge of the Great
Plains log is from the left end of the box.
Remove the release paper from the decal. Carefully
apply the decal on the box. Smooth out any air bub-
bles, from center to edge of decal.

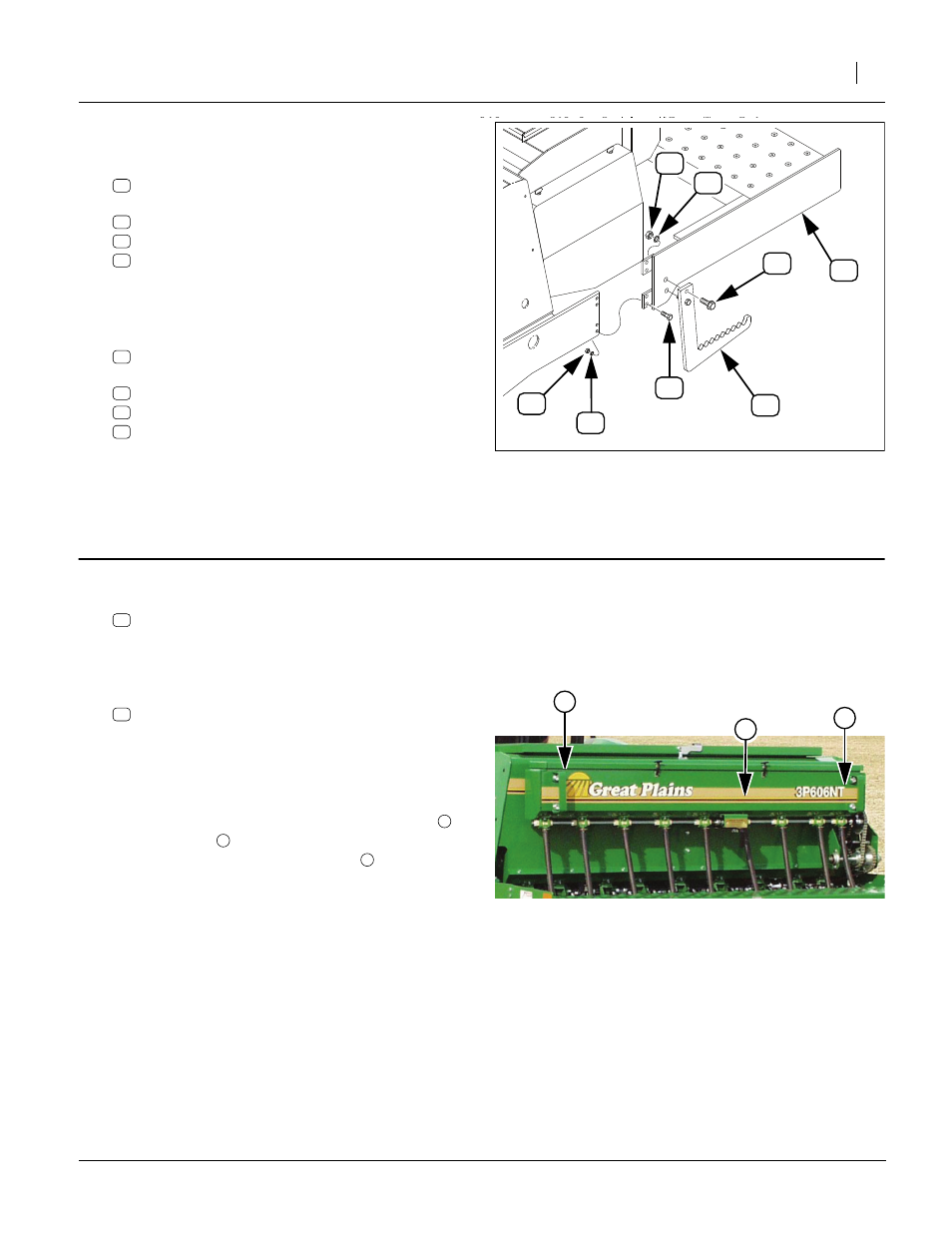

Figure 22
Install NG Walkboard
18717
12
90
89
86
82
87
91
95
12
86
89
90
82
87
95
91
Figure 23
Model Decal
29465
3
4
5
45
67
3
4
5
