Great Plains Mfg., Inc.
4 Small Seeds Option
133-140M 04/02/2009

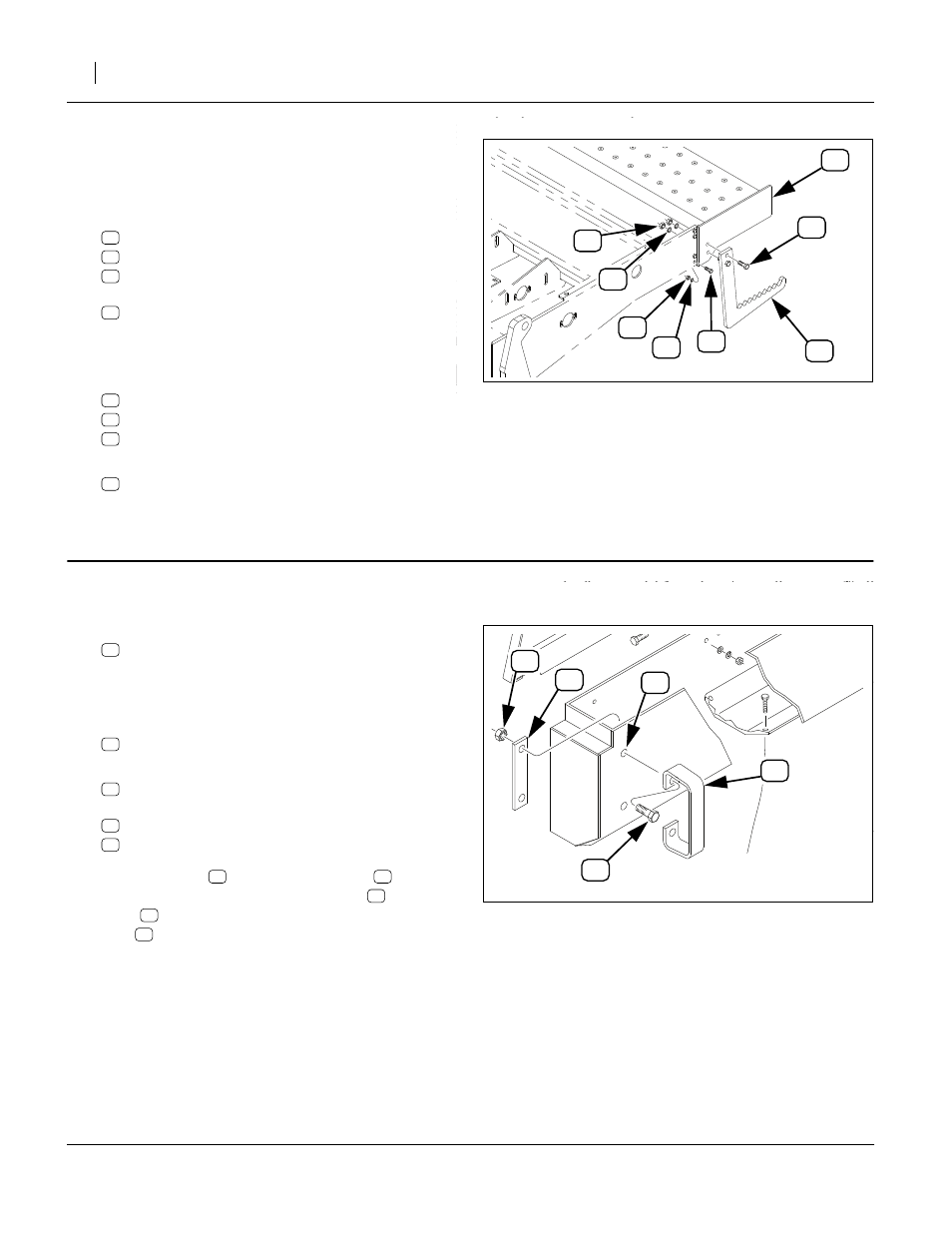

Refer to Figure 5
Step 11 through step 13 are performed only if the drill
has a Native Grass seed box installed. For Main-box-only
drills, skip to step 16 on page 5.
11. At each end of the walkboard, remove and save two
sets (four sets total):
802-091C HHCS 1/2-13X1 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
then remove and save two steps:
119-192D STEP
Note: Two people or a hoist are required for this step.
12. At each end of the walkboard, remove and save four
sets (eight sets total):
802-079C HHCS 3/8-16X1 1/4 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
13. Remove the walkboard:
119-272H SEED & SGS WALKBOARD WELDMENT
The walkboard is not re-used.
Attach SGS box & Final Drive
Re-Install Grab Handles
Refer to Figure 6
14. Select the SGS box from your kit, one of:
133-129L 6’ 7 1/2" SGS BOX ASSY
133-135L 6’ 6" SGS BOX ASSEMBLY
133-148L 5’ 6" SGS BOX ASSEMBLY
133-149L 5’ 7 1/2" SGS BOX ASSEMBLY
and two new:
133-045D SGS BOX SUPPORT STRAP
15. Select two saved:
119-190D HANDLE
and four sets saved hardware, typically:
802-203C HFSS 1/2-13X1 1/2 GR5
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
Insert the bolts through the handles , then
through the rear holes of the SGS box . Add a
strap to each handle assembly, and secure with
nuts (and any washers removed at step 9).
Figure 5
Dismount Walkboard (NG only)
18565
95
87
83
82
90
89
86
91 87
95
91
82
86
89
90
83
Figure 6
Re-install grab Handles
18568
92
81
16
88
15
16
15
81
88
92
88 81
16
15
92
