Treatment Compatibility
Refer to Figure 14 (which depicts a bottom view of the meter
housing and gate, with gate retainer removed for clarity)
Flow rate is controlled by tapered opening
in the
adjustable gate.
Use only granular materials that flow easily and which
have a maximum particle dimension smaller than:
4.8 mm (
3 ⁄
16
inch, 0.19 inch)
maximum dimension. Materials larger than this cannot
pass through the slot in the meter housing, at any meter
setting.
Materials with a maximum particle dimension of:
1.4 mm (
3 ⁄
64
inch, 0.59 inch)
or less can flow at meter setting 5 and above.
Materials from 1.4 mm to 4.8 mm encounter a lower gate
setting limit at which they can flow. The material rate
goes to zero before reaching meter setting 10.
Reading a Treatment Rate Chart
Refer to chart excerpts at right.
1. Find the chart for your material and row
spacing .
Note: If there is no chart for your specific material, use
any chart and rely on Rate Calibration to determine
a final meter setting.
2. Find a column for the field speed at which you
intend to plant and/or apply treatment. If your exact
speed is not listed, rely on Rate Calibration to
determine final meter setting.
3. Find your intended application rate ( TargetRate in
the examples) in kg/ha or lbs/ac in the selected
speed column.
4. Find the suggested initial dial value in the Meter
Setting column. This is PriorDial in the examples.
Columns are also provided for single row rates. These
are useful for estimating sample sizes during Rate
Calibration, and may be useful should you desire to
create your own charts for alternate speeds.
The data at right is used in the example calibration
calculations on page 29.

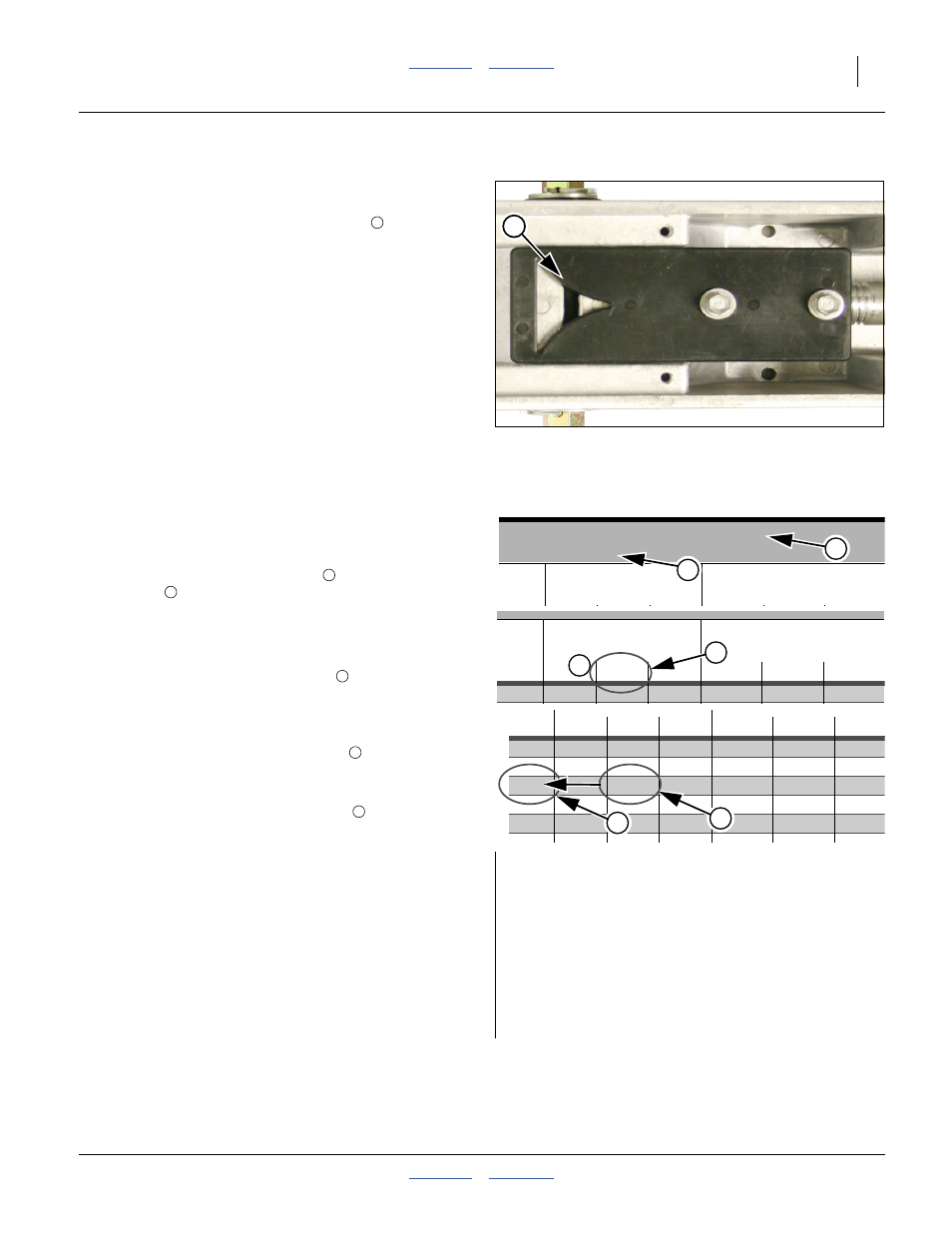

Figure 14
Treatment Metering Gate
34451
2 2
Clay Granules Herbicide Rate Chart
70 cm Row Spacing
Kg per Hectare grams per Row km
kilometers/hour kilometers/hour
e
ter
e
tting
a
b
c
70 cm Row Spacing
Kg per Hectare grams per Row km
kilometers/hour kilometers/hour
6.4 9.7 12.9 6.4 9.7 12.9
50 19.9 13.3 10.0 1392 931 700
Me
te
r
Se
tt
in
g
c
kilometers/hour kilometers/hour
6.4 9.7 12.9 6.4 9.7 12.9
50 19.9 13.3 10.0 1392 931 700
51 20.4 13.7 10.2 1426 957 717
52 21.0 13.9 10.5 1469 974 735
53 21.5 14.3 10.7 1503 999 752
54 22.0 14.6 11.0 1537 1025 769
55 22 5 15 0 11 2 1572 1051 786
Me
t
Se
t
e
f
Metric Example: USc Example:
Planter: YP1630F-1670ND Planter: YP1630F-1630ND
Row Spacing: 70 cm
Row Spacing: 30 inches
Material: Clay Granules Herbicide
Expected field speed:
9.7 km/hr
6 mph
TargetRate (desired field application rate):
12.8 kilograms/hectare 11.4 pounds/acre
Initial treatment meter dial setting ( PriorDial ):
52 52
a
b
c
e
f
