Monarch Instrument RFID LOGGER - Manual (Page 4)

Page 4 Rev 1.0 03122014 AJW
4. Operation
4.1. Start Up
To start the program double click the RFID Logger icon shown on the right or select the program from the Start

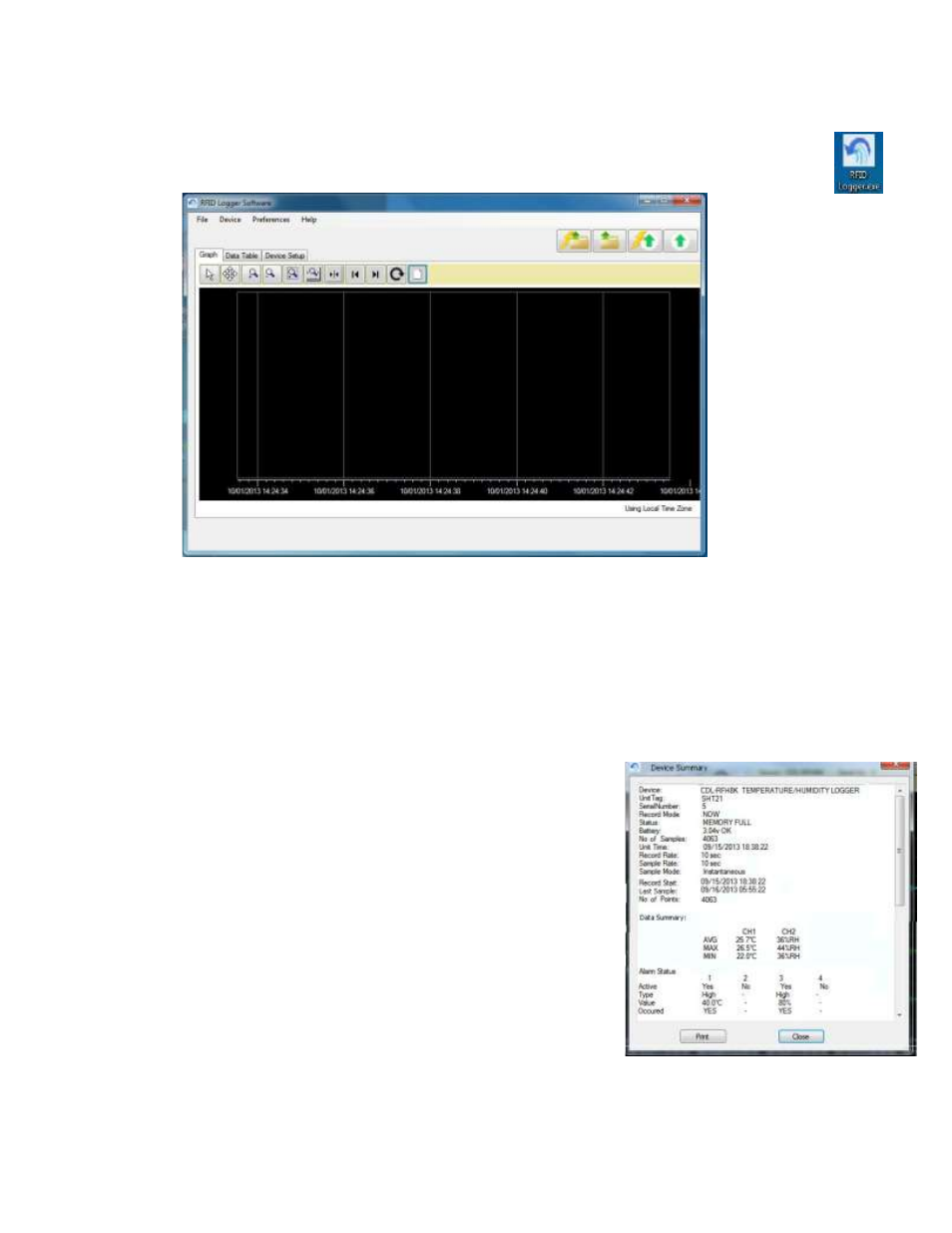

menu. The program start up window will appear as shown below.
4.2. Menu overview
There are a number of menu items at the top left of the window and four function buttons at the top right of the
window.
4.2.1. File menu
The choices are as follows:
Open This allows the user to select a previously saved file on the
PC. File must be a .dat format.
Save As This allows the user to save a previously opened or loaded
file to the PC
Export This allows the user to export the data from a previously
opened or loaded file in comma delimited (CSV) format.
View Summary Note: this requires that data be loaded. This will pop-up a
window (shown right) that summarizes the information
about the Logger. The information includes the device type,
unit tag, serial number, device status, data summary, alarm
activity and record information. This information may be
printed by clicking the “Print” button. The window may be
closed by pressing the “Close” button.
Print Summary Note: this requires that data be loaded. This allows the device summary (above) to be printed
directly.
Clear This will clear all data from the program
Exit Closes the program
