Page 10 Rev 1.0 03122014 AJW
5.2.2. Exporting Table Data
Data can be exported as a Comma Separated Variables (CSV) file by using the
“Export” button shown right. The data transferred is the information in the
summary area. The user can select to include all the data by checking the
“Include Data Table” check box as shown right. The CSV file can then be
imported into an Excel
TM
spread sheet.
5.2.3. Printing Table Data
Data can be printed using the “Print” button shown above. The user can select to include all the data by checking the
“Include Data Table” check box as shown above.

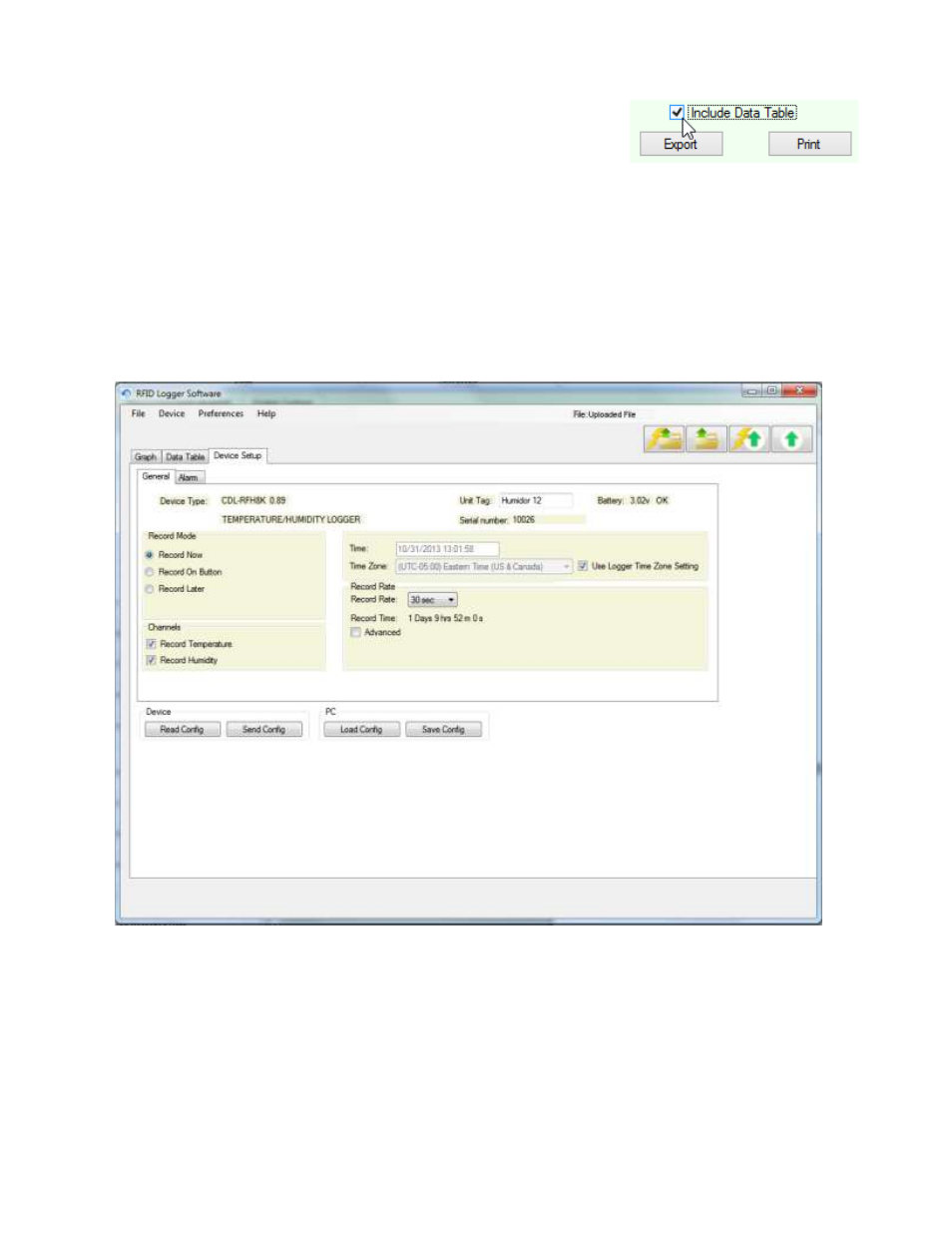

5.3. DEVICE SETUP TAB
Clicking this tab will bring up the Device Setup Window
There are two sub tabs – General and Alarm. The content of the General Tab is what is shown above.
5.3.1. General Tab
The General Tab is where most parameters of the Logger are programmed. To set Alarms select the Alarm sub tab.
To populate this page you can simply select the Data Setup tab and start with a clean set of parameters, or you can
load a previously saved set of parameters by clicking the PC – Load Config button and searching for the .bin file, or
you can load a configuration from a Logger by placing the logger on the Interface Box and clicking the Device – Read
Config button. To send the configuration to the Logger click the Device – Send Config button. To save a copy of the
configuration to the PC for later use click the PC – Save Config button.
