60001024, Third Edition
Installing the Omvia Media Server M110
2-11
Installing the M110
Routing and Connecting the System Cables
To install the system cables, follow these steps:
1
Connect the power, keyboard, video, and Ethernet cables.

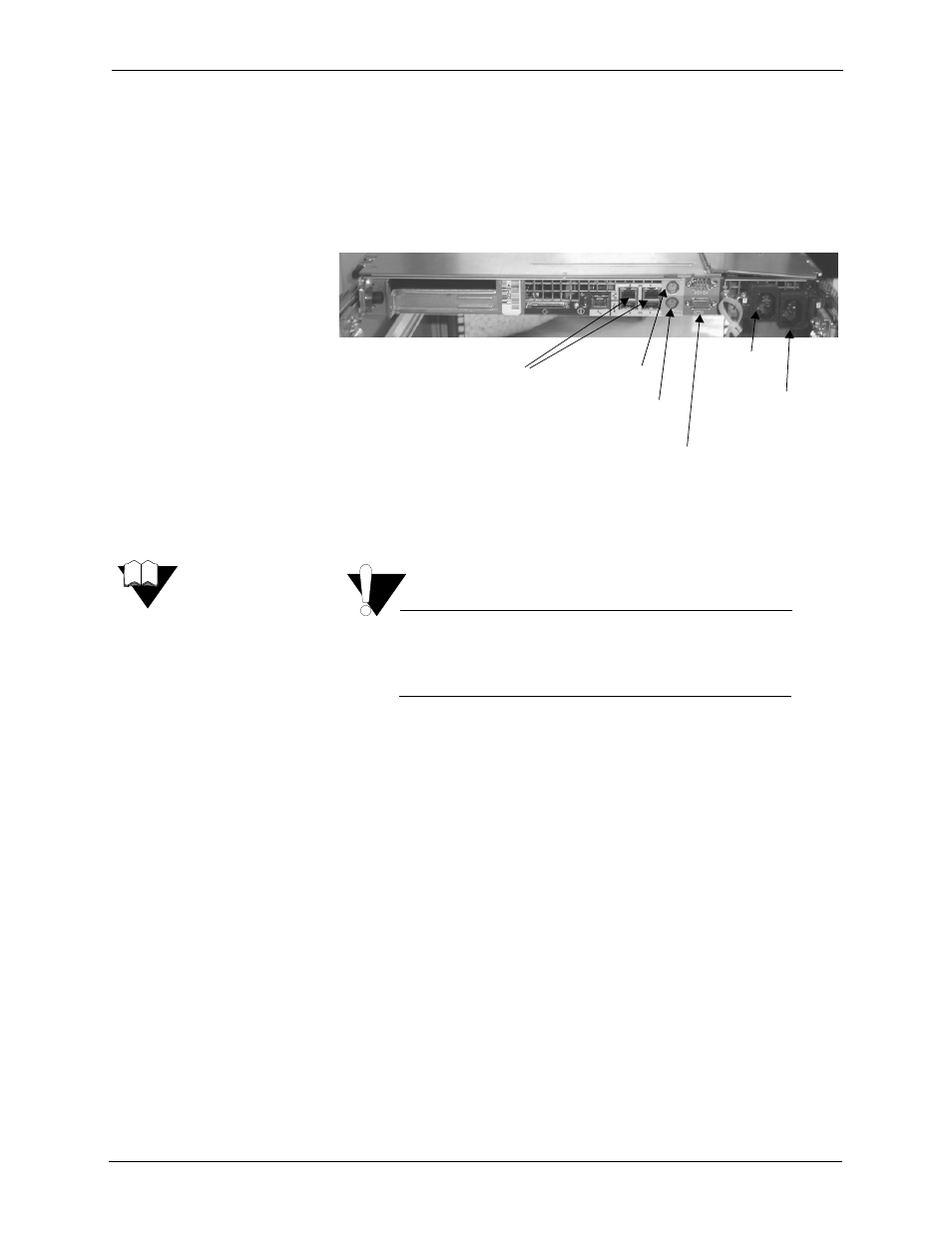

Figure 2-2. Omvia Media Server M110 Connections
2
Tie the cables and attach them to the mounting rail.
Mouse
Keyboard
Ethernet
Power 1
Video
Power 2
(redundant)
For additional information
about connecting the
system cables to the
M110, refer to the Dell
PowerEdge 1650 User’s
Guide on the Dell Product
Documentation CD-ROM.
Disconnect Cables Before Removing
Before you remove the M110 from the rack, ensure that
you disconnect all cables from back of the M110.
