60001024, Third Edition Installing the Omvia Media Server M110 2-7
Installing the M110
Mounting the Slide Rails
To mount the slide rails on the Omvia Media Server Rack 100, follow
these steps:
1 Find the location on the mounting rail where the M110 is to be
installed.
2 Install the cage nuts as follows:
a On the front of the Rack 100, install a #10 cage nut in the
middle position on the mounting rail on each side. Install two
M6 cage nuts in the remaining positions on both sides.
Note The middle cage nut position must be between
two wide spaces on the mounting rail.
b On the back of the Rack 100, install M6 cage nuts on the
mounting rail in all positions (three on each side).
3 Mount the slide rails to the mounting rail of the Rack 100 using the
screws provided.
Note The slide rails are marked L (left) and R (right).

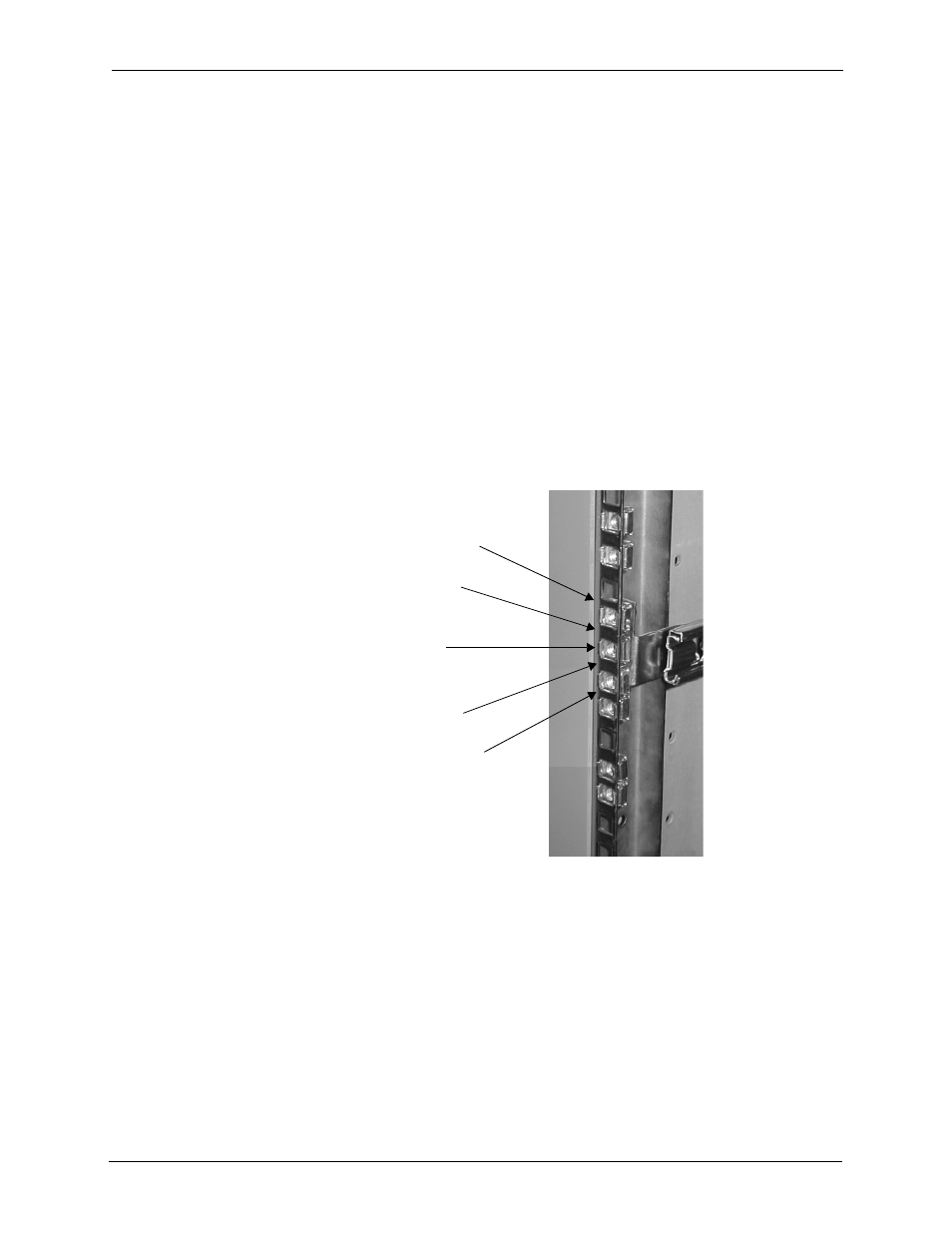

Middle
cage nut
position
Wide space
Wide space
Narrow space
Narrow space
