CAUTION: When installing, do not lift the unit from the middle of the lower cover as this

may damage the filter. To reduce potential for filter damage, lift the charger using the

lifting handles mounted on either side of the charger chassis (see Figure 2).

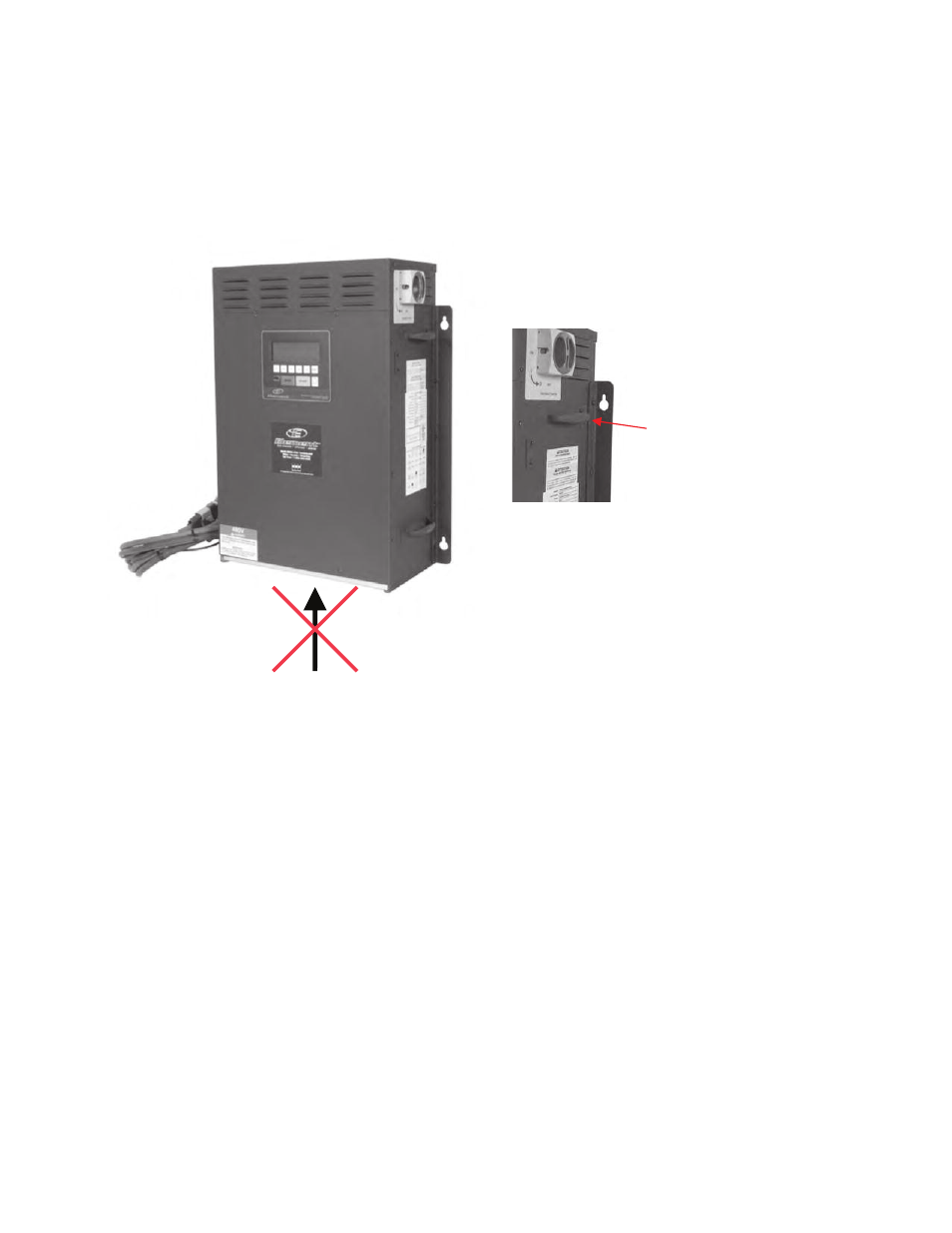

Figure 2: Charger lifting instructions

III. Installing / Removing Air Filter

The charger is equipped with an air filter located in the lower cover of the unit. The air

filter needs to be checked on a regular basis and cleaned if needed.
ATTENTION: To clean the filter, use soap and water; dry thoroughly before

installing.
To remove the filter, hold the open end of the filter and slide out. To re-install, slide the

filter into the lower cover guide and push in until fully inserted (Figure 3).

Lifting

Handles
