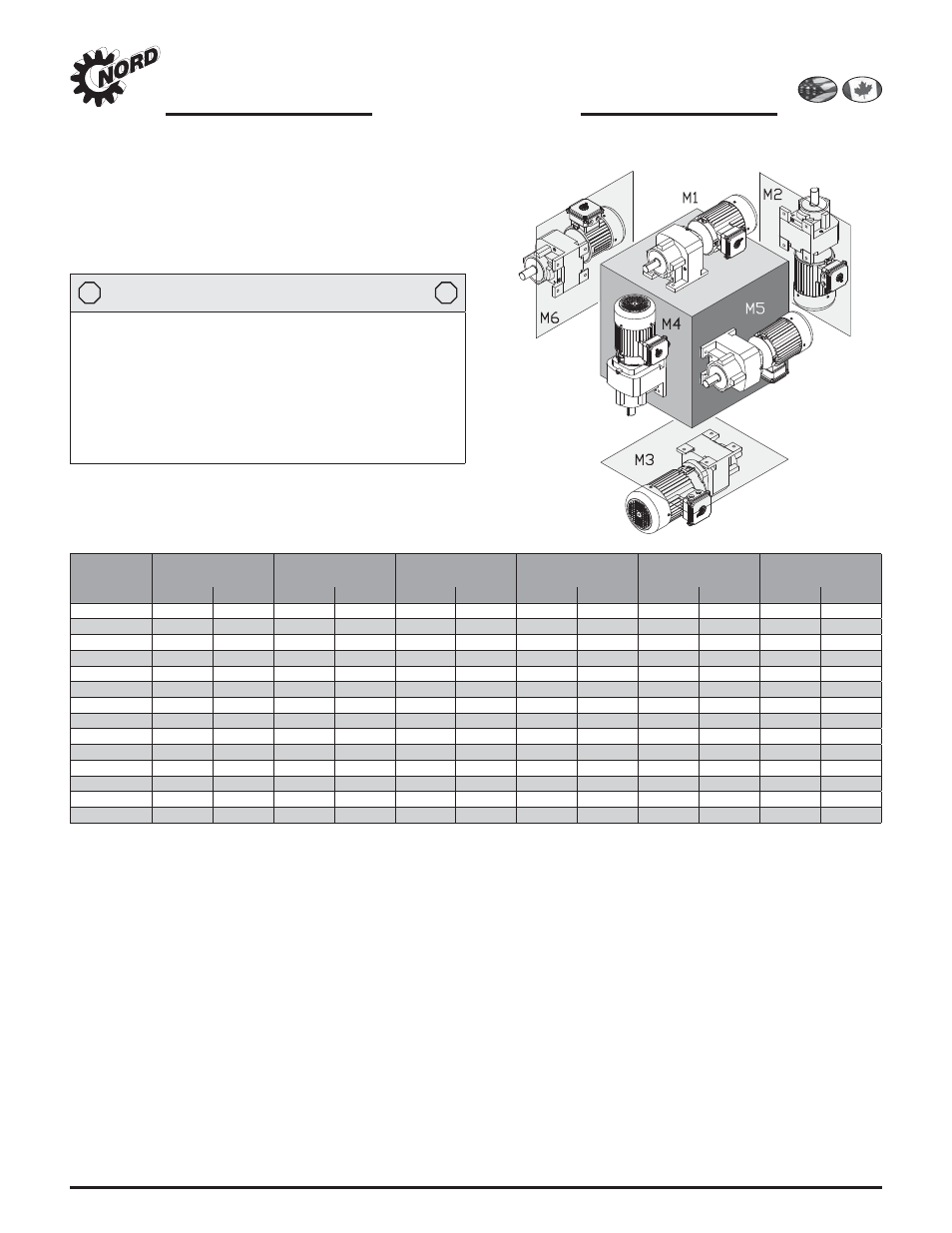

Nordbloc, 1 foot mounted oil fill quantities, Nord gear corporation – Viking Pump NORD TSM For NORDBLOC.1 Reducers User Manual
Page 16: Nord gear limited, Harmful situation, Retain for future use
DRIVESYSTEMS
NORDBLOC
®
.1 FOOT MOUNTED
OIL FILL QUANTITIES
RETAIN FOR FUTURE USE
U12900 - 1 of 1
Type
M1
M2
M3
M4
M5
M6
Quarts
Liters
Quarts
Liters
Quarts
Liters
Quarts
Liters
Quarts
Liters
Quarts
Liters
SK 072.1
0.169
0.160
0.338
0.320
0.222
0.210
0.243
0.230
0.190
0.180
0.210
0.200
SK 172.1
0.285
0.270
0.624
0.590
0.444
0.420
0.529
0.450
0.338
0.320
0.412
0.390
SK 372.1
0.480
0.450
1.11
1.05
0.790
0.750
1.06
1.000
0.630
0.600
0.690
0.650
SK 373.1
0.480
0.450
1.11
1.05
0.791
0.750
1.06
1.000
0.630
0.600
0.690
0.650
SK 572.1
0.790
0.750
2.01
1.90
1.59
1.50
2.11
2.00
1.16
1.10
1.22
1.15
SK 573.1
0.790
0.750
2.00
1.90
1.59
1.50
2.11
2.00
1.16
1.10
1.22
1.15
SK 672.1
1.16
1.10
2.75
2.60
2.27
2.15
2.85
2.70
1.64
1.55
1.74
1.65
SK 673.1
1.16
1.10
2.75
2.60
2.27
2.15
2.85
2.70
1.64
1.55
1.74
1.65
SK 772.1
1.22
1.15
3.86
3.65
2.38
2.25
3.33
3.15
1.43
1.35
2.27
2.15
SK 773.1
2.06
1.95
3.70
3.50
3.38
3.20
3.06
2.90
2.38
2.25
3.12
2.95
SK 872.1
2.75
2.60
8.45
8.00
5.60
5.30
7.40
7.00
2.96
2.80
4.86
4.60
SK 873.1
4.28
4.05
8.03
7.60
7.24
6.85
6.92
6.55
5.28
5.00
6.92
6.55
SK 972.1
4.76
4.50
13.63
12.90
8.56
8.10
13.42
12.70
4.86
4.60
8.24
7.80
SK 973.1
7.82
7.40
12.89
12.20
11.73
11.10
12.26
11.60
8.45
8.00
11.52
10.90
www.nord.com/docs
06.01.11
NORD Gear Corporation
Toll Free in the United States: 888.314.6673
NORD Gear Limited
Toll Free in Canada: 800.668.4378
M6
M2
M3
M5
M4
M1
NORDBLOC
®
.1 foot mounted lubrication
The following NORD Gear reducers are shipped from the
factory with a pre-determined oil fi ll level in accordance
to the specifi ed reducer size and mounting position. For
additional information, please refer to the “Oil Plug & Vent
Locations” documentation for your gear unit.
STOP
HARMFUL SITUATION
STOP
Actual oil volume can vary slightly depending upon the
gear case size, mounting and ratio. Prior to commission-
ing the reducer, check the oil-fi ll level using the reducer’s
oil level plug and drain or add addition oil as needed. The
minimum acceptable oil level is 0.15 in (4mm) below the
oil level hole.
For mounting orientations other than shown please consult
NORD Gear. Reducer modifi cations may be required.
