Basic Operation of the Manual Remote
The manual remote provides simple valve positioning capabilities, but in the configura-
tion mode, it can be used to perform extensive actuator setup functions. For information
on using the manual remote to configure the actuator, refer to “Using the Manual Remote
to Configure the Actuator” beginning on the next page.
Introduction
�
� �
�

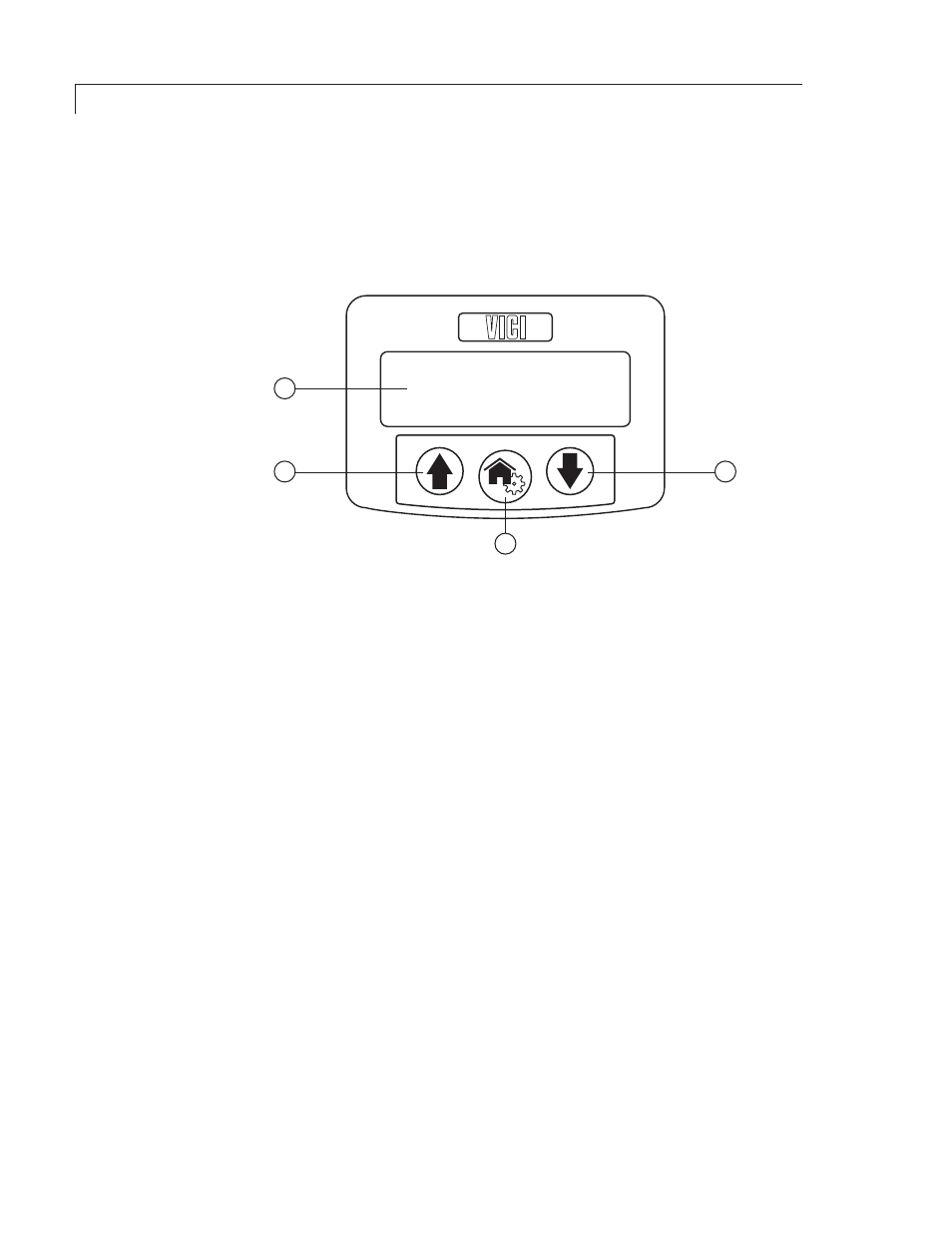

Figure 3: Universal actuator manual remote
1. Display
2. UP arrow button
In two position configuration, pressing the UP arrow button moves the actuator to
Position B. If it is already in Position B, nothing happens.
In multiposition configuration, pressing the UP arrow button advances the actuator
one position; i.e., from 1 to 2, 4 to 5, etc.
3. DOWN arrow button
In two position configuration, pressing the DOWN arrow button moves the actuator to
Position A. If it is already in Position A, nothing happens.
In multiposition configuration, pressing the DOWN arrow button reverses the actuator
one position; i.e., from 2 to 1, 5 to 4, etc.
4. HOME/SETUP button
In two position configuration, pressing the HOME button moves the actuator to
Position A. If it is already in Position A, nothing happens.
In multiposition configuration, pressing the HOME button sends the actuator to
Postion 1.
In either configuration, pressing and holding the HOME button for 5 seconds sends
the manual remote into the configuation mode. Refer to “Using the Manual Remote to
Configure the Actuator” beginning on the next page.
