WELDING EQUIPMENT basIc UTILITy caRT assEMbLy INsTRUcTIONs
0-5221 5 December 01, 2011

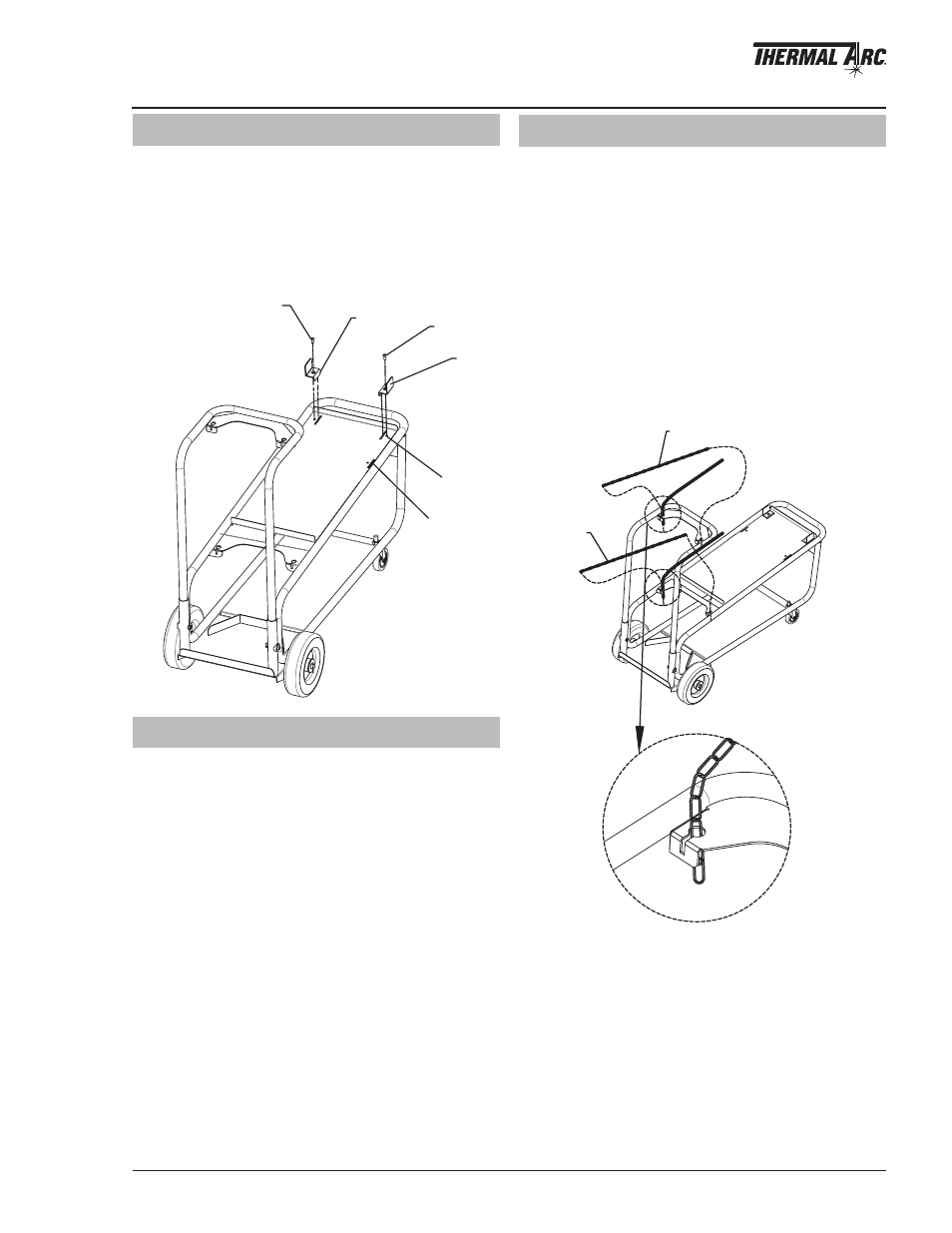

F. Install Side Brackets
1. Insert the side brackets (3) into the two slots on the
top of the base assembly.
2. Use the screws (5) to fasten the brackets as shown.
A slots are designed for the Fabricator 211i & 252i
B slots are designed for the Fabricator 181i
5
5
3
3
Art # A-10654
A Slots
B Slots
G. Tighten All Hardware
Fully tighten all the fasteners at this time but do not over-
tighten. Refer to torque force in supplied parts section.
H. Hang Chain
1. Insert one end of the Chain (1) through the chain
hole on the left side of the Handle Assembly and secure
it by turning and sliding the second link into the slot (top
hole as shown).
2. Wrap the chain around the upper part of the Gas
Cylinder and pull the other end through the chain hole
on the right side of the Handle Assembly.
3. Pull the chain as tight as it will go and secure it by
turning and sliding the closest link into the slot.
4. Wrap and secure the other chain around the lower
part of the gas cylinder following steps 1 to 3.
Art # A-10655
1
1
