FABRICATOR 211i & 252i ROLL CAGE ASSEMBLY INSTRUCTIONS
February 3, 2012
5
0-5233
2. Insert Handle (Item 5) through hole in Top Support Plate (Item 4).
3. Place the Handle against the Front and Rear Frame with holes on the ends of the Handle aligned with holes
on the Frames.
4. Use fasteners to fasten the Handle and the Frames together.
Fasteners are as follows:
• Socket Cap Screw (Item 6)
• Saddle Washer (Item 8)

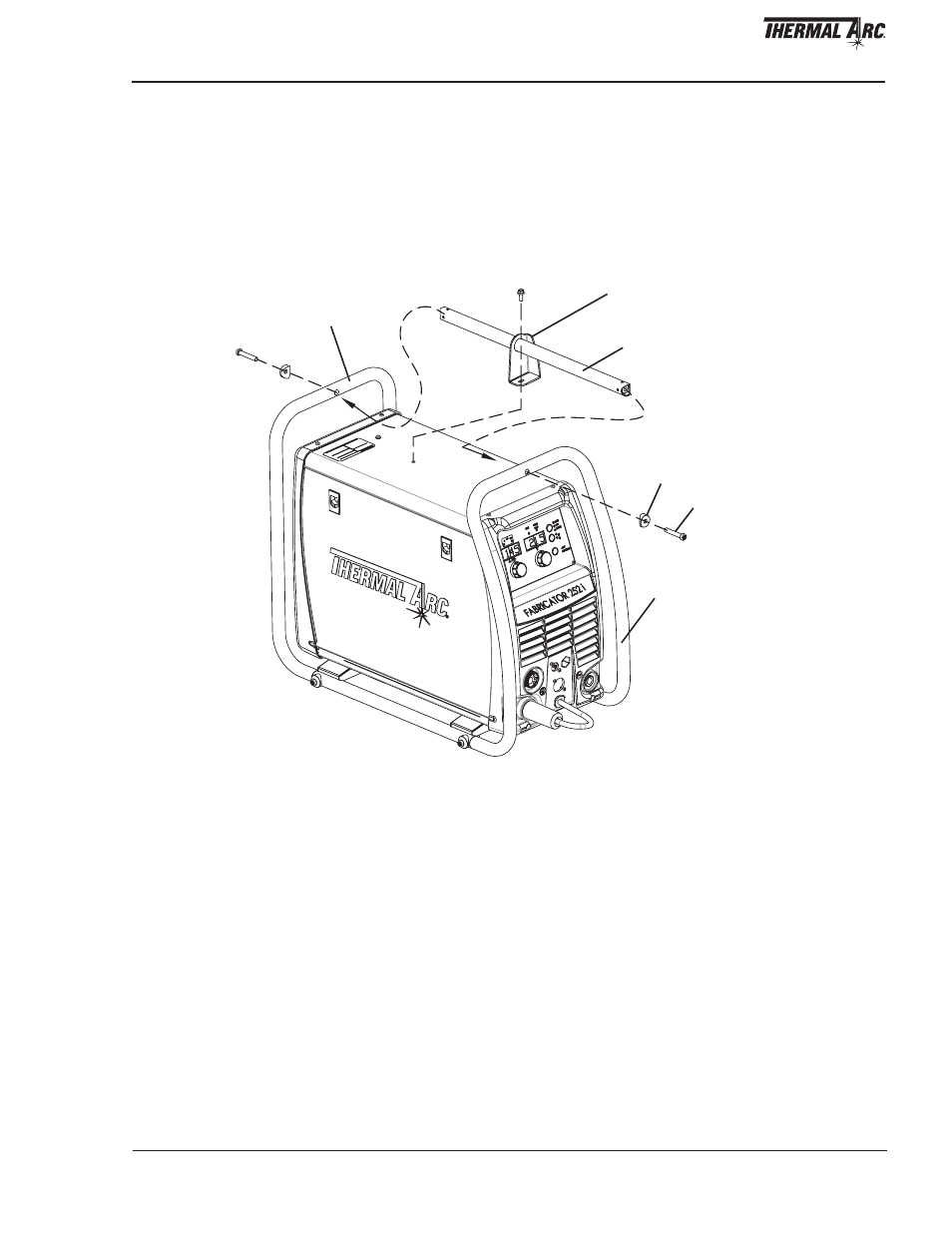

Art # A-10605_AB
Top Support Plate
Handle
Rear Frame
Saddle Washer
Socket Cap Screw
Front Frame
5. Reinstall the Screw (taken out in Step 1) to the Fabricator 211i/252i. Fasten the Screw to secure the power
source to the Roll Cage.
