FABRICATOR 211i & 252i ROLL CAGE ASSEMBLY INSTRUCTIONS
February 3, 2012 3 0-5233

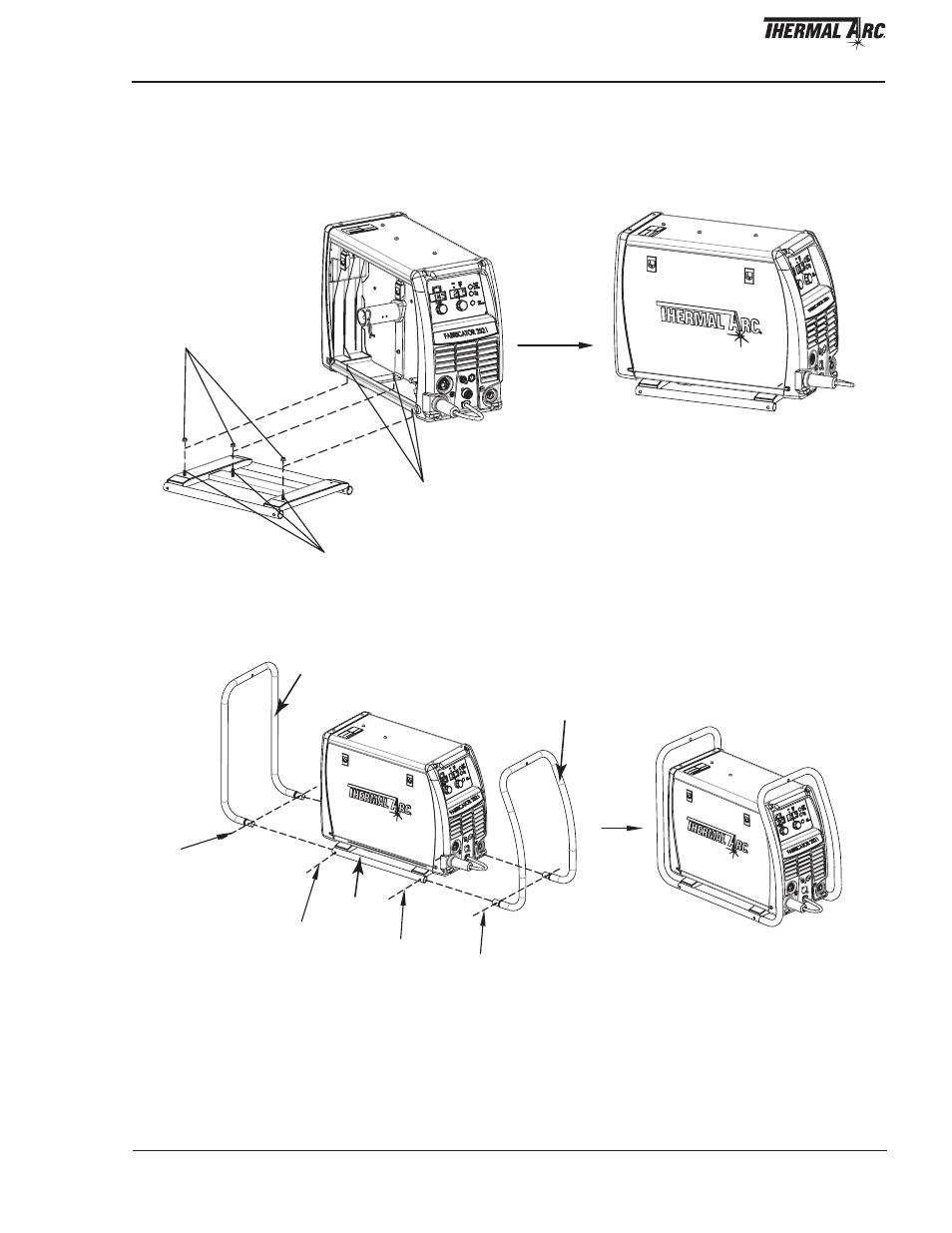

A. Mount power source to Base Assembly
1. Open the wire feed compartment door and mount the power source to the Base Assembly (Item 2), care-
fully aligning the 3 mounting studs in the Base Assembly with the 3 holes in the power source.
2. Fasten all 3 M6 Nuts (Item 9) onto the 3 Base Assembly studs to secure the power source onto the roll
cage base.
3 Nuts
3 Studs
3 Holes
Art # A-11094
B. Install Front and Rear Frames
1. Install the Rear Frame to the Base Assembly and align Axes A with Axes B.
2. Install the Front Frame to the Base Assembly and align Axes C with Axes D.
Axes A
Axes B
Axes C
Rear Frame
Front Frame
Base Assembly
Axes D Art # A-11095
