PLAZMASTER 82
Manual 0-5096
3-1 INSTALLATION
SECTION 3 SYSTEM:
INSTALLATION
3.01 Unpacking
1. Use the packing lists to identify and ac-
count for each item.
2. Inspect each item for possible shipping
damage. If damage is evident, contact
your distributor and / or shipping company
before proceeding with the installation.
3. Record Power Supply and Torch model
and serial numbers, purchase date and ven-
dor name, in the information block at the
front of this manual.
3.02 Lifting Options
The Power Supply includes a handle for hand
lifting only. Be sure unit is lifted and transported
safely and securely.
!
WARNING
Do not touch live electrical parts.
Disconnect input power cord before moving unit.
FALLING EQUIPMENT can cause serious personal
injury and can damage equipment.
HANDLE is not for mechanical lifting.
• Only persons of adequate physical strength
should lift the unit.
• Lift unit by the handles, using two hands.
Do not use straps for lifting.
• Use optional cart or similar device of ad-
equate capacity to move unit.
• Place unit on a proper skid and secure in
place before transporting with a fork lift or
other vehicle.
3.03 Primary Input Power
Connections
CAUTION
Check your power source for correct voltage be-
fore plugging in or connecting the unit. Check the
Voltage Selector at the rear of the unit for correct
setting before plugging in or connecting the unit.
The primary power source, fuse, and any extension
cords used must conform to local electrical code
and the recommended circuit protection and wiring
requirements as specified in Section 2.
Most units are shipped from the factory with a
460Volt input power cable wired to the input
contactor in the single - phase configuration.
The following illustrations and directions are for
changing that configuration to a different voltage
and or to three - phase operation or back again if a
change had already been made.

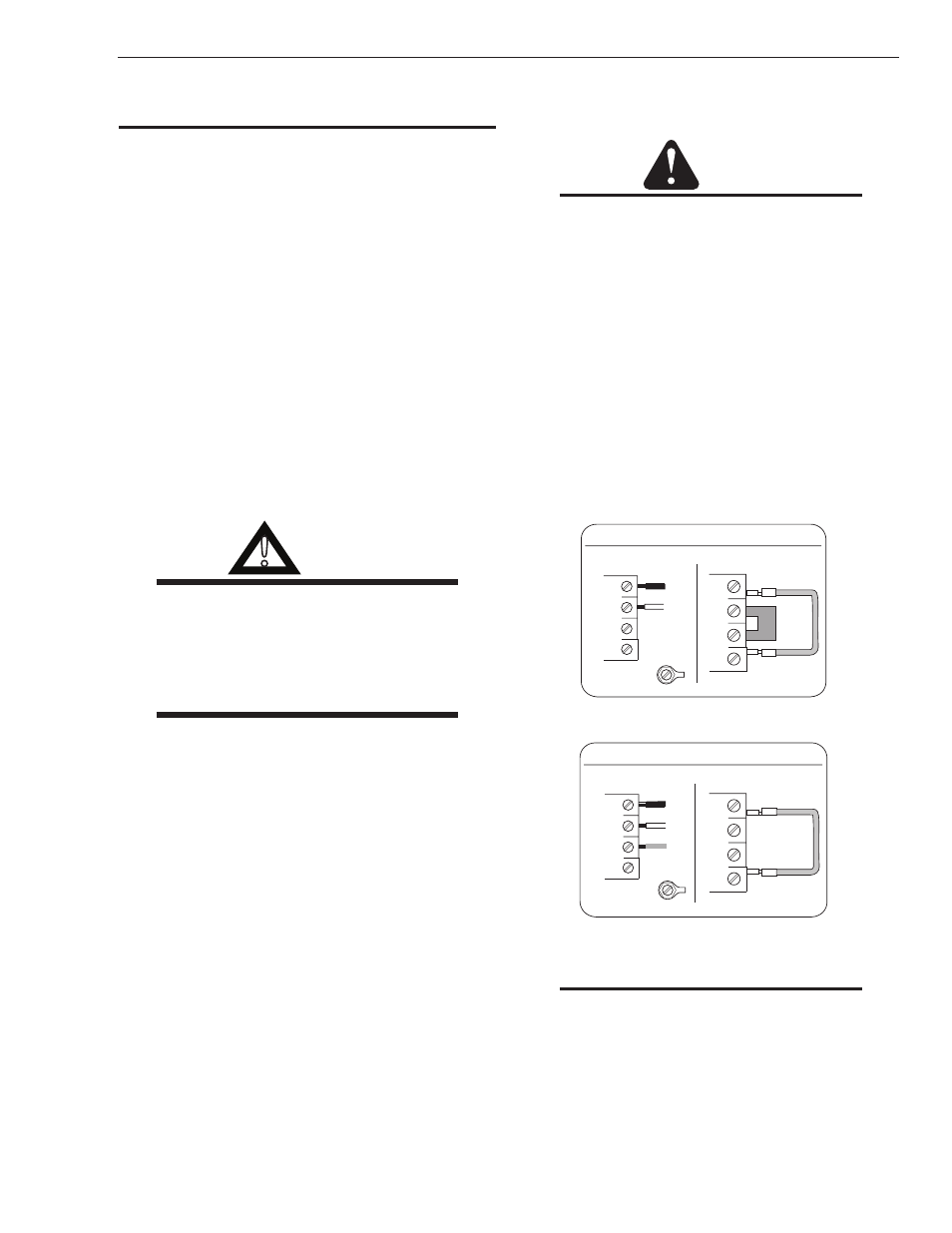

Art # A-07984_AB
Single-Phase (1ø) and Jumper Settings
L1
L2
L3
L4
Jumper L1 -L4
Jumper
L2-L3
L1
L2
L3
GND
L4
Single Phase Input Power Wiring
Art # A-07983_AB
Three-Phase (3ø) and Jumper Settings
L1
L2
L3
L4
Jumper L1 -L4
L1
L2
L3
GND
L4
Store copper jumper in spare parts box
Three Phase Input Power Wiring
NOTE
There is only one jumper setting that changes
between the single and three phase settings. To
change from single phase to three phase, the
jumper connected to L2 needs to be removed and
placed on the other L3 connection so both ends
of the jumper are attached to the same electrical
point. See previous illustrations.
