INSTALLATION PROCEDURES
d. Secure the shield lead (black) to the ground
connection with the nut and star washer re-
moved above.
e. Remove the nut and star washer from the other
pilot connection inside the power supply.
f. Secure the pilot lead (red) to the pilot connec-
tion with the nut and star washer removed
above.
7. Connect the other end of the Power Lead to the
Slave Power Supply per the following procedure:
a. Feed the Power Lead through the large strain
relief at the front panel of the Slave Power Sup-
ply.
b. Remove the nut from the power connection
terminal inside the power supply.

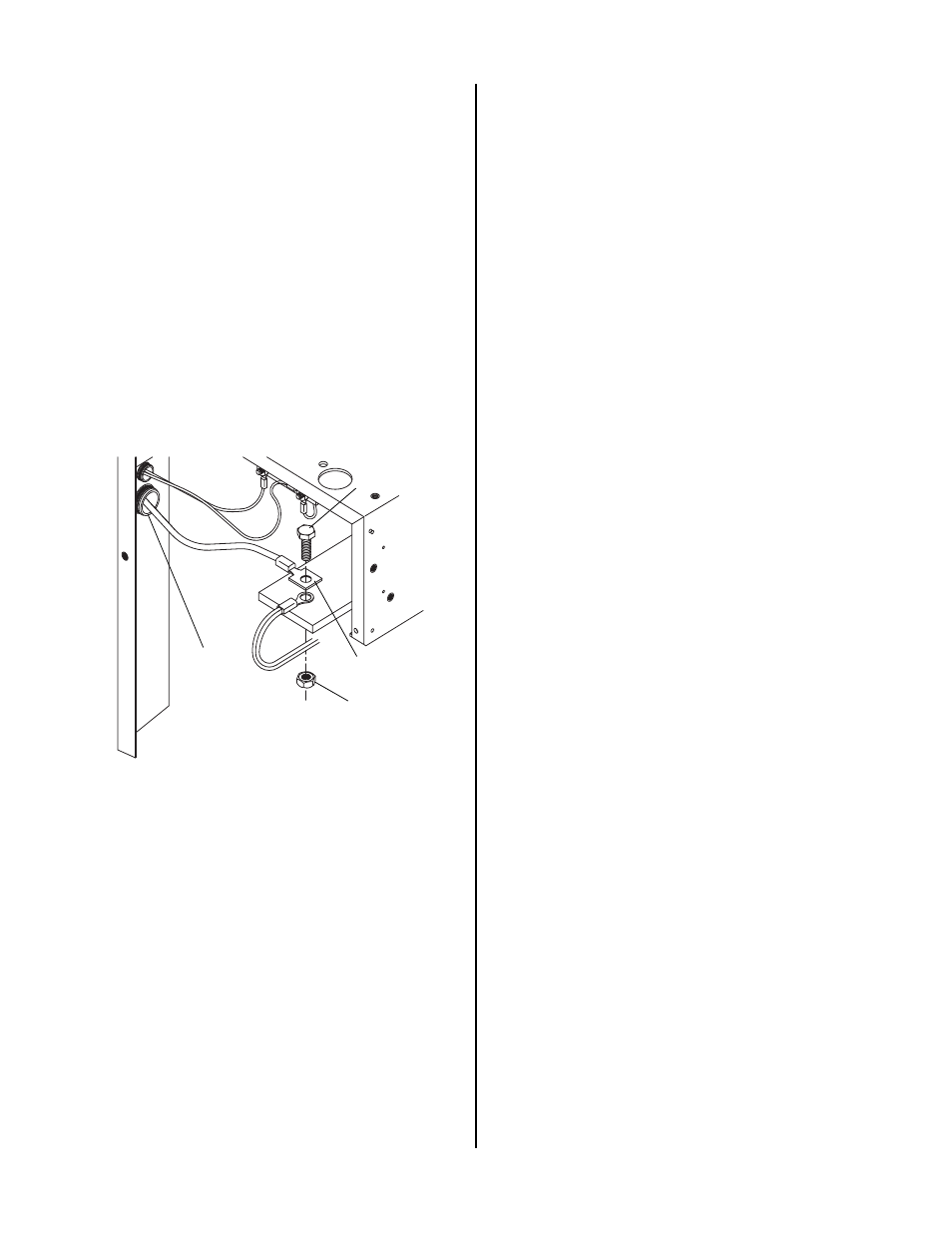

Large
Strain Relief
Power Lead
Nut
Power Lead
Terminal Bolt
A-01496
Figure 3-18 Power Lead Connection at Slave Power
Supply
c. Secure the power lead to the connection with
the nut removed above.
