Tweco HE-150 Coolant Recirculator - Manual (Page 4)

Date: 10/30/98 4 Manual 0-2010
REPLACEMENT PARTS LIST
Parts listed are for three-phase coolant recirculator with
starter. Motor and starter for single phase unit shown
below by an asterisk.
Qty Catalog # Description
1 7-2850 Thermal Arc Coolant
1 8-1002 Replacement Filter Screen
1 8-1032 Filter
1 8-1328 Pump
1 8-1329 Fan Blade
1 8-1340 Fan Shaft
2 8-1344 Pillow Block
1 8-1346 Pulley (Pump)
1 8-1425 Pulley (For 60 Hz. Motor)
1 8-1426 Pulley (Fan)
1 8-1427 Fan Belt (50 Hz.)
1 8-1458 Pump Pulley Bushing
1 9-3618 Cap
1 9-2217 Reservoir Cap
1 9-2422 Starter
1 9-2423 Heater Coil for 460V Operation
1 9-2424 Heater Coil for 230V Operation
1 9-2469 Reservoir Assembly
1 9-2529 Fan Belt (60 Hz.)
1 9-2850 Pressure Gauge
1 9-2879 Motor
1 9-3893 Pulley (For 50 Hz. Motor)
1 9-3080 Crosswire
1 9-5022-25 Starter Cable - 25'
1 9-5022-50 Starter Cable - 50'
* 8-1327 Motor, 60 Hz.
* 9-2305 Motor, 50 Hz.
* 9-3894 Pulley, 50 Hz.
* 9-2522 Starter
* 8-1427 Fan Belt

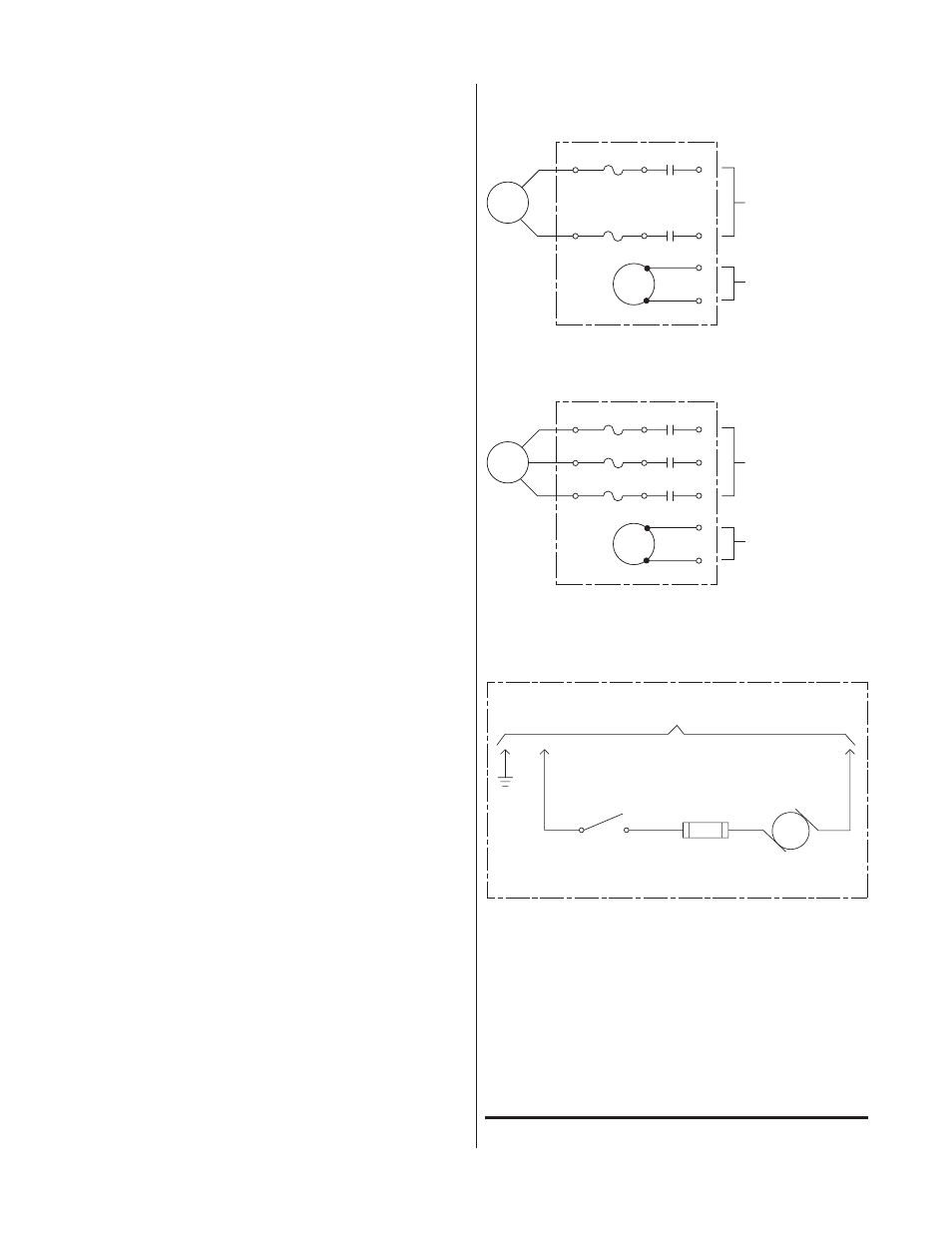

WIRING DIAGRAMS
Motor
T1
T2
Motor Input
(VAC, Three-Phase)
Starter Input
(VAC, Single-Phase)
L1
L2
CR
CR
CR
3
X2
Drawing # 42A426
Motor
T1
T2
T3
Motor Input
(VAC, Three-Phase)
Starter Input
(VAC, Single-Phase)
L1
L2
L3
CR
CR
CR
CR
3
X2
Drawing # 42A425
M
Input
Drawing # 42A430
Fu
20 A - 115 VAC
10 A - 230 VAC
ON/OFF
HE-50, HE-100 (all)
L1 L2
NOTE
Every effort has been made to provide com-
plete and accurate information in this manual.
However, the publisher does not assume and
hereby disclaims any liability to any party for
any loss or damage caused by errors or omis-
sions in this Manual, whether such errors re-
sult from negligence, accident, or any other
cause.
Installation Instructions © 1981
