3-1 INSTALLATION

SECTION 3 SYSTEM:

INSTALLATION

3.01 Unpacking

1. Use the packing lists to identify and ac-

count for each item.

2. Inspect each item for possible shipping

damage. If damage is evident, contact

your distributor and / or shipping company

before proceeding with the installation.

3. Record Power Supply and Torch model

and serial numbers, purchase date and ven-

dor name, in the information block at the

front of this manual.

3.02 Lifting Options

The Power Supply includes a handle for hand

lifting only. Be sure unit is lifted and transported

safely and securely.

!

WARNING

Do not touch live electrical parts.
Disconnect input power cord before moving unit.
FALLING EQUIPMENT can cause serious personal

injury and can damage equipment.
HANDLE is not for mechanical lifting.

• Only persons of adequate physical strength

should lift the unit.

• Lift unit by the handles, using two hands.

Do not use straps for lifting.

• Use optional cart or similar device of ad-

equate capacity to move unit.

• Place unit on a proper skid and secure in

place before transporting with a fork lift or

other vehicle.

3.03 Primary Input Power

Connections

CAUTION

Check your power source for correct voltage

before plugging in or connecting the unit. The

primary power source, fuse, and any extension

cords used must conform to local electrical code

and the recommended circuit protection and wir-

ing requirements as specified in Section 2.

All units are shipped from the factory with a

380/400Volt input power cable wired to the input

contactor in the three - phase configuration. The

following illustration and directions are for re-

placing the input power cable.

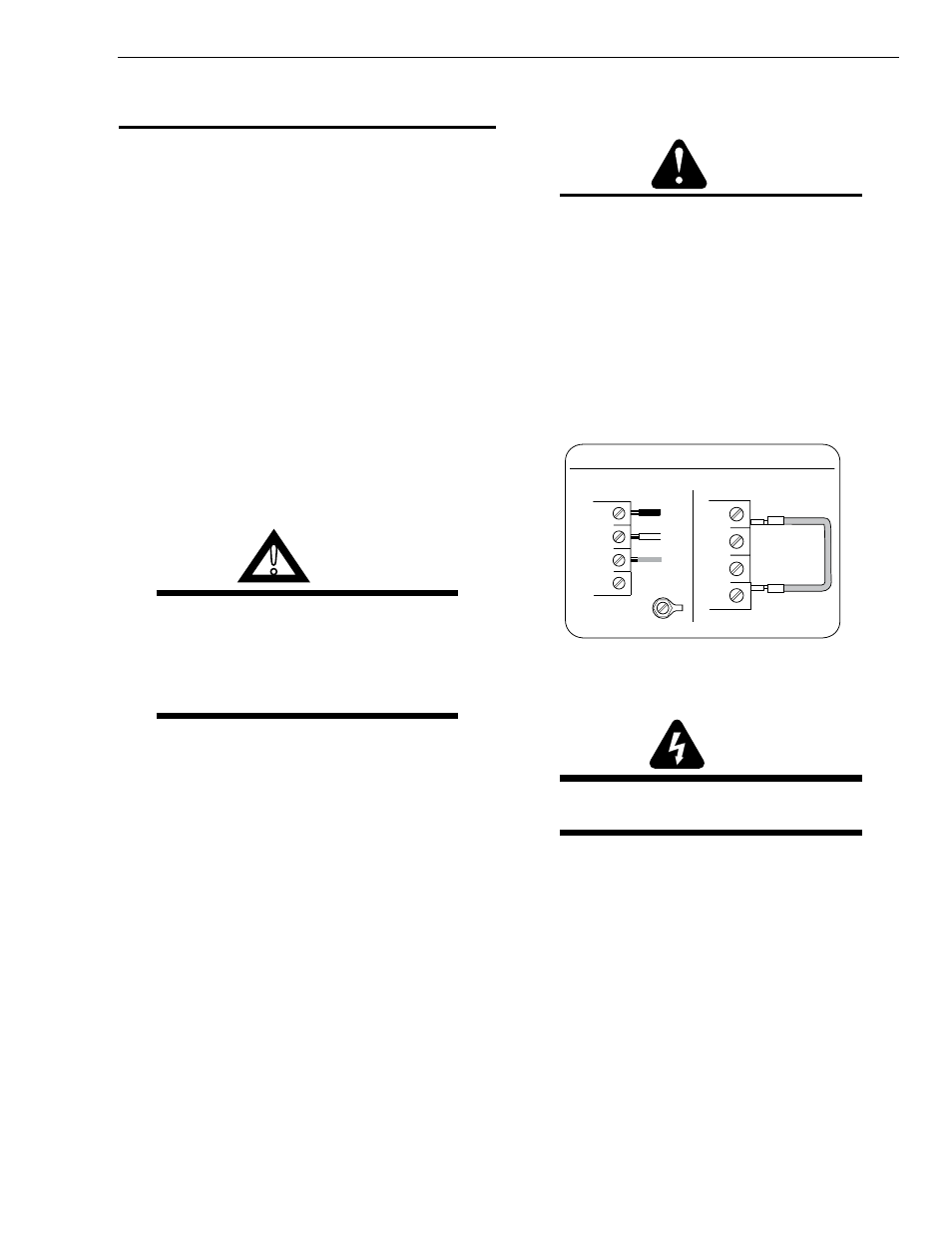

Art # A-08546

Three-Phase (3ø) and Jumper Settings

L1

L2

L3
L4

Jumper L1 -L4

L1
L2
L3

GND

L4

Three Phase Input Power Wiring

A. Connections to Three Phase Input Power

WARNING

Disconnect input power from the power supply

and input cable before attempting this procedure.

These instructions are for replacing a 380/400V

input power cable to the Power Supply for Three -

Phase input power.

1. Remove the Power Supply cover per in-

structions found in section 5.

2. Disconnect the original input power cable

from the main input contactor and the

chassis ground connection.

3. Loosen the through - hole protector on the

back panel of the power supply. Pull the

original power cable out of the power sup-

ply.
