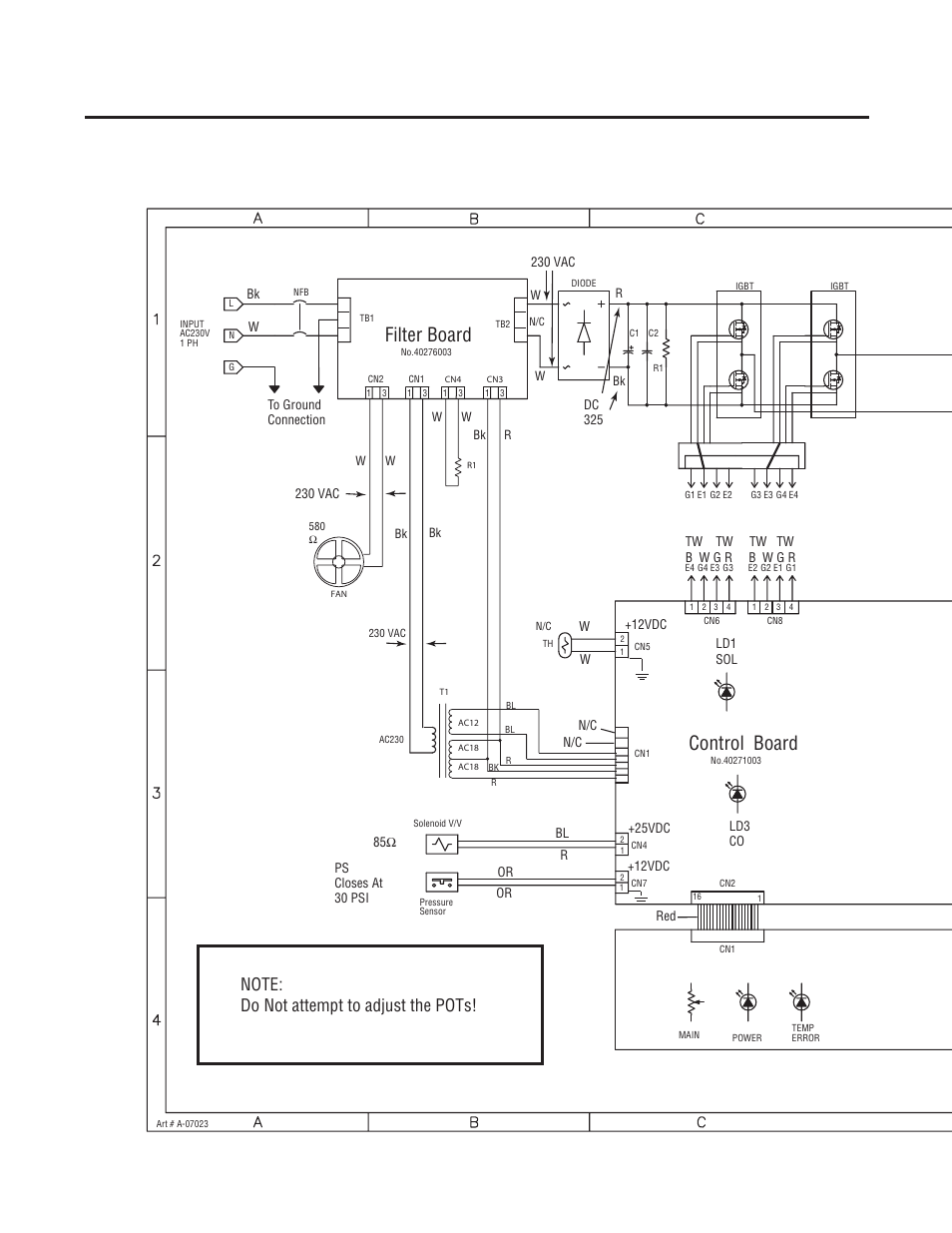

Appendix 6: system schematic rev ab, Control board, Filter board – Tweco C-35A CUTSKILL User Manual
Page 32
