M610RC
Page 7
8100 South 1300 West, West Jordan, Utah 84088 USA Tel: 801-563-0303 Fax: 801-255-2312
www.treborintl.com

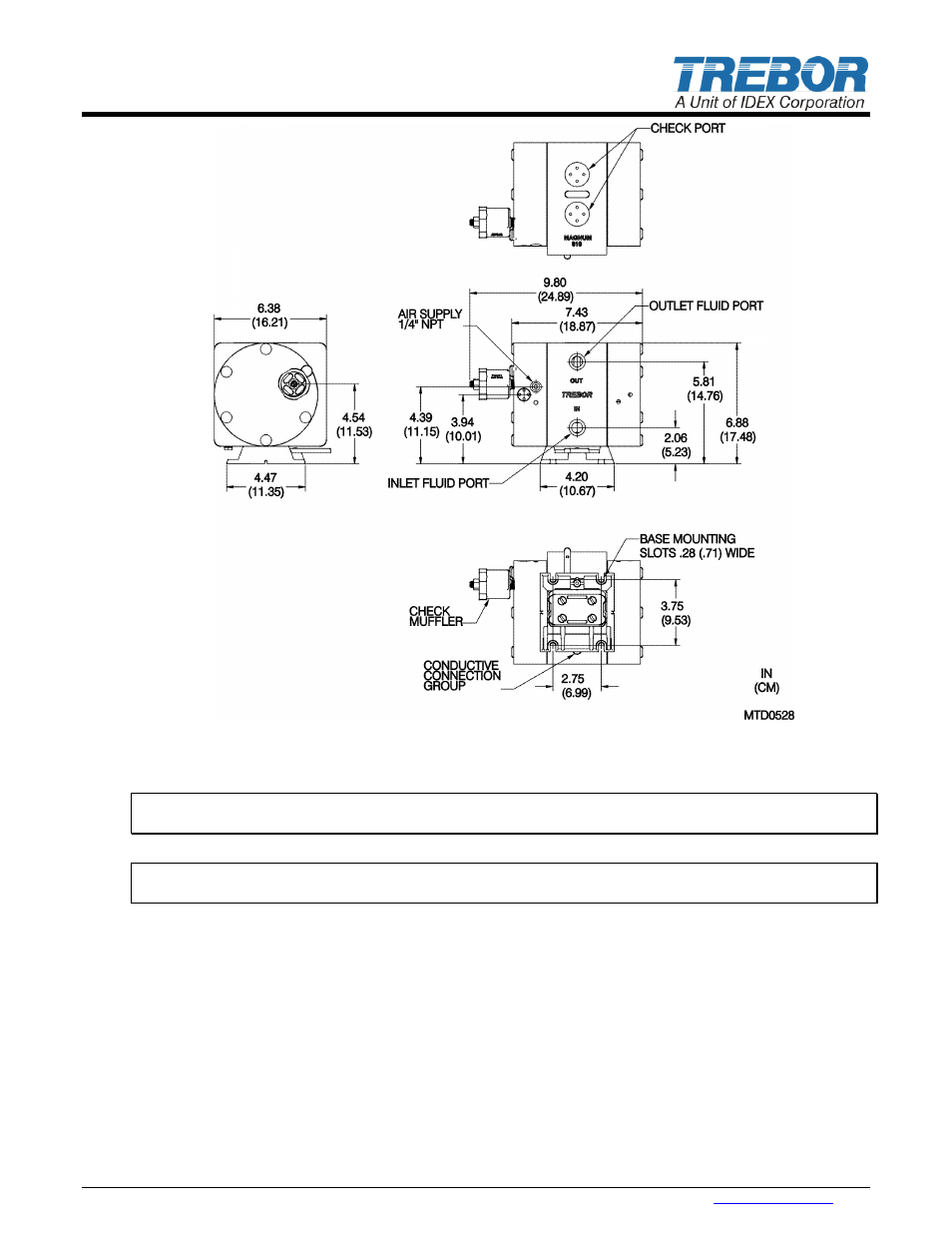

Figure 4-1
Recommended Maximum Operating Levels: 60 PSIG (.41 MPa) air supply, 110°C fluid temperature
ATTENTION: The pump should be operated with clean dry air (CDA) or nitrogen. Particulate, water and
oils in the air supply can damage the pump.
NOTE: Although extensive efforts are made to deliver pumps to our customers completely dry, new
pumps may contain residual moisture from their final DI water test.
4.4
CHECK MUFFLER OPERATION
4.4.a
Purpose
Permits pump to operate reliably in systems with a discharge flui
d “dead head” condition (discharge
port closed while pump air supply remains on), or in systems that have the pump located at an
elevation below the liquid supply level.
