M610RC Page 15
8100 South 1300 West, West Jordan, Utah 84088 USA Tel: 801-563-0303 Fax: 801-255-2312 www.treborintl.com
Shuttle Assembly (Master Head)
NOTE: Ensure that the shuttle spool moves freely inside the shuttle sleeve prior to installation.

Check the shuttle assembly making sure it has notched O-rings on each end. (See Section 6.4 for
shuttle detail.)

Insert shuttle sleeve into the shuttle bore.

Insert shuttle spool.

Insert detent.

Install shuttle cap with 2 wraps of TFE tape.
6.8.b Body Assembly

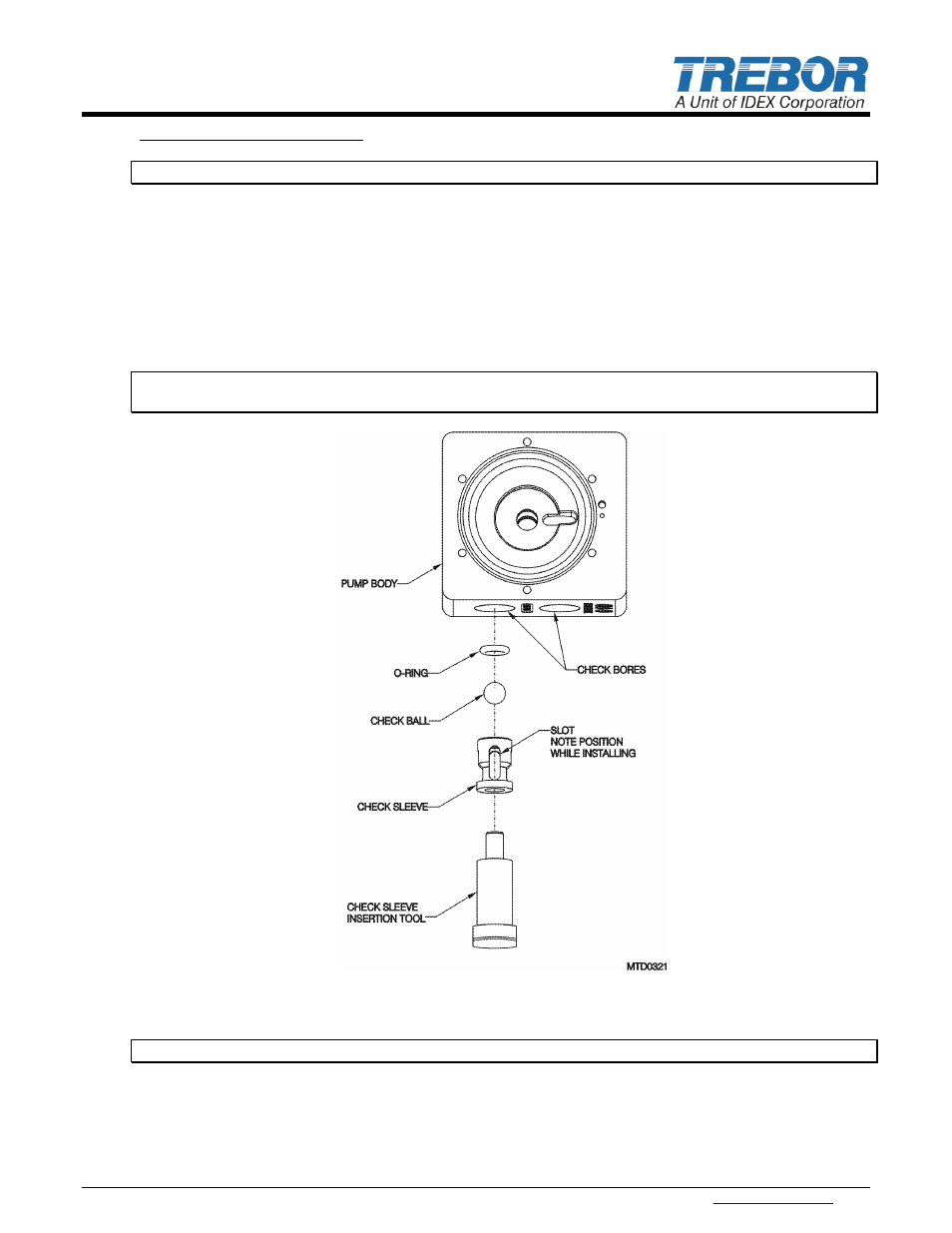

NOTE: Body must be upside down with check port extending over a table edge so that parts remain
assembled during insertion of sleeves. (See Figure 6-2.)
Figure 6-2

Insert suction sleeve, check ball and O-ring carefully into check bore.
NOTE: The suction sleeves have a shoulder diameter larger than their body diameter.

Repeat insertion process with the discharge sleeve, check ball and O-ring.

Repeat process for second check bore.

Place seals and tighten check bore caps into check bores.

Install shaft seals into shaft bore grooves.
