EVOLVE 55D PUMP OPERATION / MAINTENANCE MANUAL PAGE 7
2 OPTIONS
2.1 FLUID PORT CONNECTION OPTIONS
NOTE 1: Use O-ring to seal stainless steel or other rigid plumbing.
Available Options
A) Perlast O-Ring Adapter
B) PTFE Gasket Adapter
The Evolve 55 pump uses molded ultrapure PFA fluid port adapters. Two types of adapters
are available: one with a Perlast o-ring and one using a PTFE gasket. Both adapters end in
a ¾” pipe. The adapter can be ordered with a standard pipe or tube fitting (see below for
options) or can be customized to fit any facility piping. Figure Figure 2-1 shows the fluid port
adapters

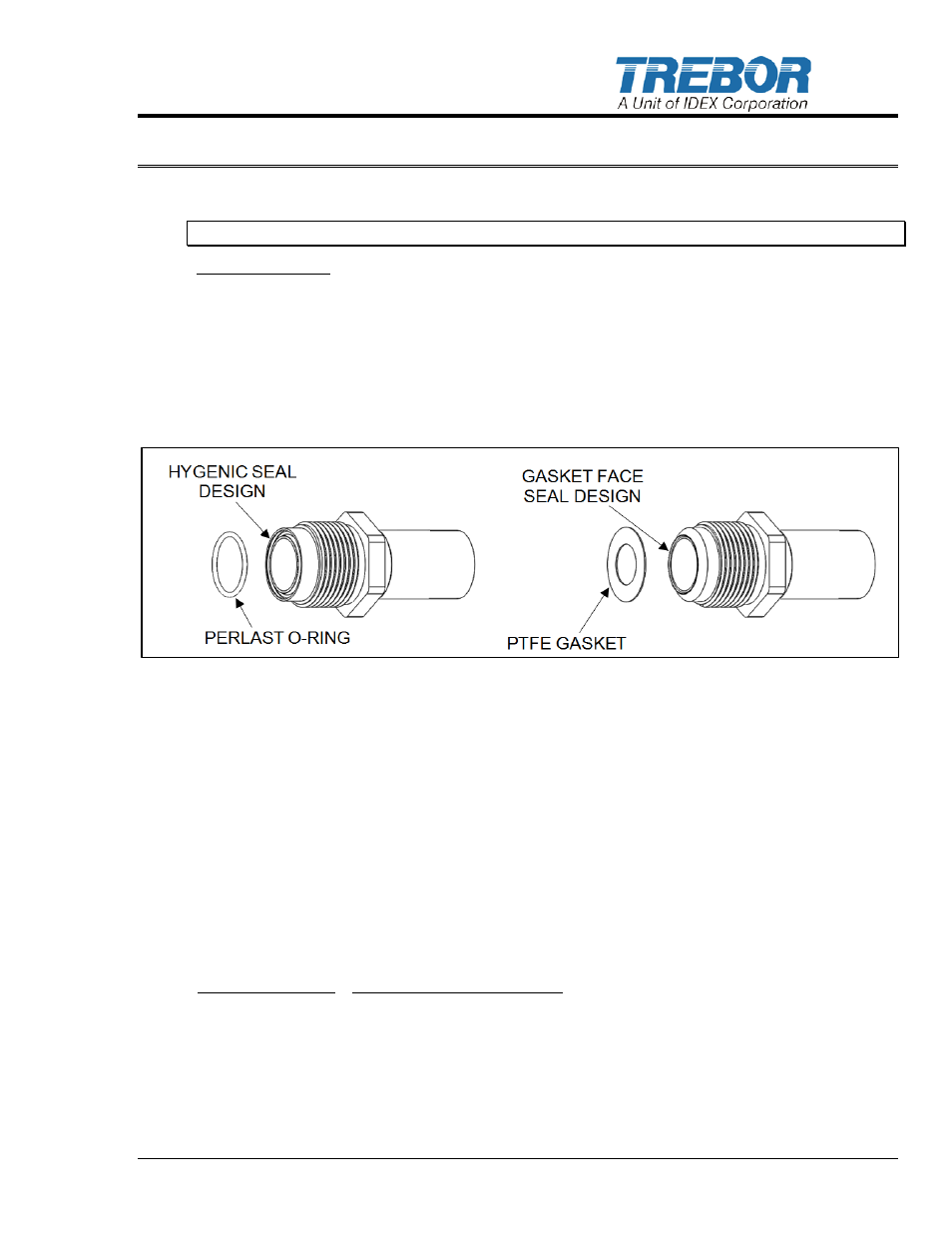

Figure 2-1: Perlast O-ring and PTFE Gasket Fluid Port Adapters
Available Pipe Connection Fittings:
• ¾” Pipe Stubout
• ¾” Tube Stubout
• ½” Flare Fitting
• ¾” Flare Fitting
• 1” Flare Fitting
• ¾” Pillar Fitting
• ¾” Female NPT Fitting
These fittings can be ordered with either the Perlast O-ring adapter or the PTFE Gasket
adapter. If additional pipe fitting types are needed, contact your sales associate. Custom
configurations are available to adapt the Evolve 55 to any facility configuration.
2.2 FLUID FITTINGS / SURGE SUPPRESSOR CONNECTION
Surge Suppressor Assembled Height: mm (IN)
MODEL SS40 373 (14.7)
MODEL SS85 435 (17.1)
MODEL SS95 356 (14.0)
