PAGE 10 EVOLVE 55D PUMP OPERATION / MAINTENANCE MANUAL
3 START-UP
• Pump air supply pressure must be regulated. (See Figure 3-2: Pressure vs. Fluid
Temperature Chart.)
• Open the fluid suction (IN) line valve, if necessary.
• Open the fluid discharge (OUT) line valve, if necessary.
• Start slowly with air regulator at low (> 20 psi) pressure setting. Increase pressure to
attain desired flow, up to the maximum rating (See Section 3.1).
• Refer to Troubleshooting, Section 5, if pump fails to start.
ATTENTION: Prolonged periods (> 5 minutes) of dry running can damage critical internal
pump parts.
CAUTION: When handling potentially dangerous fluids under pressure, the pump
and its fittings should be placed in an enclosure away from operators.
3.1 PERFORMANCE CHARTS
Pumping capacity is a function of air supply pressure and volume, suction head, suction line
restrictions, discharge head, discharge line restriction, and fluid specific gravity and
viscosity.
NOTE: Specification to be used to size regulators and control valves.

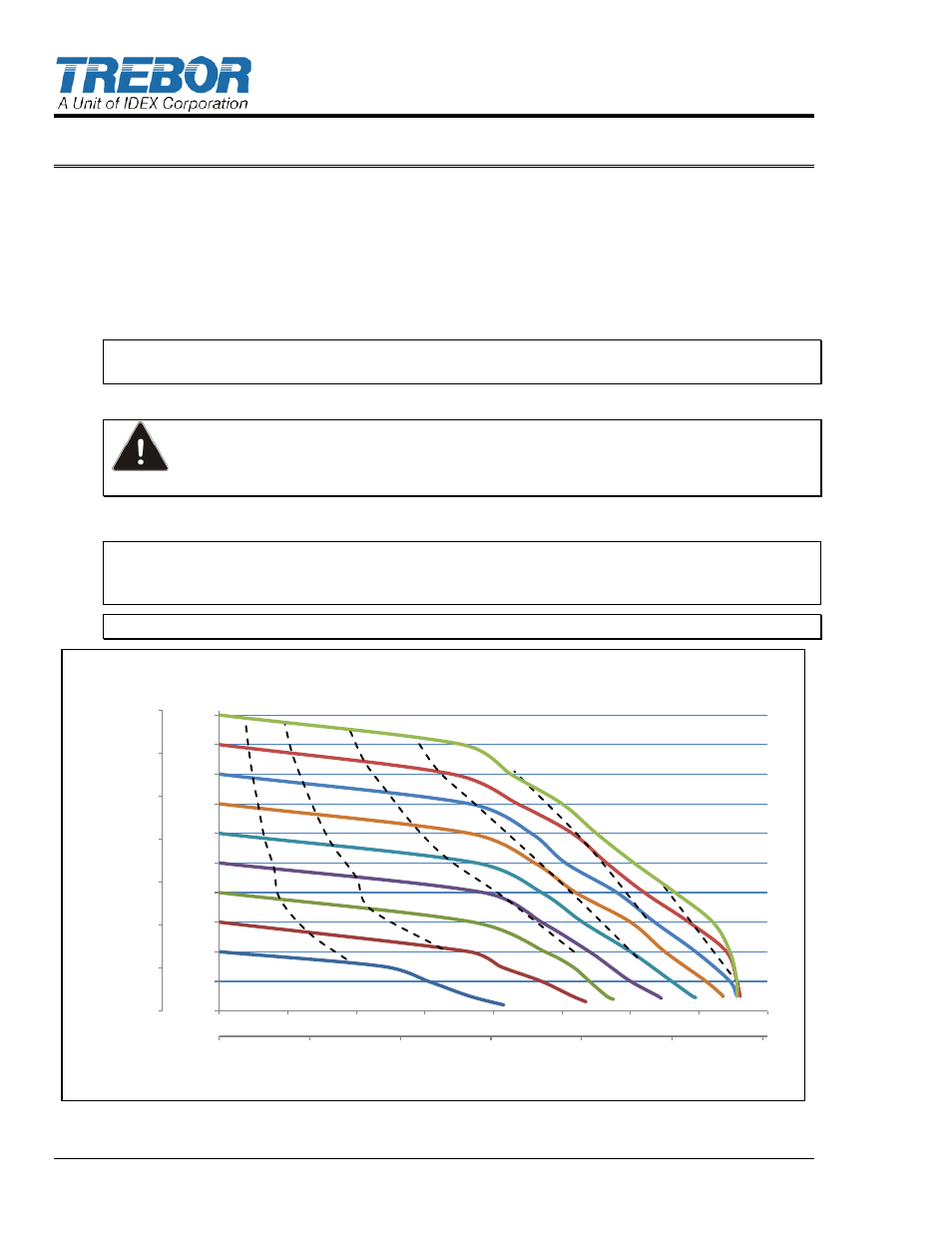

Figure 3-1: Pump Performance Curves with Air Consumption
2 SCFM 5 SCFM 10 SCFM
15 SCFM
20 SCFM
25 SCFM
0 LPM 10 LPM 20 LPM 30 LPM 40 LPM 50 LPM 60 LPM
0.00 MPa
0.10 MPa
0.20 MPa
0.30 MPa
0.40 MPa
0.50 MPa
0.60 MPa
0.70 MPa
0 PSI
10 PSI
20 PSI
30 PSI
40 PSI
50 PSI
60 PSI
70 PSI
80 PSI
90 PSI
100 PSI
0 GPM 2 GPM 4 GPM 6 GPM 8 GPM 10 GPM 12 GPM 14 GPM 16 GPM
Di
sc
ha
rg
e Pr
essu
re
Flow
Evolve 55 Pump Performance
