EVOLVE 55D PUMP OPERATION / MAINTENANCE MANUAL
PAGE 11
NOTE: Test information is based on specific conditions and limited sampling. Use for
general reference only.

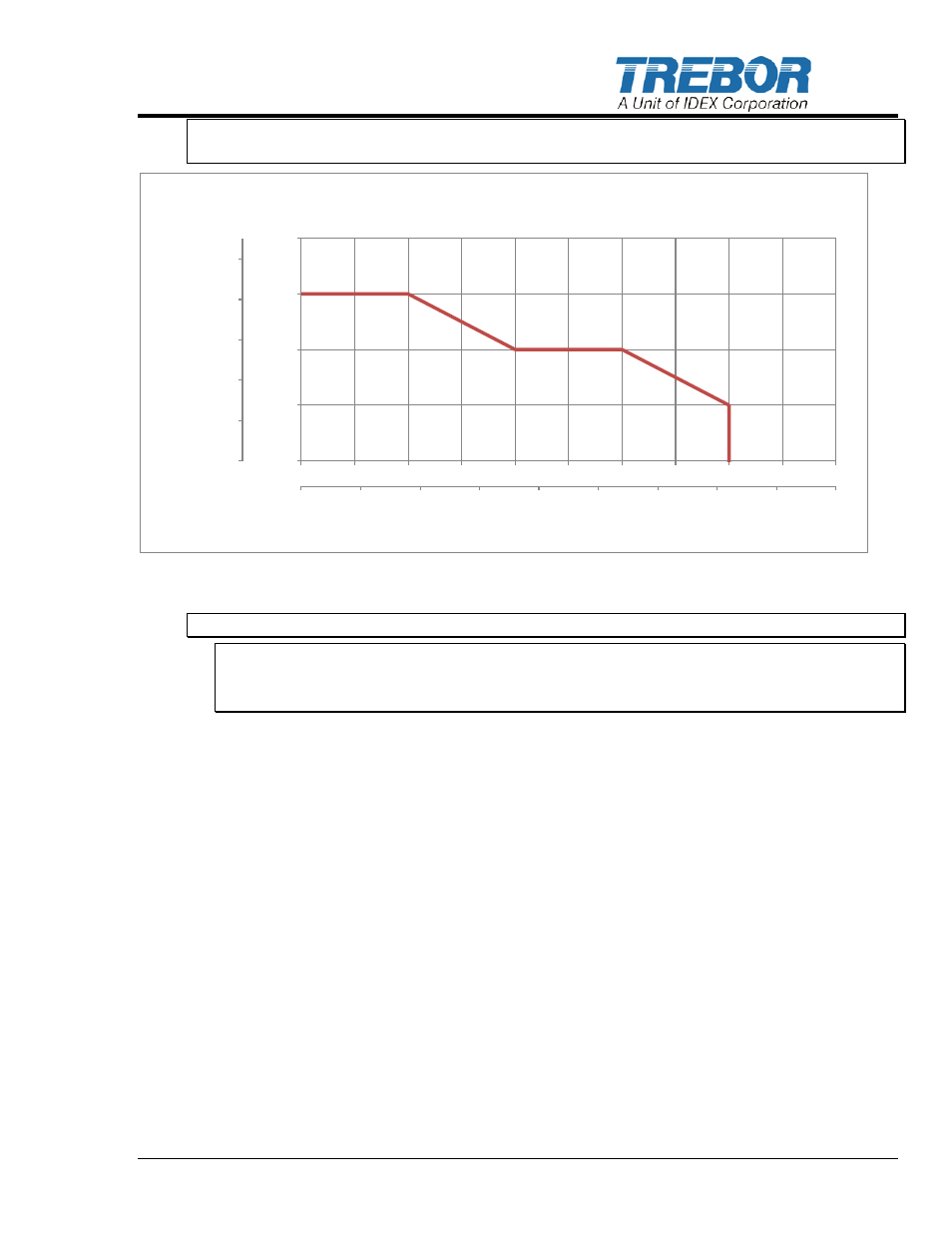

Figure 3-2: Pressure vs. Fluid Temperature Chart
Recommended Maximum Pump Operating Levels
NOTE:
1. This graph is not representative of all operating conditions – customer’s specific
application results may vary.
2. Be sure that fittings and tubing used are capable of these operating conditions.
Noise level while operating is approximately 80 dB.
