EVOLVE 55D PUMP OPERATION / MAINTENANCE MANUAL PAGE 5

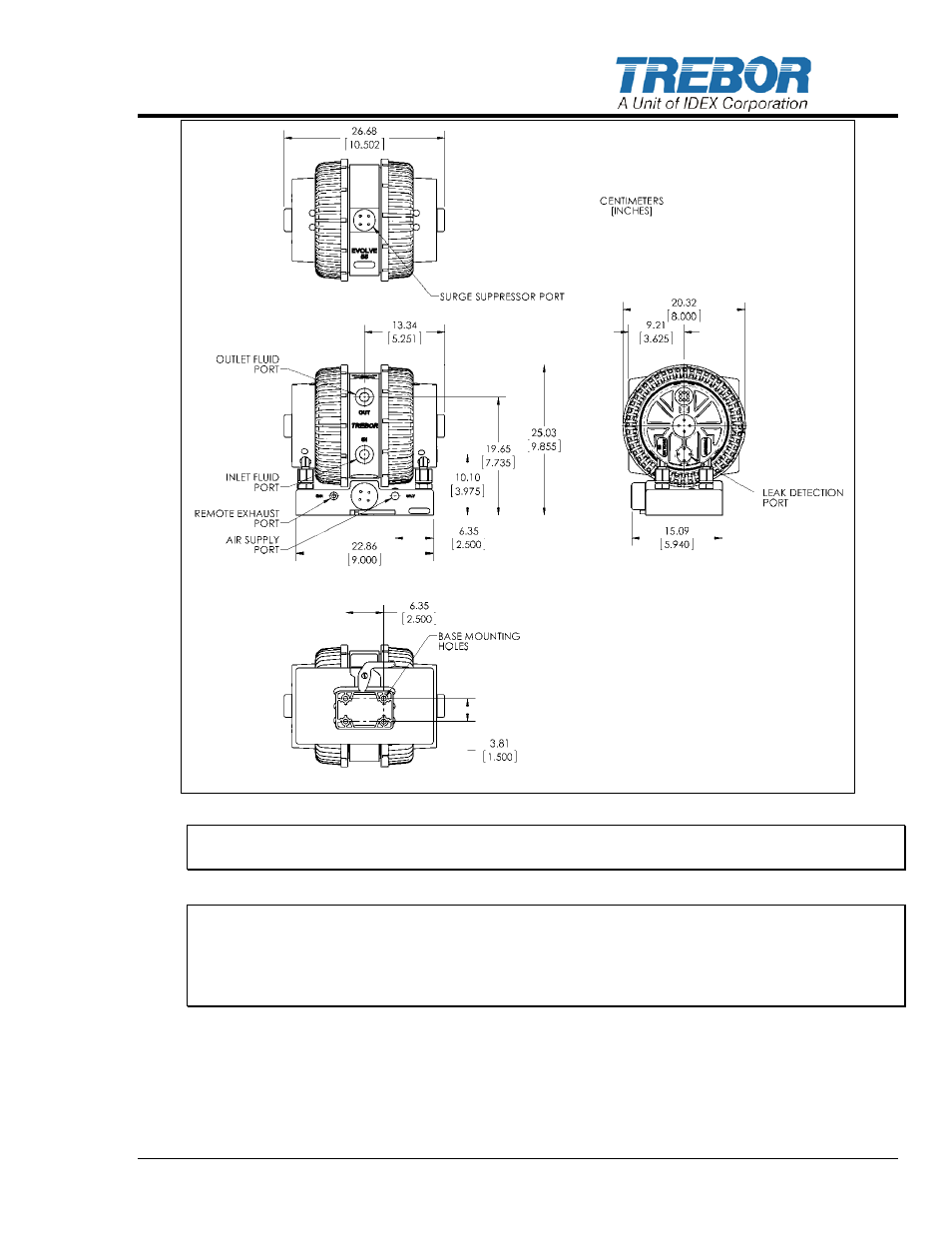

Figure 1-1: Dimensional Views
ATTENTION: The pump should be operated with clean, dry air or nitrogen. Particulate,
water and oils in the air supply can damage the pump.
NOTE:
1. It is recommended that a filter be placed on the discharge side of the pump.
2. Although extensive efforts are made to deliver pumps to our customers completely dry,
new pumps may contain residual moisture from their final DI water test.
1.3 REMOTE EXHAUST CONNECTION
Some installations may benefit from remotely exhausting air from the pump to eliminate
unwanted air turbulence or to prevent potentially damaging chemical vapors from entering
the pump air cavities.
• Remove existing Muffler Assembly from the pump base.
