Titan Neo
product description
Titan Neo COMPONENTS & OPERATION
TX-800 Transmitter Module
1. On the AirLink unit turn the power switch/volume level control clockwise to
turn the transmitter on.
2. The LCD screen will display “ON” then revert to the factory default channel
(or the channel last selected).
3. To select a channel press the “SET” button until screen flashes. Using
the UP/DOWN frequency adjustment buttons you can select the desired
channel. Press "SET" again to lock-in channel.
4. On the slave unit turn the wireless receiver module on. Press “SET” and use
the UP/DOWN frequency adjustment buttons to set the unit to the same
channel as the master unit. Press the frequency set button again to lock in
your channel selection.
5. When transmitting audio from the master to slave unit the TX indicator will
light green. The AF indicator displays audio level (flashing yellow) when user
is speaking into the microphone or music is playing. Excessive audio level is
indicated by a (flashing red) light .
For larger venues or audiences, the addition of this module allows several units
to be used in the same area without the need for speaker or signal wiring. In
this application you have a master and as many slave units as required for the
venue. The wireless AirLink module is installed in the master unit, which then
transmits any audio signal (including wireless mic, CD player or wired mic) to
the slave units, which are fitted with a UHF wireless receiver.

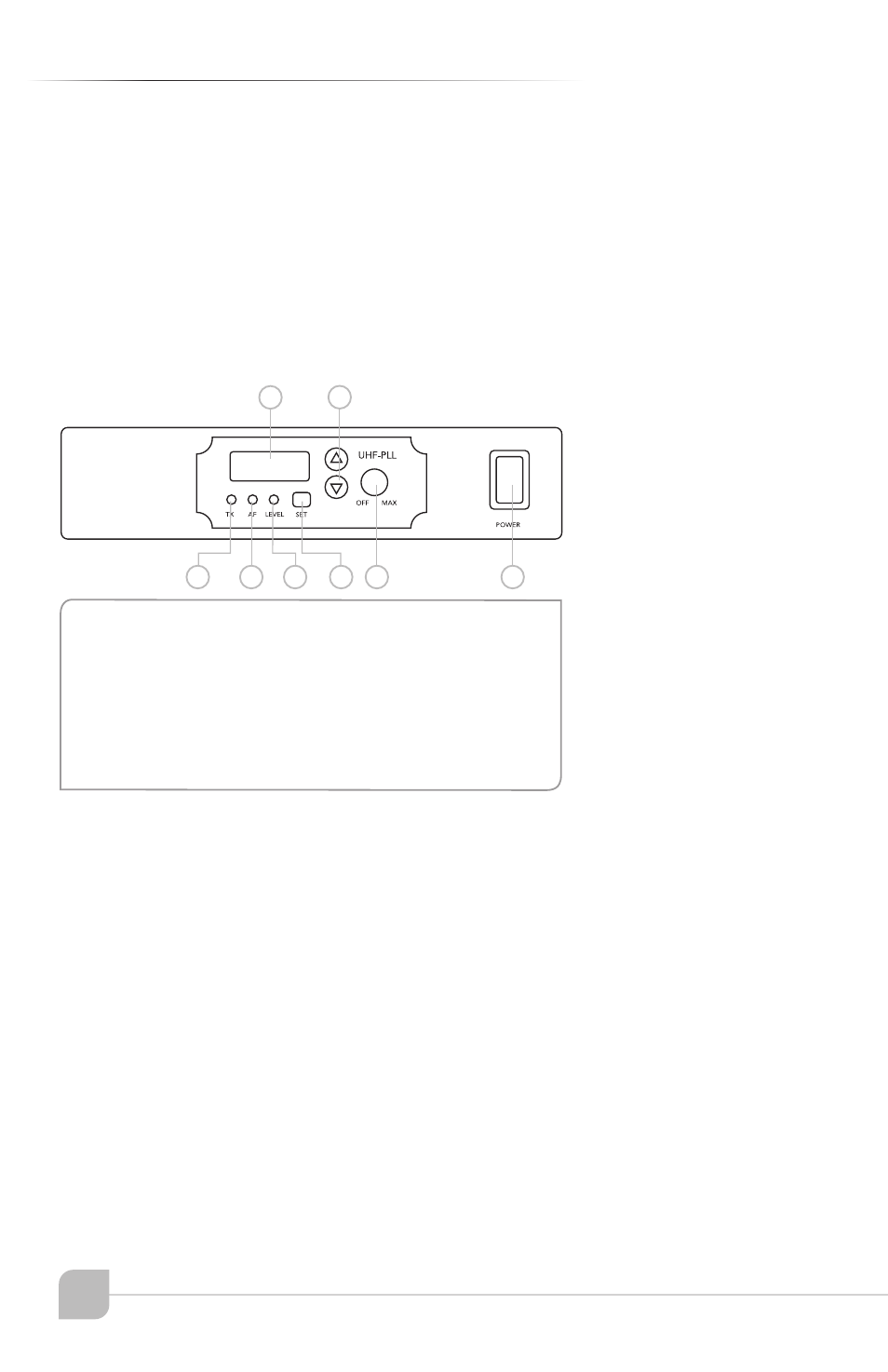

LCD Display: Ch. # or Freq. Readout
RF Transmission Indicator (GREEN)
Audio Signal Present Indicator (YELLOW)
Flash-Audio Level Being Send
(RED)
Channel "Set" Selector
Channel “Up/Down” Selector
Receiver Module: “on/off” and Master Gain
Titan Neo main Power Switch
1
2
3
4
5
6
7
8
2
1
3
6
4 7 5 8
