13
Owner’s Manual
Titan Neo COMPONENTS & OPERATION
DR-850 Dual Channel RF Receiver for Wireless Microphone
UHF-Duo
SET
OFF CH.B OFF CH.A
A B
03 04
1 2 3
4 5 6
One or two dual channel receiver modules can be installed in the Titan Neo.
Each receiver has 96 selectable channels to assure interference-free operation
and is equipped with a diversity antenna for added sensitivity.

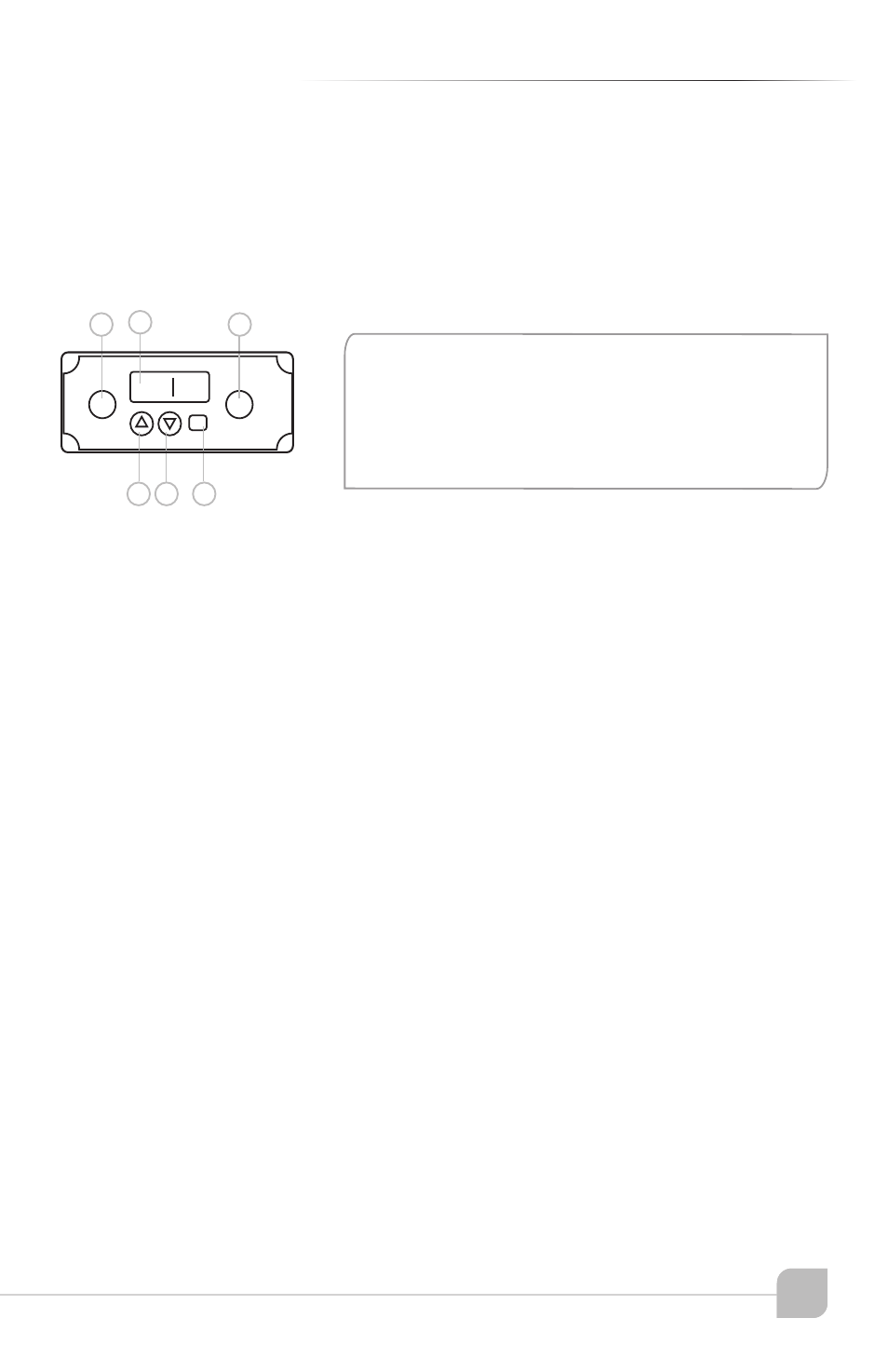

LCD Display: Ch. # or Freq. Readout
Receiver Ch.A "on/off" and Master Gain
Receiver Ch.B "on/off" and Master Gain
Channel "Up" Selector
Channel "Down" Selector
Channel/Set Selector 1
2
3
4
5
6
Operation
Tuning single channel
1. Turn receiver Ch.A or Ch.B “on”, turning volume/power switch clockwise
to 12 o’clock.
2. The receiver will display the last channel previously selected.
3. To select a different channel press the "SET" selector until the light blinks.
Using the "UP / DOWN" buttons search for the desired channel. Press the
"SET" selector again until the light stops blinking.
4. Tune the transmitter frequency to match the displayed channel on the
receiver to begin operation. The receiver will display the signal strength
of the transmitter .
•
Tuning two receivers
•
With two receiver turned on, the SET switch operates as a mode switch.
•
The first press controls functions on the "A" receiver.
•
The next press controls functions on the "B" receiver.
•
The next press sets the receivers to normal operate mode.
•
Each consecutive press will repeat the cycle.
Dual Channel Receiver
•
Tuning single receiver
