18 OHM106/156
English

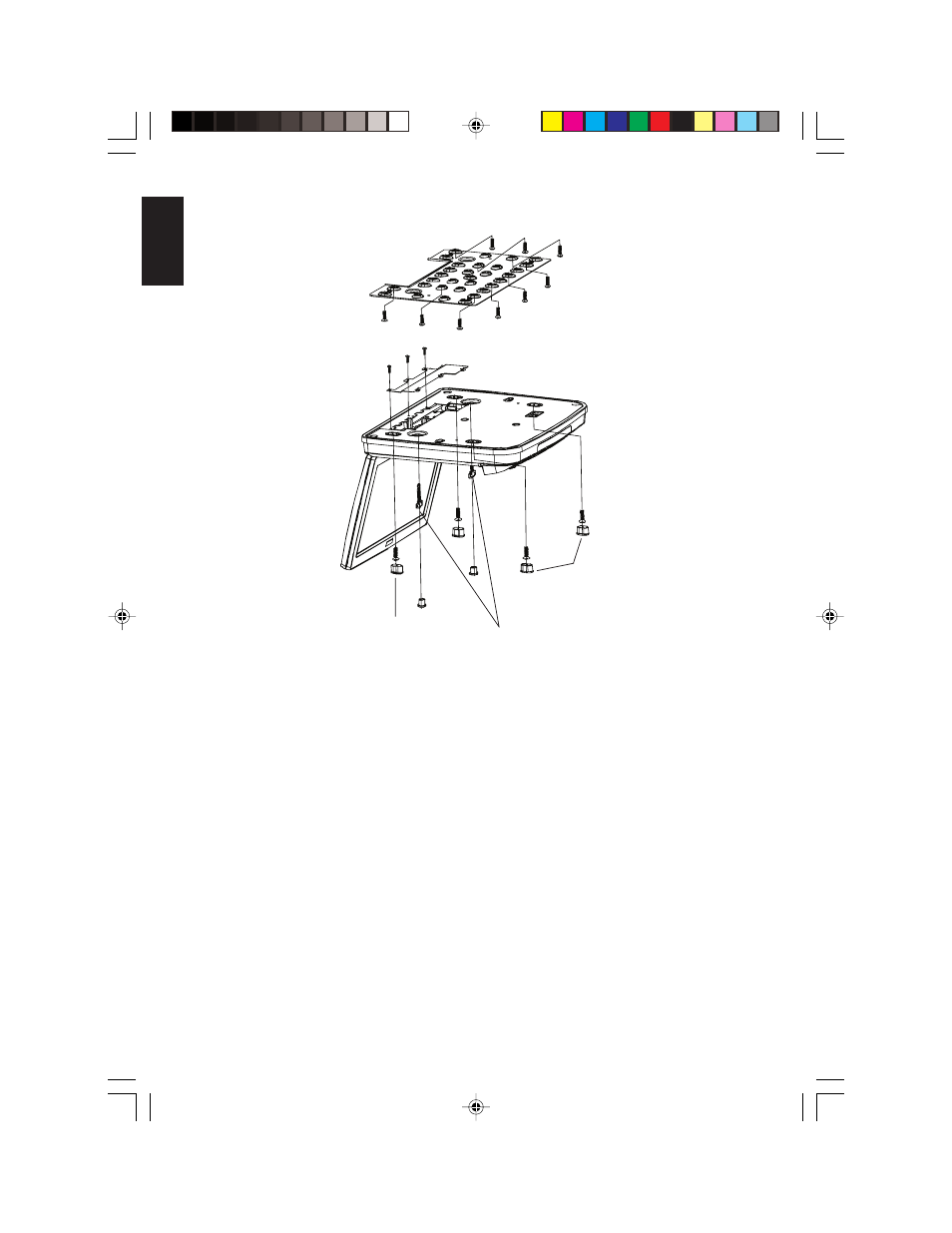

Locating all the screws and rubber caps
3. Remove the keys.
4. Cover the key holes and screws with the rubber caps provided.
5. Ground the black wire of the power harness to a clean ground spot.
Note:
Keep the ground wires from the monitor and the audio/video source as
short as possible to prevent unwanted vehicle noise.
Screws
(not included)
Ceiling bracket
EMC cover
Two keys help align the unit
Two of four rubber caps to
cover screws
One of two rubber cap to cover key holes
