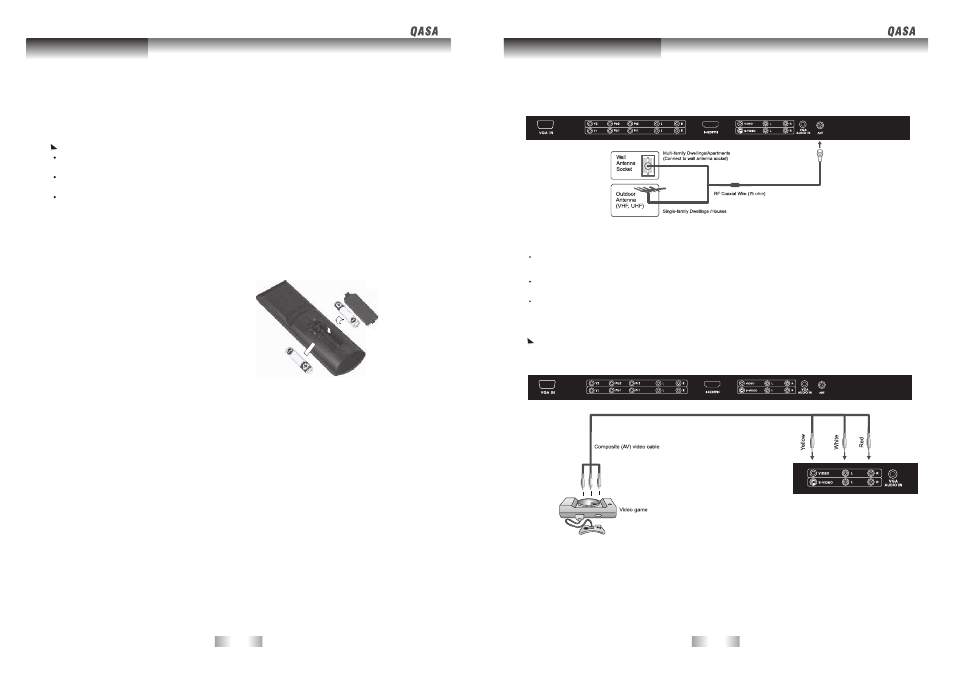

Remote Control

Connection and setup

-11-

-12-

Connect the Composite (AV) output of your AV equipment to the Composite VIDEO signal
terminal on the unit using a Composite (AV) video cable (RCA connector) as illustrated.

Composite video input is the most commonly used signal input. However, this type of input also
provides a less optimal image quality. Many video sources can only output Composite video
signals, for example, VCRs, camcorders and Video game.

Before connecting any component, please familiarise yourself with the location and type of
each input.
If incorrect connections are made, picture or color quality may be adversely affected. Please
ensure that all connectors are firmly seated.
Before connecting, turn off the power to the external devices for safety.

Connecting Composite Video Signals

Connecting Antenna

When using the remote control, aim it at remote control sensor window on the unit, If there
is an object between the remote control and the signal remote control sensor window on the
unit, the remote may not operate.

When using the remote control, please note:
Do not strike or drop the remote. Do not expose the remote control to liquids and do not place
it in humid environments.
Do not install or place the remote control in direct sunlight. The heat may damage the remote
control.
If the remote control sensor window on the unit is in direct sunlight or strong light, the remote
control may not operate normally. In this situation, change the light source or read just the angle
of your unit, or operate the remote control from a location closer to the remote control sensor
window on the display.

Using the Remote control

Batteries

Notes on Using Batteries

You will need to install the supplied batteries into the remote control to make it operate
following the instructions below.

Open the lid of the remote control battery
compartment.

Insert two size-AAA batteries.
Ensure that the batteries are inserted with the
positive and negative terminals in the correct
direction corresponding to the (+) and (-) marks
in the battery compartment.

Install the lid of the remote control battery compartment.

1.

2.

3.

The use of the wrong type of batteries may cause chemical leaks and/or explosion. Please
note the following:

Always ensure that the batteries are inserted with the positive and negative terminals in the
correct direction as shown in the battery compartment.

Different types of batteries have different characteristics. Do not mix different types.

Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or
cause chemical leaks from the old batteries.

When batteries fail to function, replace them immediately.

Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps
out of the batteries, wipe it up immediately using a dry cloth.

Due to varying storage conditions, the battery life for the batteries included with your unit
may be shortened. If the remote control is not used for a long period of time, remove the
batteries.
