The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.
5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
1. Connect an Coaxial Cable between the SPDIF jacks on the TV and the Digital Audio Input
jacks on the Digital Audio System. When a Digital Audio System is connected to the
SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with
the
volume control.
Digital Audio System's
2
2
2
22
External Connection

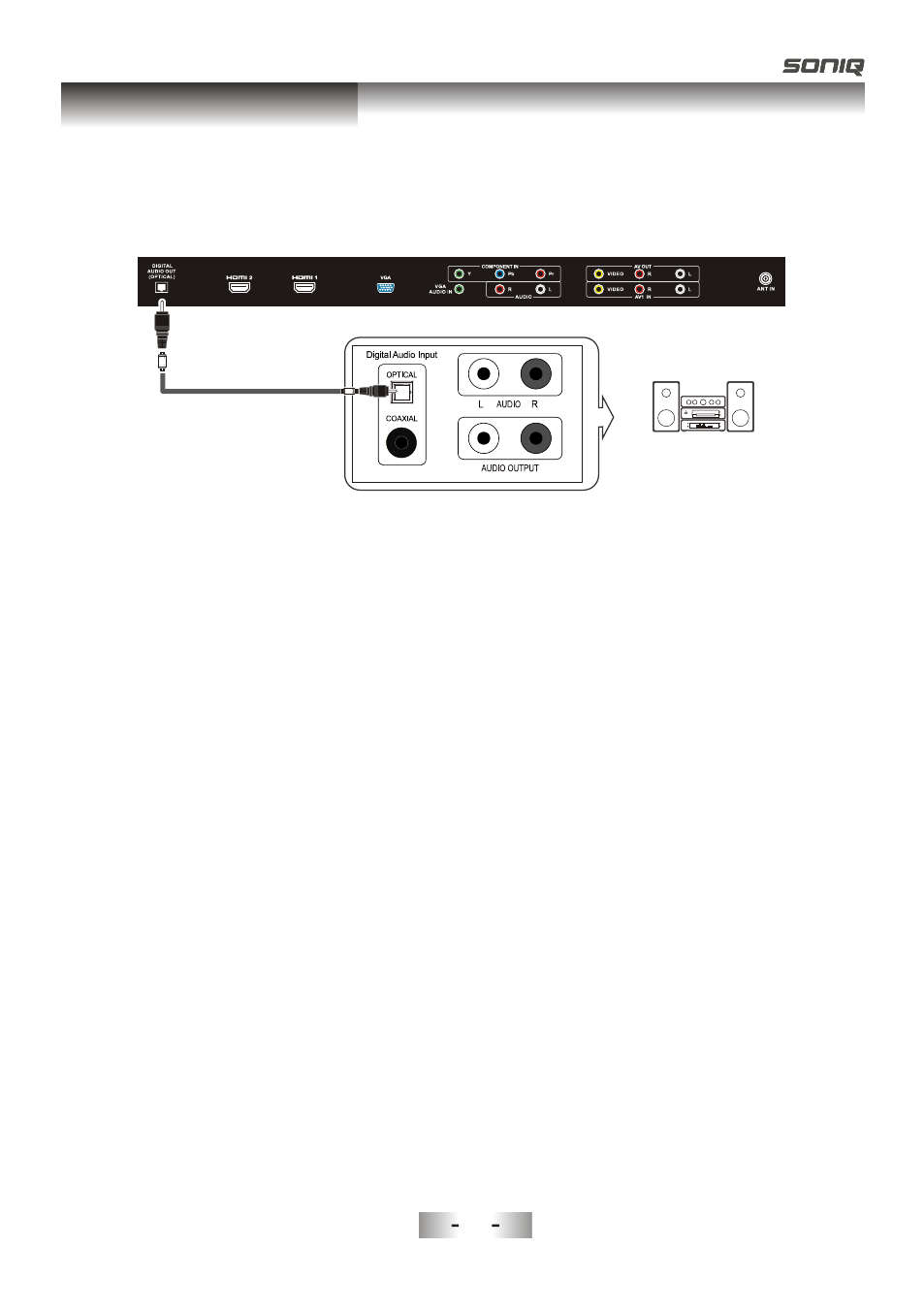

Connecting Digital Audio System
B
la
c
k
TV Rear Panel
Coaxial Cable (Not supplied)
Digital Audio System
